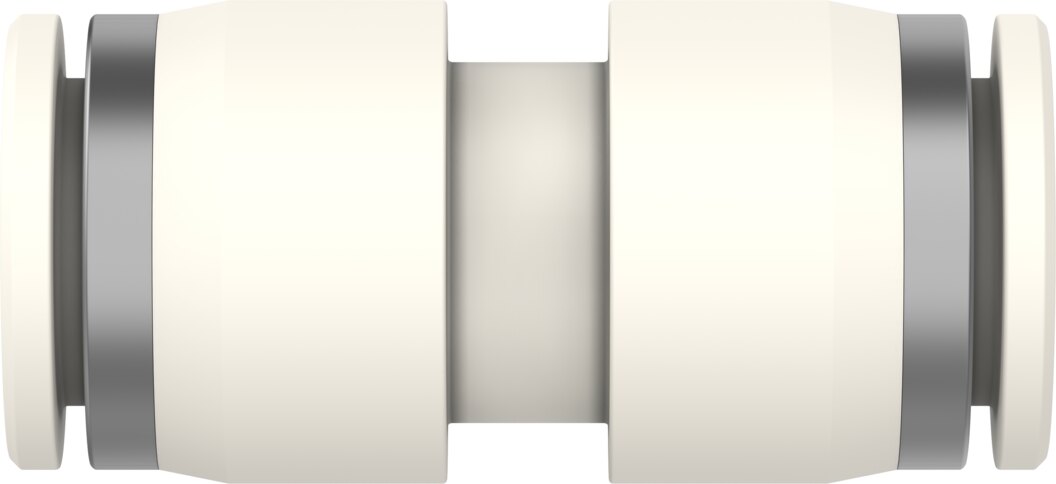

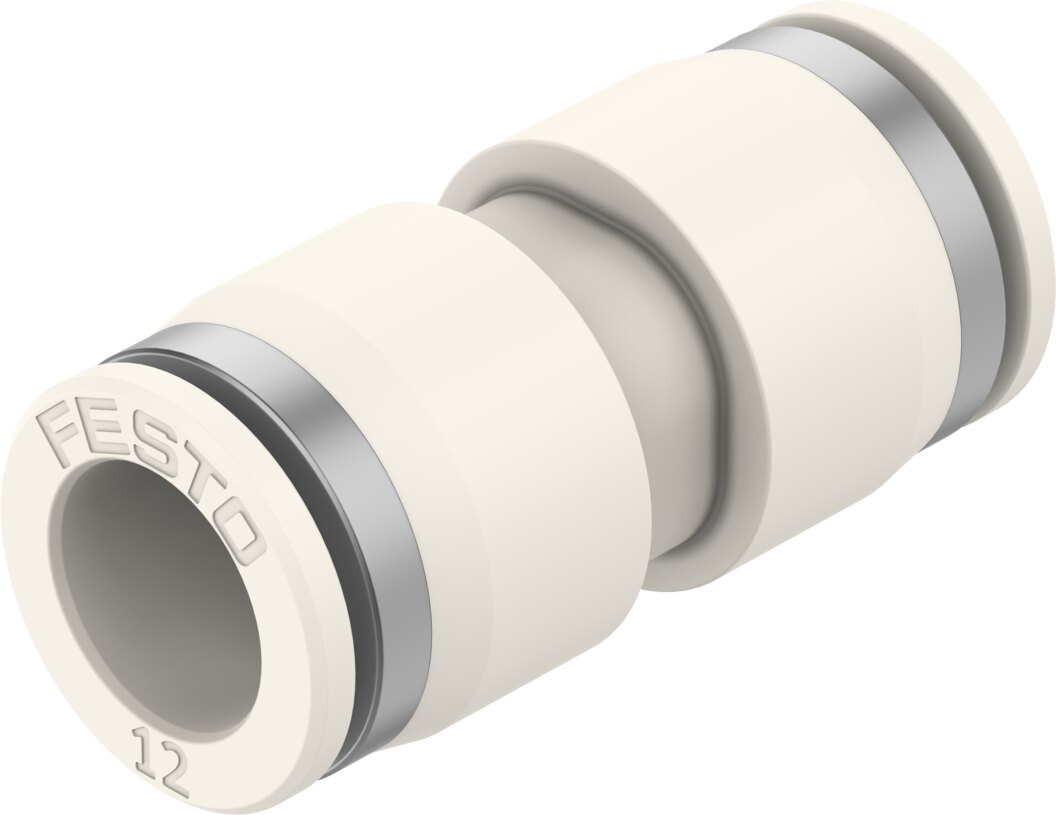

Straight push-in connector for tubing OD 12 mm, PVDF NPQO-D-Q12-E-P5 - Festo 8203319
The straight push-in connector NPQO-D-Q12-E-P5 joins two tubes with an OD of 12 mm without tools. Operating pressure -0.9 to 3 bar, ambient 0 to 60 °C. Suitable for oxygen to ASTM G 93, ISO 15001.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The straight push-in connector NPQO-D-Q12-E-P5 joins two tubes with an OD of 12 mm without tools. Operating pressure -0.9 to 3 bar, ambient 0 to 60 °C.
Benefits
- From vacuum up to 3 bar operating pressure -0.9 to 3 bar across the full temperature range
- Ambient temperature 0 to 60 °Cmedium temperature 0 to 120 °C
- Push-pull principle push the tube in, press the white release ring to remove it
- Housing made of PVDFcorrosion resistance class CRC 2
- Tubing seal made of FPM (fluoro rubber)
- LABS (PWIS) conformity to VDMA24364 zone III
Applications
NPQO-D-Q12-E-P5 is used to extend and repair tubing lines with an OD of 12 mm. Approved medium for the NPQO-D-Q12-E-P5: compressed air to ISO 8573-1:2010 [7:4:4], inert gases, carbon dioxide, air, oxygen, nitrogen..
Technical data
| Feature | Value |
|---|---|
| Type | NPQO-D-Q12-E-P5 |
| Festo part number | 8203319 |
| Nominal width | 11 mm |
| Tubing insertion depth | 22.25 mm |
| Mounting position | Any |
| Design | Straight |
| Construction | Push-pull principle |
| Operating pressure, full temperature range | -0.9 to 3 bar |
| Temperature-dependent operating pressure | -0.9 to 12 bar |
| Operating medium | compressed air to ISO 8573-1:2010 [7:4:4], inert gases, carbon dioxide, air, oxygen, nitrogen |
| Corrosion resistance class CRC | 2 - moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Food suitability | See extended material information |
| Medium temperature | 0 to 120 °C |
| Ambient temperature | 0 to 60 °C |
| Biocompatibility to standard | ISO 18562 |
| Oxygen suitability to standard | ASTM G 93, ISO 15001 |
| Max. hydrocarbon contamination level | 550 mg/m² |
| Product weight | 22.62 g |
| Pneumatic connection 1 | For tubing OD 12 mm |
| Pneumatic connection 2 | For tubing OD 12 mm |
| Release ring colour | White |
| Material note | RoHS compliant |
| Housing material | PVDF |
| Release ring material | PVDF |
| O-ring material | FPM |
| Tubing seal material | FPM |
| Tubing clamp segment material | High-alloy stainless steel |
| Support ring material | PVDF |
| Weight | 0.025 kg |
| Manufacturer | Festo |
| Hersteller-Nr | NPQO-D-Q12-E-P5 |
| EAN | 4052568659516 |
| Zolltarifnummer | 39174000 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | PVDF |
| Bauform | gerade Form |
| For hose OD [mm] | 12 |
| Nominal size DN [mm] | 11 |
| Seal material | FPM |
| Medium | Compressed air |
| Medientemperatur [°C] | 0 bis 120 |
| Betriebsdruck max [bar] | 3 |
| Temperaturbereich | 0-60 °C |
| Temperature (max.) | 60 |
