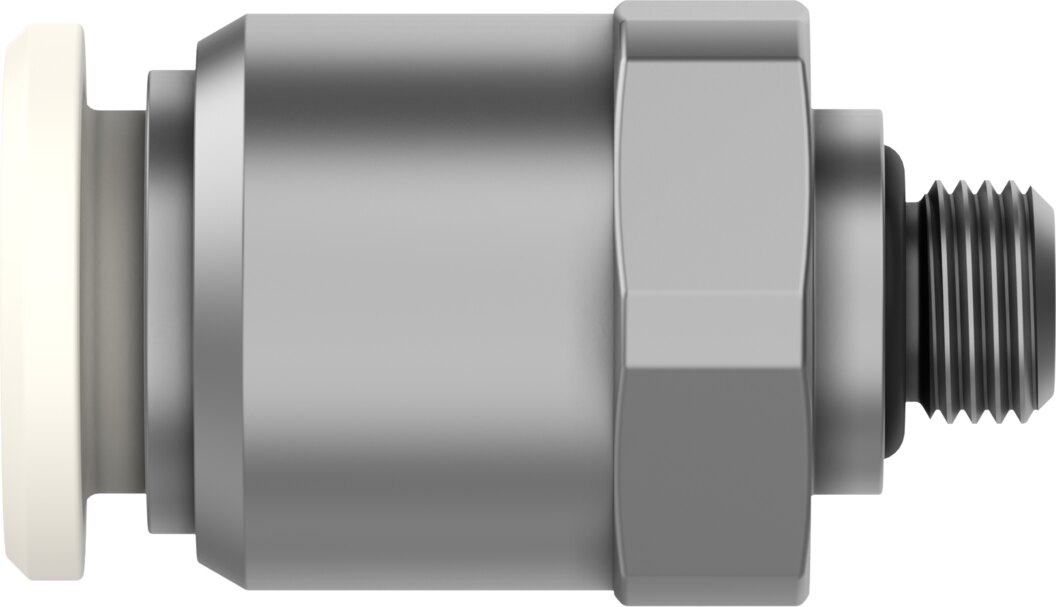

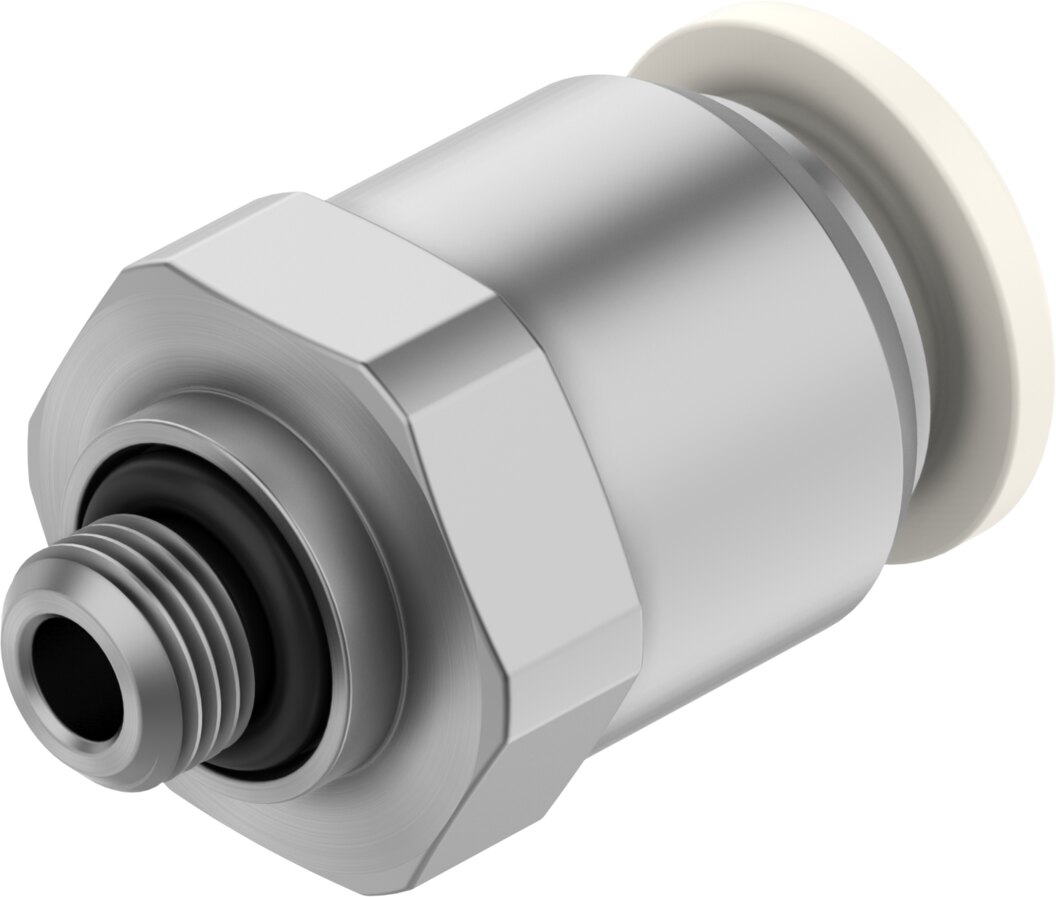

Straight push-in fitting M5 to tubing OD 6 mm, stainless steel NPQO-D-M5-Q6-P10 - Festo 8203293

Festo ✓ Original product Brand new

NPQO-D-M5-Q6-P10 is the straight transition from a M5 thread to tubing with an OD of 6 mm. Operating pressure -0.9 to 20 bar, ambient 0 to 120 °C. Suitable for oxygen to ASTM G 93, ISO 15001.

Net
€11.43
excl. VAT
Item FES-8203293
Manufacturer no. NPQO-D-M5-Q6-P10
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

NPQO-D-M5-Q6-P10 is the straight transition from a M5 thread to tubing with an OD of 6 mm. Operating pressure -0.9 to 20 bar, ambient 0 to 120 °C.

Benefits

  • From vacuum up to 20 bar operating pressure -0.9 to 20 bar across the full temperature range
  • Tubing seal made of FPM (fluoro rubber)
  • O-ring on the screw-in stud made of FPM
  • LABS (PWIS) conformity to VDMA24364 zone III
  • Suitable for oxygen to ASTM G 93, ISO 15001
  • Biocompatible to ISO 18562

Applications

Typical locations for the NPQO-D-M5-Q6-P10 are valves, cylinders and service units with a M5 port. The NPQO-D-M5-Q6-P10 works with compressed air to ISO 8573-1:2010 [7:4:4], inert gases, carbon dioxide, air, oxygen, nitrogen..

Technical data

FeatureValue
TypeNPQO-D-M5-Q6-P10
Festo part number8203293
Nominal width2.5 mm
Tubing insertion depth15.6 mm
Seal type on screw-in studO-ring
Mounting positionAny
DesignStraight
ConstructionPush-pull principle
Operating pressure, full temperature range-0.9 to 20 bar
Operating mediumcompressed air to ISO 8573-1:2010 [7:4:4], inert gases, carbon dioxide, air, oxygen, nitrogen
Corrosion resistance class CRC2 - moderate corrosion stress
LABS (PWIS) conformityVDMA24364 zone III
Food suitabilitySee extended material information
Medium temperature0 to 120 °C
Ambient temperature0 to 120 °C
Biocompatibility to standardISO 18562
Oxygen suitability to standardASTM G 93, ISO 15001
Max. hydrocarbon contamination level550 mg/m²
Max. tightening torque2.5 Nm
Nominal tightening torque2.25 Nm
Tolerance of nominal tightening torque± 10 %
Product weight7.41 g
Pneumatic connection 1Male thread M5
Pneumatic connection 2For tubing OD 6 mm
Release ring colourWhite
Screw-in stud materialHigh-alloy stainless steel
Material noteRoHS compliant
Housing materialHigh-alloy stainless steel
Thread seal materialFPM
Release ring materialPVDF
O-ring materialFPM
Tubing seal materialFPM
Tubing clamp segment materialHigh-alloy stainless steel
Support ring materialPVDF
Weight0.009 kg
ManufacturerFesto
Hersteller-NrNPQO-D-M5-Q6-P10
EAN4052568659158
Zolltarifnummer73072910
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialStainless steel
Bauformgerade Form
ThreadM5
For hose OD [mm]6
Nominal size DN [mm]2,5
Seal materialFPM
MediumCompressed air
Thread typeExternal thread
Medientemperatur [°C]0 bis 120
Betriebsdruck max [bar]20
Temperature (max.)120
