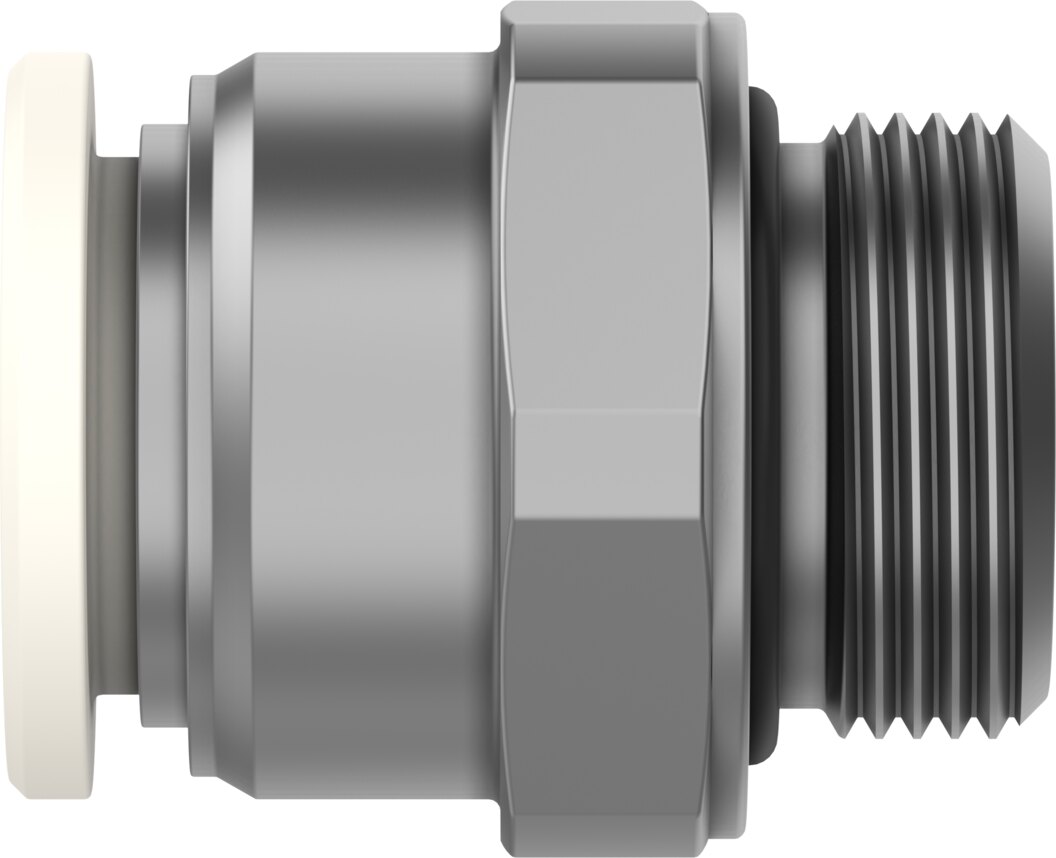

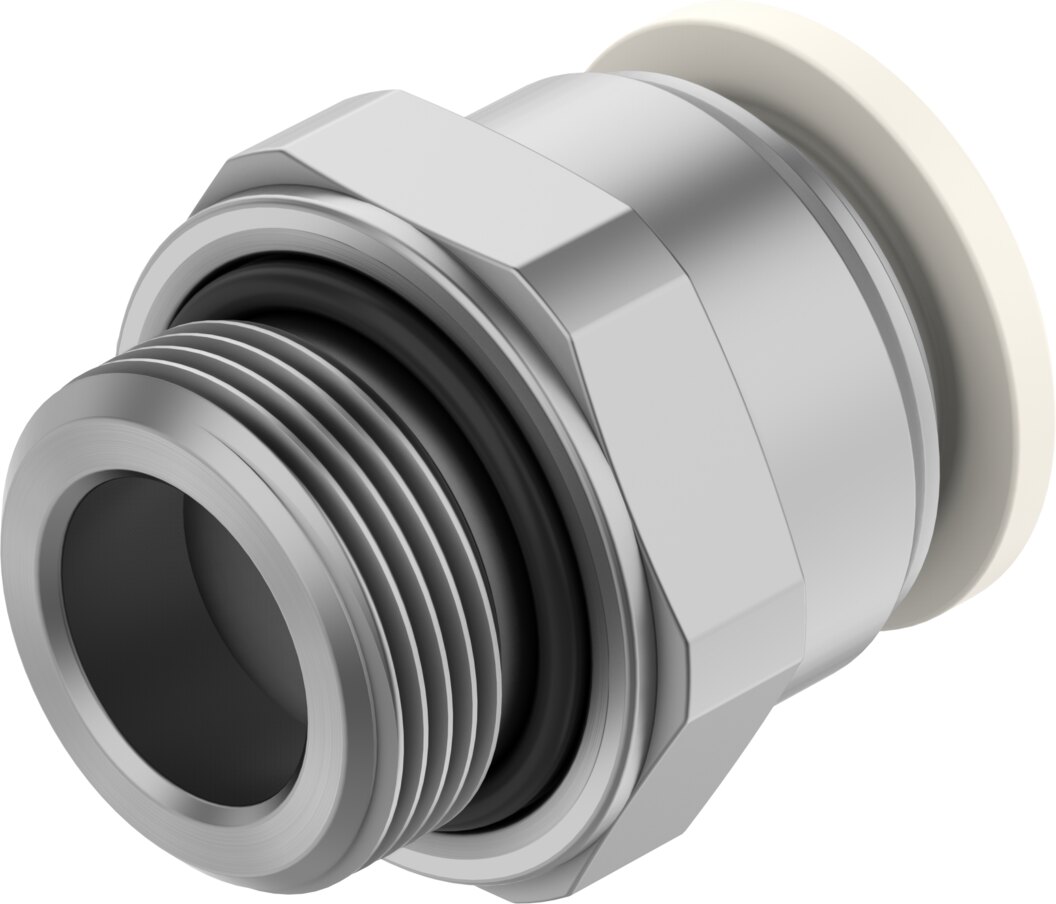

Straight push-in fitting G3/8 to tubing OD 12 mm, stainless steel NPQO-D-G38-Q12-P5 - Festo 8203301

Festo ✓ Original product Brand new

The straight push-in fitting NPQO-D-G38-Q12-P5 connects tubing with an OD of 12 mm directly to a G3/8 port. Operating limits: -0.9 to 20 bar and 0 to 120 °C. The housing is made of high-alloy stainless steel, corrosion resistance class CRC 2.

Net
€22.57
excl. VAT
Item FES-8203301
Manufacturer no. NPQO-D-G38-Q12-P5
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The straight push-in fitting NPQO-D-G38-Q12-P5 connects tubing with an OD of 12 mm directly to a G3/8 port. Operating limits: -0.9 to 20 bar and 0 to 120 °C.

Benefits

  • From vacuum up to 20 bar operating pressure -0.9 to 20 bar across the full temperature range
  • LABS (PWIS) conformity to VDMA24364 zone III
  • Suitable for oxygen to ASTM G 93, ISO 15001
  • Biocompatible to ISO 18562
  • Nominal width 10.3 mm
  • Nominal tightening torque 9 Nm (± 10 %)

Applications

Typical locations for the NPQO-D-G38-Q12-P5 are valves, cylinders and service units with a G3/8 port. The NPQO-D-G38-Q12-P5 works with compressed air to ISO 8573-1:2010 [7:4:4], inert gases, carbon dioxide, air, oxygen, nitrogen..

Technical data

FeatureValue
TypeNPQO-D-G38-Q12-P5
Festo part number8203301
Nominal width10.3 mm
Tubing insertion depth22 mm
Seal type on screw-in studO-ring
Mounting positionAny
DesignStraight
ConstructionPush-pull principle
Operating pressure, full temperature range-0.9 to 20 bar
Operating mediumcompressed air to ISO 8573-1:2010 [7:4:4], inert gases, carbon dioxide, air, oxygen, nitrogen
Corrosion resistance class CRC2 - moderate corrosion stress
LABS (PWIS) conformityVDMA24364 zone III
Food suitabilitySee extended material information
Medium temperature0 to 120 °C
Ambient temperature0 to 120 °C
Biocompatibility to standardISO 18562
Oxygen suitability to standardASTM G 93, ISO 15001
Max. hydrocarbon contamination level550 mg/m²
Max. tightening torque10 Nm
Nominal tightening torque9 Nm
Tolerance of nominal tightening torque± 10 %
Product weight28.46 g
Pneumatic connection 1Male thread G3/8
Pneumatic connection 2For tubing OD 12 mm
Release ring colourWhite
Screw-in stud materialHigh-alloy stainless steel
Material noteRoHS compliant
Housing materialHigh-alloy stainless steel
Thread seal materialFPM
Release ring materialPVDF
O-ring materialFPM
Tubing seal materialFPM
Tubing clamp segment materialHigh-alloy stainless steel
Support ring materialPVDF
Weight0.03 kg
ManufacturerFesto
Hersteller-NrNPQO-D-G38-Q12-P5
EAN4052568659332
Zolltarifnummer73072910
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialStainless steel
Bauformgerade Form
ThreadG 3/8
For hose OD [mm]12
Nominal size DN [mm]10,3
Seal materialFPM
MediumCompressed air
Thread typeExternal thread
Medientemperatur [°C]0 bis 120
Betriebsdruck max [bar]20
Temperature (max.)120
