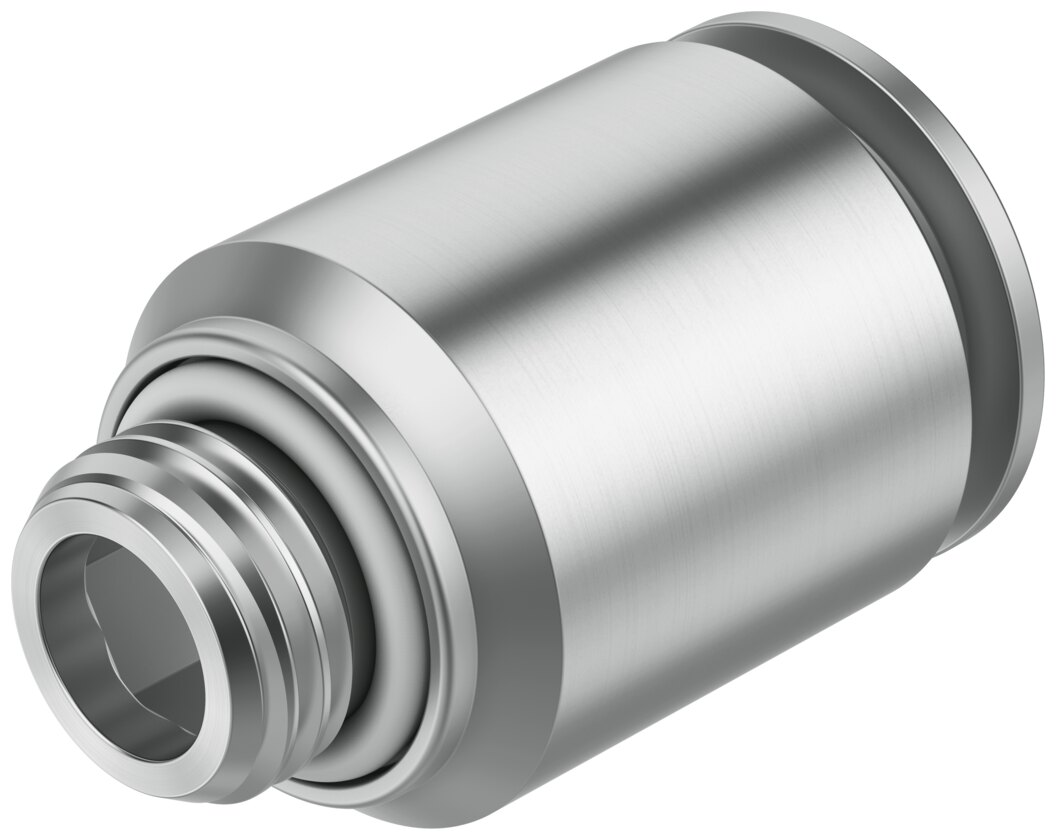

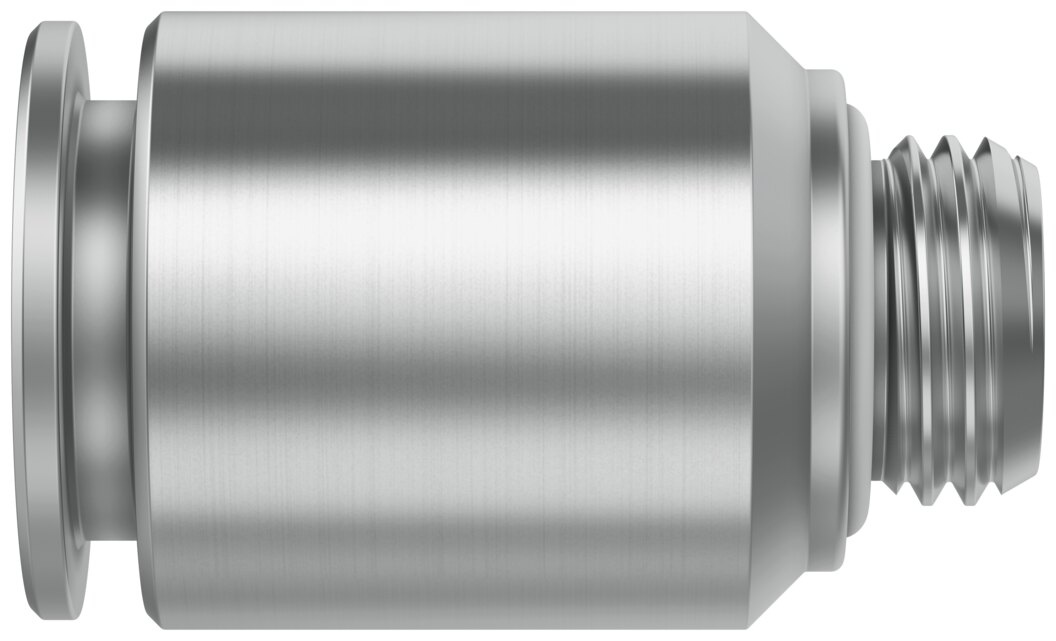

Push-in fitting chemically nickel-plated brass male thread G1/8 to tubing OD 10 mm NPQH-DK-G18-Q10-P10 - Festo 8114985
Push-in fitting NPQH-DK-G18-Q10-P10 for fast tubing connections, male thread G1/8 to tubing OD 10 mm. Operating pressure -0.95 to 20 bar, covering vacuum and positive pressure. Housing made of chemically nickel-plated brass, tubing seal made of FPM. Corrosion resistance class 3. price per piece.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The push-in fitting NPQH-DK-G18-Q10-P10 screws in via its male thread G1/8 and leads plastic tubing with OD 10 mm away in a straight line. To connect, the 10 mm tubing is simply pushed in (push-pull principle), to release, the release ring is pressed.
Benefits
- Vacuum and pressure operating pressure -0.95 to 20 bar across the full temperature range
- Temperature range ambient temperature 0 to 150 °C
- Corrosion protection corrosion resistance class CRC 3 - high corrosion stress
- Materials housing and release ring made of chemically nickel-plated brass, clamping segment made of high-alloy stainless steel, tubing seal and thread seal made of FPM, retaining ring and support ring made of PEI
- Food industry food compatibility to NSF/ANSI 169, certificate NSF C0523185
- Nominal width 6 mm
Application
Application of NPQH-DK-G18-Q10-P10: on valve terminals, drives and manifolds with easily accessible threaded ports. Permitted media for NPQH-DK-G18-Q10-P10: compressed air to ISO 8573-1:2010 [7:-:-] or liquid, ice-free water. Lubricated operation is possible. Any mounting position is allowed..
Technical data
| Type | NPQH-DK-G18-Q10-P10 |
|---|---|
| Festo part number | 8114985 |
| Size | Standard |
| Nominal width | 6 mm |
| Tubing insertion depth | 18.3 mm |
| Seal type on threaded stud | sealing ring |
| Mounting position | any |
| Shape | straight |
| Design | push-pull principle |
| Operating pressure across the full temperature range | -0.95 to 20 bar |
| Certificate issuing body | NSF C0523185 |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:-:-], water (liquid, ice-free) |
| Note on operating medium | Lubricated operation possible |
| Corrosion resistance class CRC | 3 - high corrosion stress |
| PWIS (LABS) conformity | VDMA24364-B1/B2-L |
| Cleanroom suitability to ISO 14644-14 | Class 4 to ISO 14644-1 |
| Food compatibility | see declaration of conformity, NSF/ANSI 169 |
| Ambient temperature | 0 to 150 °C |
| Nominal tightening torque | 6 Nm |
| Tolerance of nominal tightening torque | ± 20 % |
| Pneumatic connection 1 | Male thread G1/8 |
| Pneumatic connection 2 | For tubing OD 10 mm |
| Release ring colour | silver |
| Material note | RoHS compliant |
| Housing material | Chemically nickel-plated brass |
| Thread seal material | FPM |
| Retaining ring material | PEI |
| Release ring material | Chemically nickel-plated brass |
| Tube seal material | FPM |
| Tube clamping segment material | High-alloy stainless steel |
| Support ring material | PEI |
| Weight per piece | 17 g |
| Weight | 0.017 kg |
| Manufacturer | Festo |
| Hersteller-Nr | NPQH-DK-G18-Q10-P10 |
| EAN | 4052568607234 |
| Zolltarifnummer | 74122000 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | Brass |
| Bauform | gerade Form |
| Thread | G 1/8 |
| For hose OD [mm] | 10 |
| Nominal size DN [mm] | 6 |
| Size BG | Standard |
| Seal material | FPM |
| Medium | Compressed air, water |
| Thread type | External thread |
| Norm | NSF/ANSI 169 |
| Series | NPQH |
| Betriebsdruck max [bar] | 20 |
| Pneumatic connection | G1/8 |
| Temperaturbereich | 0-150 °C |
| Temperature (max.) | 150 |
