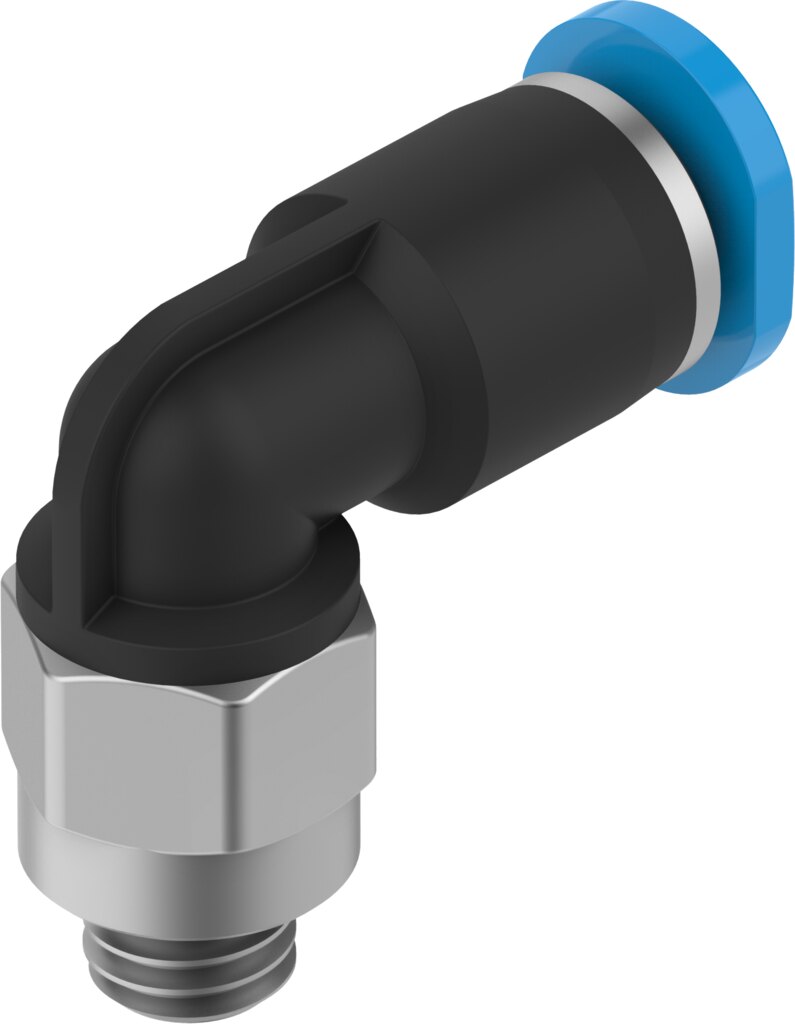

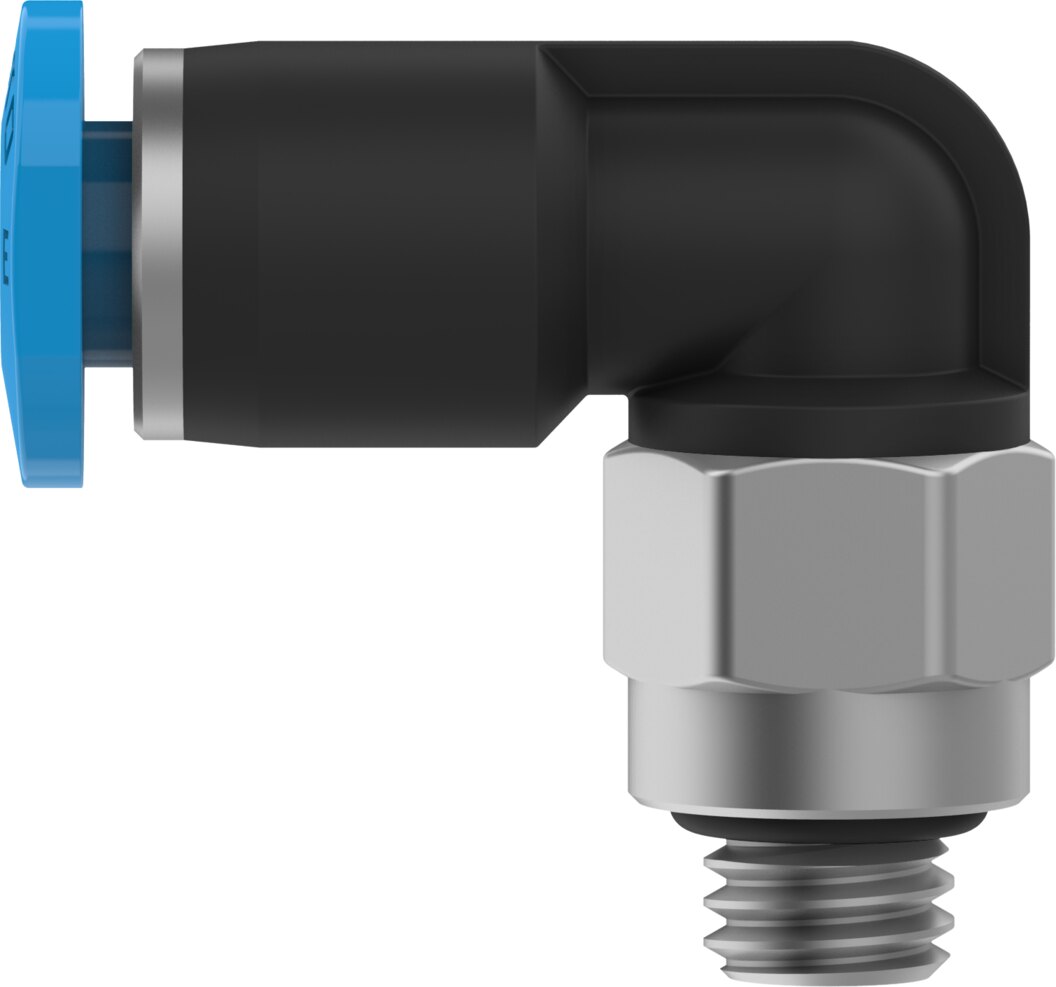

Push-in fitting NPQE-L-M5-Q4-F1A-P10 - Festo 8158775
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Size | Mini |
|---|---|
| Nominal size | 2.3 mm |
| Type of seal on screwed plug | Sealing ring |
| Mounting position | Any |
| Design | L-shape |
| Size of pack | 10 |
| Operating pressure complete temperature range | -0.95 ... 8 bar |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Suitability for the production of Li-ion batteries | Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Cleanroom suitability, measured according to ISO 14644-14 | Class 4 according to ISO 14644-1 |
| Ambient temperature | -5 ... 60 °C |
| Nominal torque | 0.8 Nm |
| Tolerance for nominal tightening torque | ±5% |
| Product weight | 3.2 g |
| Type of mounting | External hexagon, size 8 mm |
| Pneumatic connection, port 1 | Male thread M5 |
| Pneumatic connection, port 2 | For tubing outside diameter of 4 mm |
| Colour of release ring | Blue |
| Note on materials | RoHS compliant |
| Material housing | PBT, High-alloy stainless steel |
| Material thread seal | NBR, High-alloy stainless steel |
| Material release ring | POM |
| Material o-ring | NBR |
| Material tubing seal | NBR |
| Material tubing clamp component | High-alloy stainless steel |
| Weight | 0.004 kg |
| Manufacturer | Festo |
| Hersteller-Nr | NPQE-L-M5-Q4-F1A-P10 |
| EAN | 4052568599027 |
| Zolltarifnummer | 73072910 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
