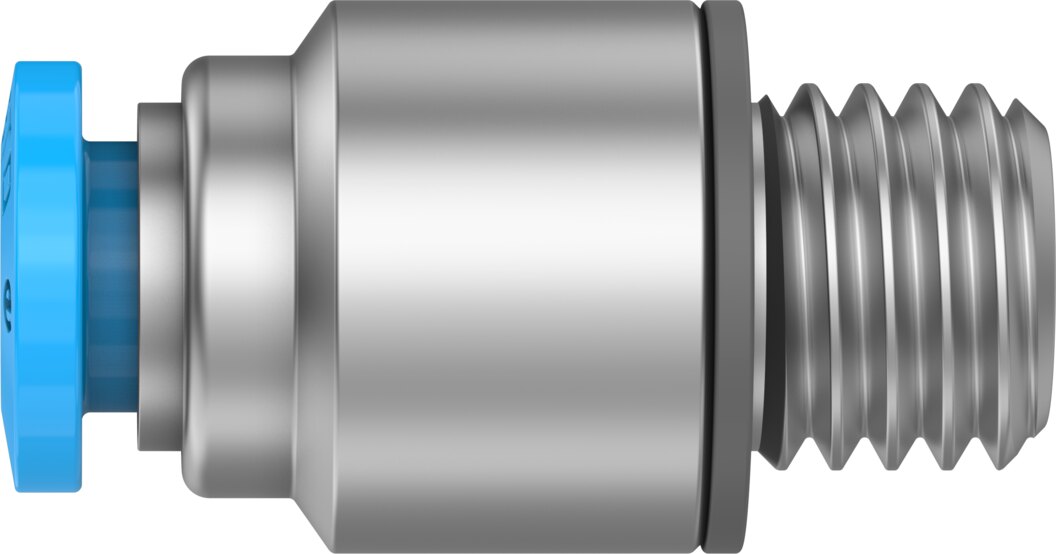

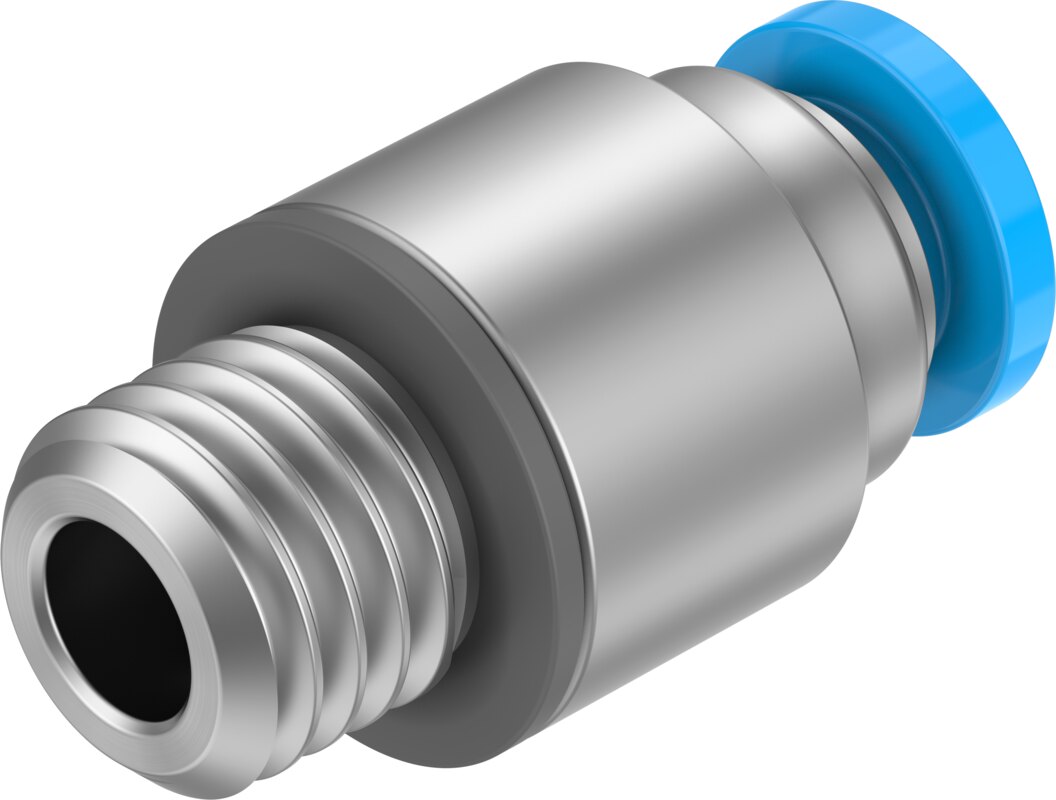

Straight push-in fitting M7 to tubing OD 4 mm, stainless steel NPQE-DK-M7-Q4-F1A-P10 - Festo 8144597

Festo ✓ Original product Brand new

With the NPQE-DK-M7-Q4-F1A-P10 push-in fitting, tubing with an OD of 4 mm is connected to a M7 thread without tools. The NPQE-DK-M7-Q4-F1A-P10 is rated for -0.95 to 8 bar operating pressure and -5 to 60 °C ambient temperature.

Net
€4.43
excl. VAT
Item FES-8144597
Manufacturer no. NPQE-DK-M7-Q4-F1A-P10
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

With the NPQE-DK-M7-Q4-F1A-P10 push-in fitting, tubing with an OD of 4 mm is connected to a M7 thread without tools. The NPQE-DK-M7-Q4-F1A-P10 is rated for -0.95 to 8 bar operating pressure and -5 to 60 °C ambient temperature.

Benefits

  • From vacuum up to 8 bar operating pressure -0.95 to 8 bar across the full temperature range
  • Mini sizeproduct weight 4.11 g
  • Ambient temperature -5 to 60 °C
  • Push-pull principle push the tube in, press the blue release ring to remove it
  • Housing made of high-alloy stainless steelcorrosion resistance class CRC 1
  • Tubing seal made of NBR

Applications

Typical locations for the NPQE-DK-M7-Q4-F1A-P10 are valves, cylinders and service units with a M7 port. The NPQE-DK-M7-Q4-F1A-P10 works with compressed air to ISO 8573-1:2010 [7:4:4], lubricated operation possible..

Technical data

FeatureValue
TypeNPQE-DK-M7-Q4-F1A-P10
Festo part number8144597
SizeMini
Nominal width3 mm
Seal type on screw-in studSealing ring
Mounting positionAny
DesignStraight
ConstructionPush-pull principle
Operating pressure, full temperature range-0.95 to 8 bar
Operating mediumcompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible
Corrosion resistance class CRC1 - low corrosion stress
LABS (PWIS) conformityVDMA24364 zone III
Suitability for Li-ion battery productionSuitable for battery production with reduced Cu/Zn/Ni content (F1a)
Cleanroom suitability, measured to ISO 14644-14Class 4 to ISO 14644-1
Ambient temperature-5 to 60 °C
Nominal tightening torque2 Nm
Tolerance of nominal tightening torque± 5 %
Product weight4.11 g
Mounting typeInternal hex A/F 3
Pneumatic connection 1Male thread M7
Pneumatic connection 2For tubing OD 4 mm
Release ring colourBlue
Material noteRoHS compliant
Housing materialHigh-alloy stainless steel
Thread seal materialNBR, high-alloy stainless steel
Release ring materialPOM
Tubing seal materialNBR
Tubing clamp segment materialHigh-alloy stainless steel
Weight0.005 kg
ManufacturerFesto
Hersteller-NrNPQE-DK-M7-Q4-F1A-P10
EAN4052568581121
Zolltarifnummer73072910
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialStainless steel
Bauformgerade Form
ThreadM7
For hose OD [mm]4
Nominal size DN [mm]3
Size BGMini
Seal materialNBR
MediumCompressed air
Thread typeExternal thread
Schlüsselweite [mm]3
Betriebsdruck max [bar]8
Temperaturbereich-5-60 °C
Temperature (max.)60
