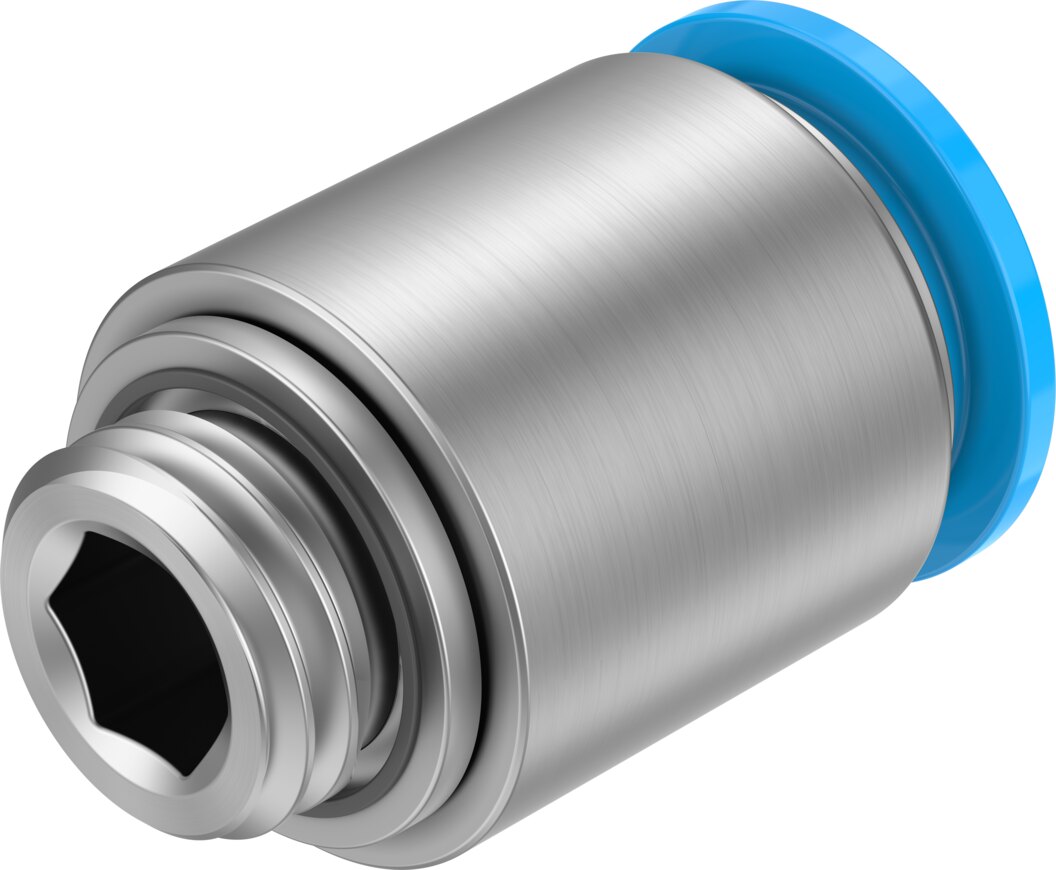

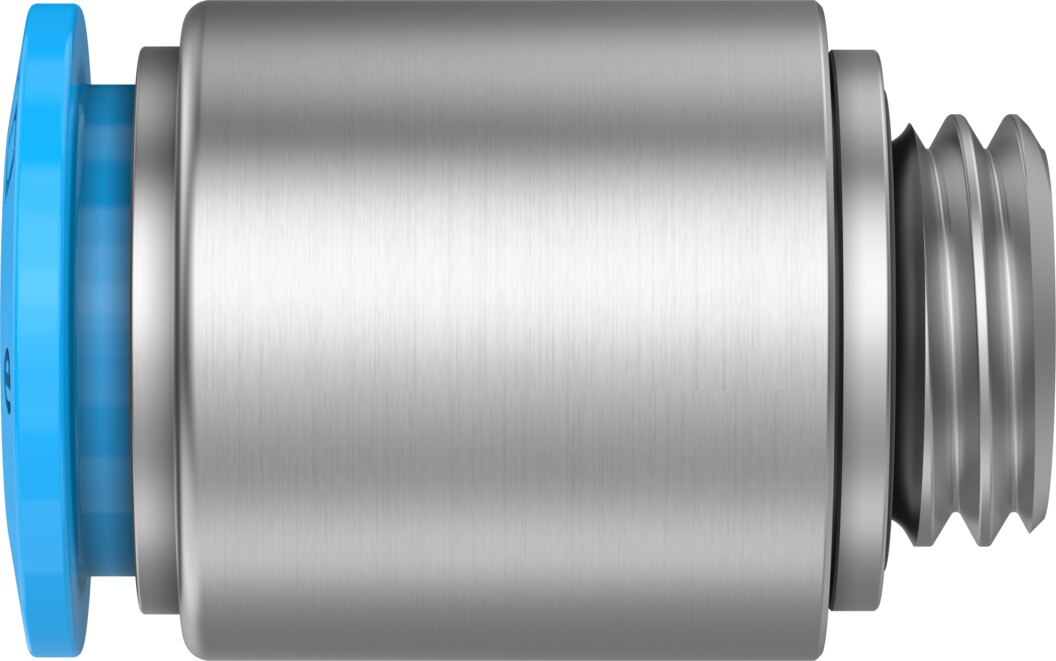

Straight push-in fitting G1/4 to tubing OD 12 mm, stainless steel NPQE-DK-G14-Q12-F1A-P10 - Festo 8144606
The straight push-in fitting NPQE-DK-G14-Q12-F1A-P10 connects tubing with an OD of 12 mm directly to a G1/4 port. Operating pressure -0.95 to 8 bar, ambient -5 to 60 °C. Cleanroom suitable to class 4 of ISO 14644-1 and LABS (PWIS) compliant.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The straight push-in fitting NPQE-DK-G14-Q12-F1A-P10 connects tubing with an OD of 12 mm directly to a G1/4 port. Operating pressure -0.95 to 8 bar, ambient -5 to 60 °C.
Benefits
- From vacuum up to 8 bar operating pressure -0.95 to 8 bar across the full temperature range
- Nominal width 7 mm
- Nominal tightening torque 9 Nm (± 20 %)
- Ambient temperature -5 to 60 °C
- Push-pull principle push the tube in, press the blue release ring to remove it
- Housing made of high-alloy stainless steelcorrosion resistance class CRC 1
Applications
Typical locations for the NPQE-DK-G14-Q12-F1A-P10 are valves, cylinders and service units with a G1/4 port. The NPQE-DK-G14-Q12-F1A-P10 works with compressed air to ISO 8573-1:2010 [7:4:4], lubricated operation possible..
Technical data
| Feature | Value |
|---|---|
| Type | NPQE-DK-G14-Q12-F1A-P10 |
| Festo part number | 8144606 |
| Size | Standard |
| Nominal width | 7 mm |
| Seal type on screw-in stud | Sealing ring |
| Mounting position | Any |
| Design | Straight |
| Construction | Push-pull principle |
| Operating pressure, full temperature range | -0.95 to 8 bar |
| Operating medium | compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance class CRC | 1 - low corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Suitability for Li-ion battery production | Suitable for battery production with reduced Cu/Zn/Ni content (F1a) |
| Cleanroom suitability, measured to ISO 14644-14 | Class 4 to ISO 14644-1 |
| Ambient temperature | -5 to 60 °C |
| Nominal tightening torque | 9 Nm |
| Tolerance of nominal tightening torque | ± 20 % |
| Product weight | 23.56 g |
| Mounting type | Internal hex A/F 7 |
| Pneumatic connection 1 | Male thread G1/4 |
| Pneumatic connection 2 | For tubing OD 12 mm |
| Release ring colour | Blue |
| Material note | RoHS compliant |
| Housing material | High-alloy stainless steel |
| Thread seal material | Aluminium, TPEE |
| Release ring material | POM |
| Tubing seal material | NBR |
| Tubing clamp segment material | High-alloy stainless steel |
| Weight | 0.023 kg |
| Manufacturer | Festo |
| Hersteller-Nr | NPQE-DK-G14-Q12-F1A-P10 |
| EAN | 4052568581213 |
| Zolltarifnummer | 73072910 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | Stainless steel |
| Bauform | gerade Form |
| Thread | G 1/4 |
| For hose OD [mm] | 12 |
| Nominal size DN [mm] | 7 |
| Size BG | Standard |
| Seal material | NBR |
| Medium | Compressed air |
| Thread type | External thread |
| Schlüsselweite [mm] | 7 |
| Betriebsdruck max [bar] | 8 |
| Temperaturbereich | -5-60 °C |
| Temperature (max.) | 60 |
