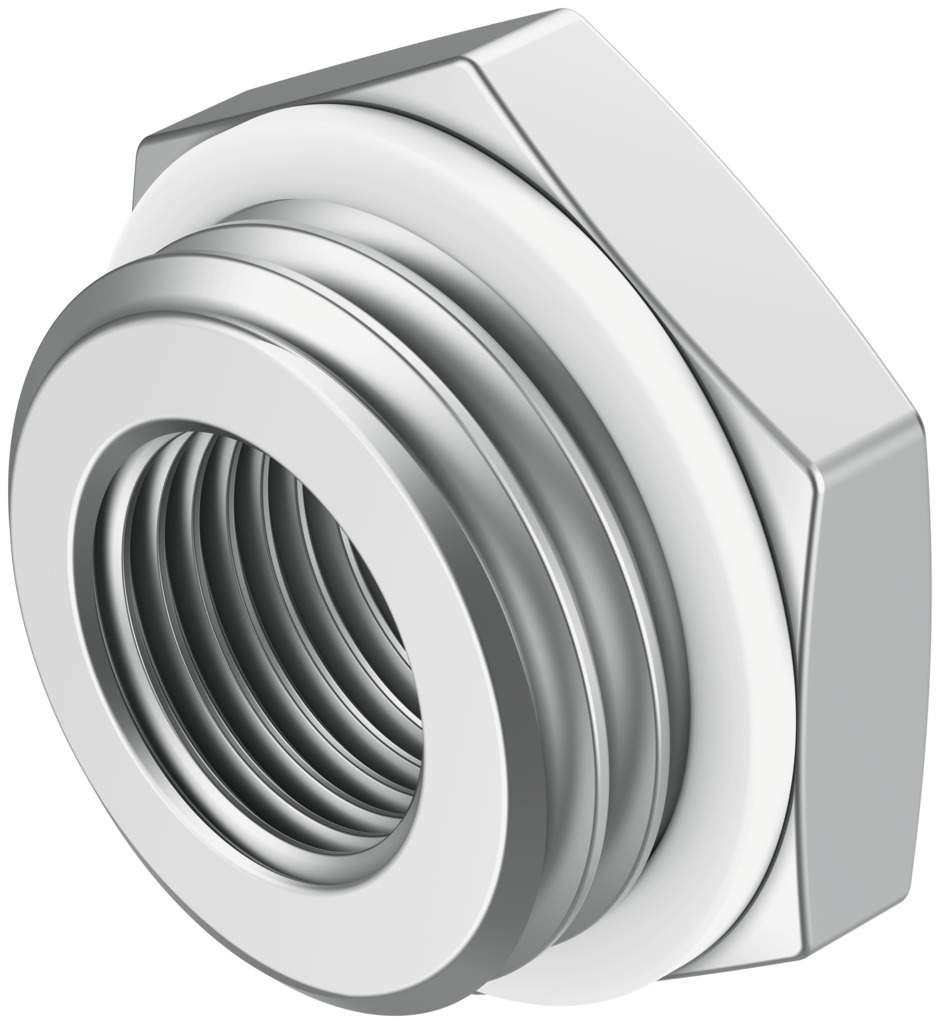

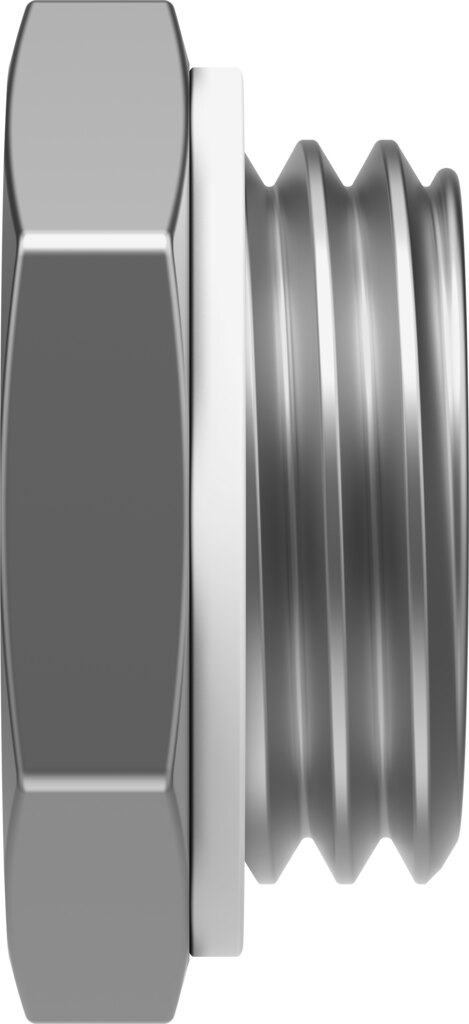

Reducing nipple G1 to G1/2 made of nickel-plated brass NPFC-RS-G1-G12-MF - Festo 8142601

Festo ✓ Original product Brand new

The NPFC-RS-G1-G12-MF reducing nipple adapts one thread size to another without an intermediate piece. Connections: G1 to G1/2. The NPFC-RS-G1-G12-MF reducing nipple operates in the range from -0.95 to 10 bar.

Net
€7.74
excl. VAT
Item FES-8142601
Manufacturer no. NPFC-RS-G1-G12-MF
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The NPFC-RS-G1-G12-MF reducing nipple adapts one thread size to another without an intermediate piece. The NPFC-RS-G1-G12-MF reducing nipple operates in the range from -0.95 to 10 bar.

Benefits in use

  • Operating pressure -0.95 to 10 bar, vacuum-capable
  • Ambient temperature -10 to 60 °C
  • Threaded fitting made of nickel-plated brass
  • Corrosion resistance class CRC 1 for low corrosion stress
  • Defined assembly with nominal tightening torque 62.5 Nm
  • PWIS (LABS) conformity to VDMA24364-B2-L

Applications

NPFC-RS-G1-G12-MF in use: for valves, manifolds and fittings with differing port sizes.

Technical data

FeatureValue
TypeNPFC-RS-G1-G12-MF
Festo part number8142601
Threaded fitting materialNickel-plated brass
Operating pressure-0.95 to 10 bar
Operating mediumCompressed air to ISO 8573-1:2010 [-:-:-]
Corrosion resistance class CRC1 - low corrosion stress
PWIS (LABS) conformityVDMA24364-B2-L
Ambient temperature-10 to 60 °C
Nominal tightening torque, port 162.5 Nm
Tolerance of nominal tightening torque± 20 %
Pneumatic connection 1G1
Pneumatic connection 2G1/2
Material noteRoHS compliant
Seal materialPVC
Weight0.115 kg
ManufacturerFesto
Hersteller-NrNPFC-RS-G1-G12-MF
EAN4052568568344
Zolltarifnummer74122000
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialNickel-plated brass
ThreadG 1
Thread 2G 1/2
MediumCompressed air
Betriebsdruck max [bar]10
Pneumatic connectionG1
Temperaturbereich-10-60 °C
Temperature (max.)60

Downloads

Questions about this item

Any other question?

Send us the item number and your question. We clarify technical details directly with the manufacturer and usually reply on the next working day.
