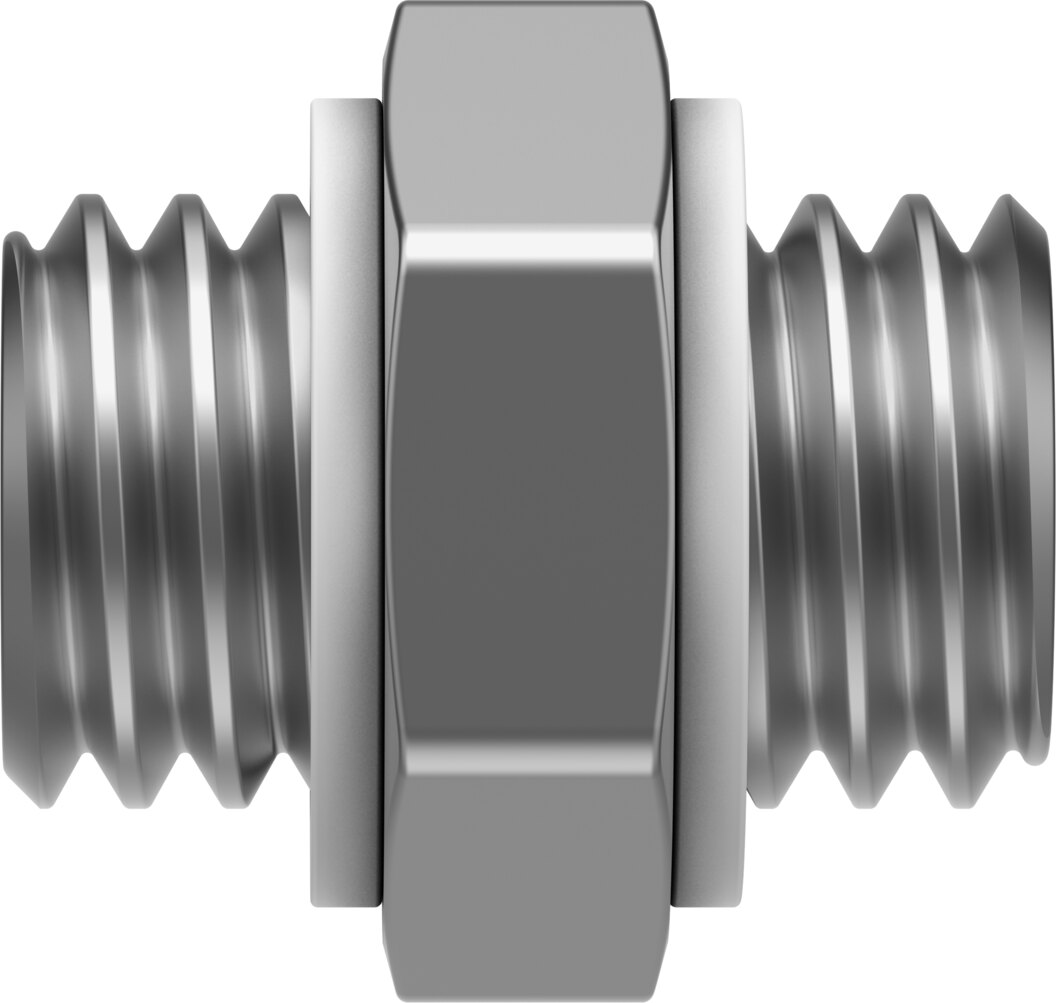

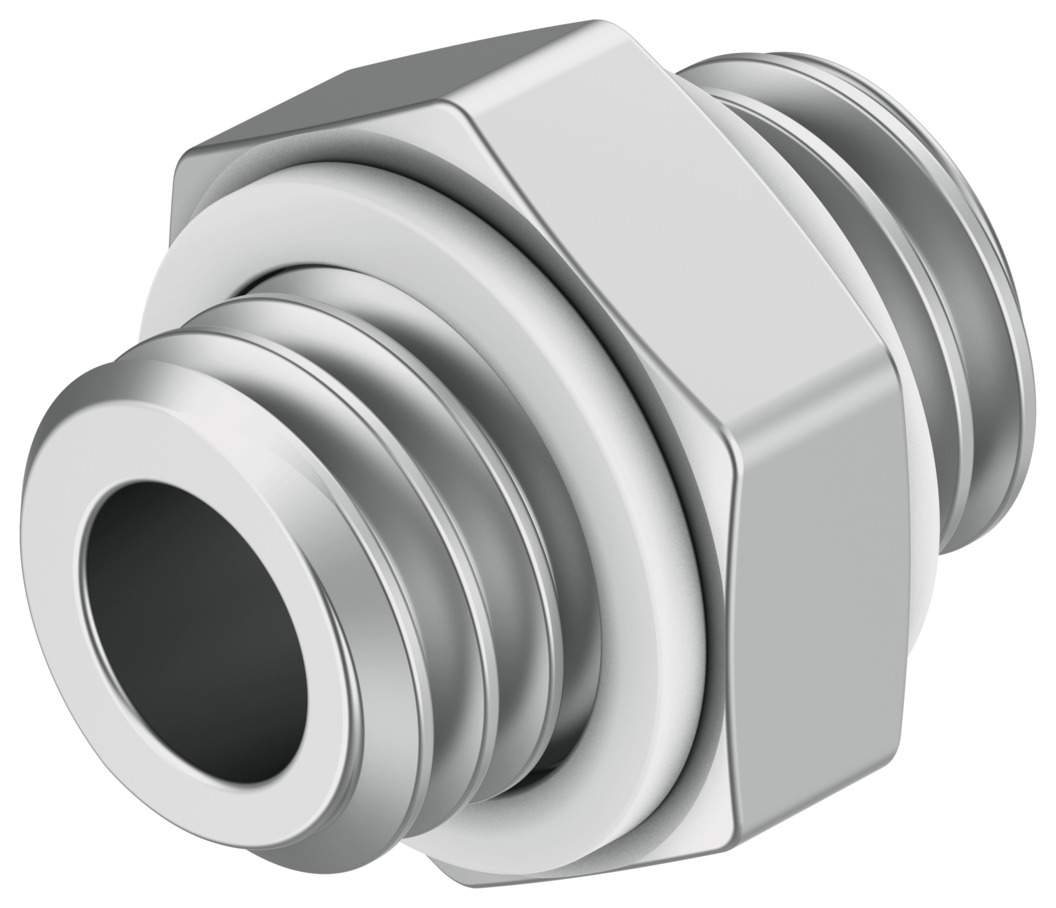

Double nipple G1/8 on both ends made of nickel-plated brass NPFC-DS-G18-G18-M - Festo 8142583
The NPFC-DS-G18-G18-M double nipple connects two female threads, for example valve and manifold, over a short distance. Connections: G1/8 on both ends. Usable from vacuum (-0.95 bar) up to 10 bar.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The NPFC-DS-G18-G18-M double nipple connects two female threads, for example valve and manifold, over a short distance. Usable from vacuum (-0.95 bar) up to 10 bar.
Benefits in use
- Operating pressure -0.95 to 10 bar, vacuum-capable
- Ambient temperature -10 to 60 °C
- Threaded fitting made of nickel-plated brass
- Corrosion resistance class CRC 1 for low corrosion stress
- Defined assembly with nominal tightening torque 10.55 Nm
- PWIS (LABS) conformity to VDMA24364-B2-L
Applications
NPFC-DS-G18-G18-M in use: for compact assemblies of valves, manifolds, filters and fittings.
Technical data
| Feature | Value |
|---|---|
| Type | NPFC-DS-G18-G18-M |
| Festo part number | 8142583 |
| Threaded fitting material | Nickel-plated brass |
| Operating pressure | -0.95 to 10 bar |
| Operating medium | Compressed air to ISO 8573-1:2010 [-:-:-] |
| Corrosion resistance class CRC | 1 - low corrosion stress |
| PWIS (LABS) conformity | VDMA24364-B2-L |
| Ambient temperature | -10 to 60 °C |
| Nominal tightening torque, port 1 | 10.55 Nm |
| Nominal tightening torque, port 2 | 10.55 Nm |
| Tolerance of nominal tightening torque | ± 20 % |
| Pneumatic connection 1 | G1/8 |
| Pneumatic connection 2 | G1/8 |
| Material note | RoHS compliant |
| Seal material | PVC |
| Weight | 0.0098 kg |
| Manufacturer | Festo |
| Hersteller-Nr | NPFC-DS-G18-G18-M |
| EAN | 4052568567767 |
| Zolltarifnummer | 74122000 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | Nickel-plated brass |
| Thread | G 1/8 |
| Thread 2 | G 1/8 |
| Medium | Compressed air |
| Betriebsdruck max [bar] | 10 |
| Pneumatic connection | G1/8 |
| Temperaturbereich | -10-60 °C |
| Temperature (max.) | 60 |
