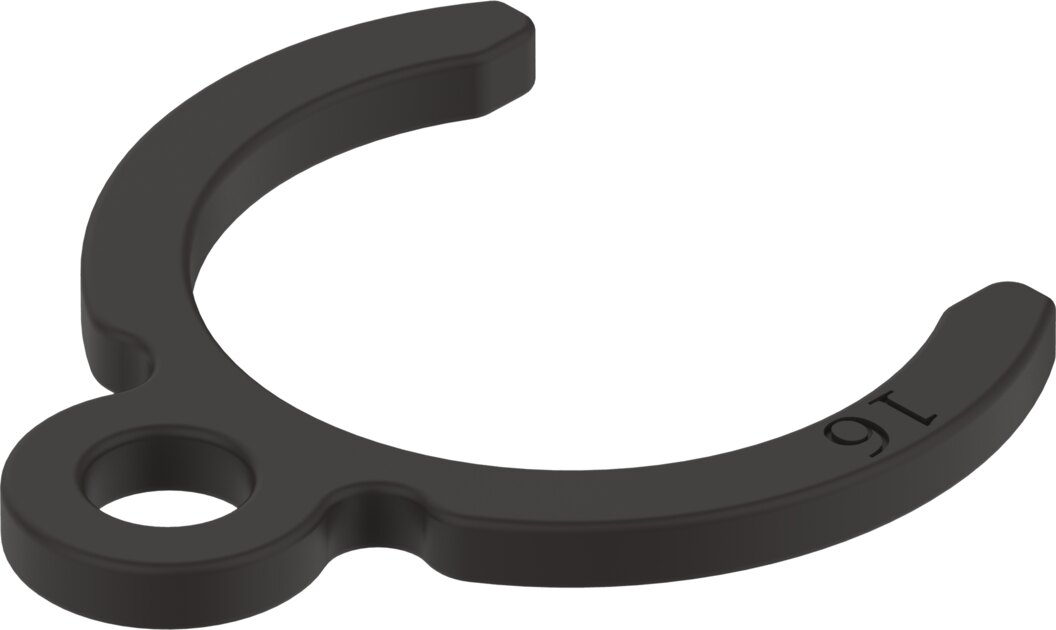

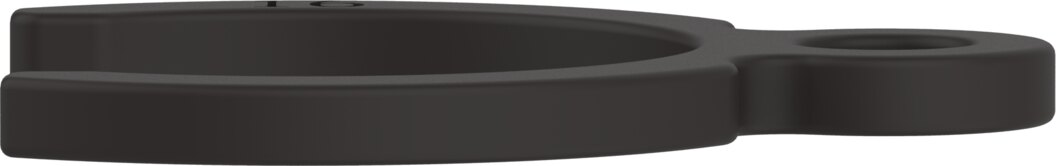

Safety clip for tubing OD 16 mm NPAP-QE-S-Q16-P10 - Festo 8113233

Festo ✓ Original product Brand new

The NPAP-QE-S-Q16-P10 is a safety clip from the Festo connection technology range. Connection: tubing OD 16 mm. Usable from vacuum (-0.95 bar) up to 8 bar.

Net
€0.40
excl. VAT
Item FES-8113233
Manufacturer no. NPAP-QE-S-Q16-P10
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The NPAP-QE-S-Q16-P10 is a safety clip from the Festo connection technology range. Usable from vacuum (-0.95 bar) up to 8 bar.

Benefits

  • Operating pressure -0.95 to 8 bar, vacuum-capable
  • Ambient temperature -5 to 60 °C
  • Corrosion resistance class CRC 1 for low corrosion stress
  • PWIS (LABS) conformity VDMA24364 zone III

Applications

For push-in connections with plastic tubing in pneumatics.

Technical data

FeatureValue
TypeNPAP-QE-S-Q16-P10
Festo part number8113233
Product typeSafety clip
Mounting positionany
Operating pressure across the full temperature range-0.95 to 8 bar
Corrosion resistance class CRC1 - low corrosion stress
PWIS (LABS) conformityVDMA24364 zone III
Cleanroom suitability to ISO 14644-14Statically installed element, no meaningful evaluation possible to ISO 14644-1
Ambient temperature-5 to 60 °C
Pneumatic connectionFor tubing OD 16 mm
Material noteRoHS compliant
ManufacturerFesto
Hersteller-NrNPAP-QE-S-Q16-P10
EAN4052568465551
Zolltarifnummer90330090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
For hose OD [mm]16
Betriebsdruck max [bar]8
Temperaturbereich-5-60 °C
Temperature (max.)60
