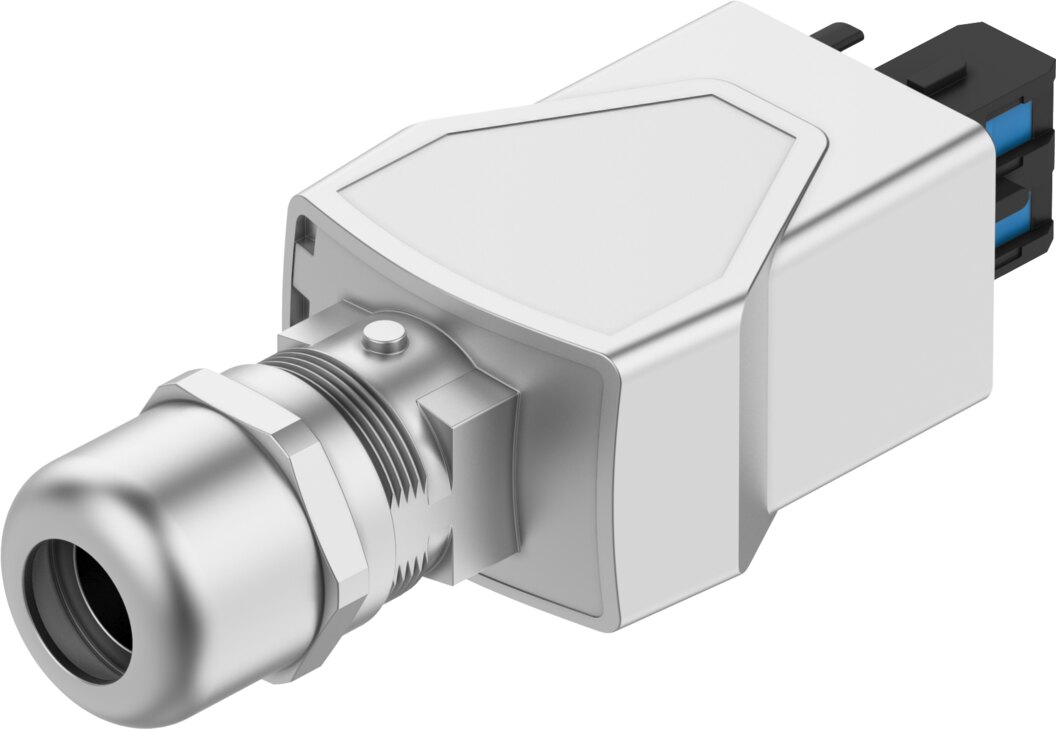

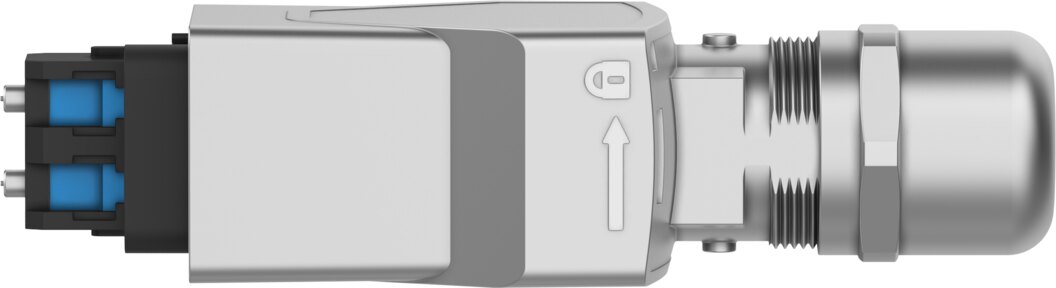

Plug, IP65, IP67, electrical connection technology NOCC-M-S-SCRJG2PP-C5-PN - Festo 5195381
The Festo plug NOCC-M-S-SCRJG2PP-C5-PN is part of the electrical connection technology range. Additional function: fulfils requirements according to AIDA. For Ethernet, PROFINET FOC. Degree of protection IP65, IP67, ambient temperature -25 to 70 °C.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The Festo plug NOCC-M-S-SCRJG2PP-C5-PN is part of the electrical connection technology range.
Benefits
- Environment: IP65, IP67, -25 to 70 °C
- Additional function: fulfils requirements according to AIDA
Applications
Intended for Ethernet, PROFINET FOC.
Technical data
| Conforms to standard | IEC 61754-24 |
|---|---|
| Protocol | Ethernet, PROFINET FOC |
| Additional functions | Fulfils requirements according to AIDA |
| Frequency of connection | 100 |
| Cable outlet | Straight |
| Product weight | 84 g |
| Optical connection 1, connection type | Plug |
| Optical connection 1, design | Square |
| Optical connection 1, connection technology | SC-RJ to IEC 61754-24 |
| Optical connection 1, number of pins/cores | 2 |
| Optical connection 1, occupied pins/wires | 2 |
| Optical connection 1, type of mounting | Push-pull with interlock against unintentional pulling |
| Optical connection 1, ferrule diameter | 2.5 mm |
| Optical connection 2, connection technology | Lock nut |
| Tightening torque | 0.42 Nm |
| Wire diameter | 0.98 to 1 mm |
| Type of wire | Polymer fibre |
| Wavelength | 650 nm |
| Fire test | UL94 V-0 |
| Cable diameter | 5.5 to 10 mm |
| Degree of protection | IP65, IP67 |
| Note on degree of protection | In mounted state |
| Ambient temperature | -25 to 70 °C |
| Storage temperature | -40 to 70 °C |
| LABS (PWIS) conformity | VDMA24364-A1-L |
| Note on materials | RoHS compliant |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| Material housing | Nickel-plated die-cast zinc |
| Housing colour | Silver |
| Material seals | NBR, TPE |
| Ferrule material | Copper alloy |
| Weight | 0.09 kg |
| Manufacturer | Festo |
| Hersteller-Nr | NOCC-M-S-SCRJG2PP-C5-PN |
| EAN | 4052568647209 |
| Zolltarifnummer | 85367000 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Temperature (max.) | 70 |
