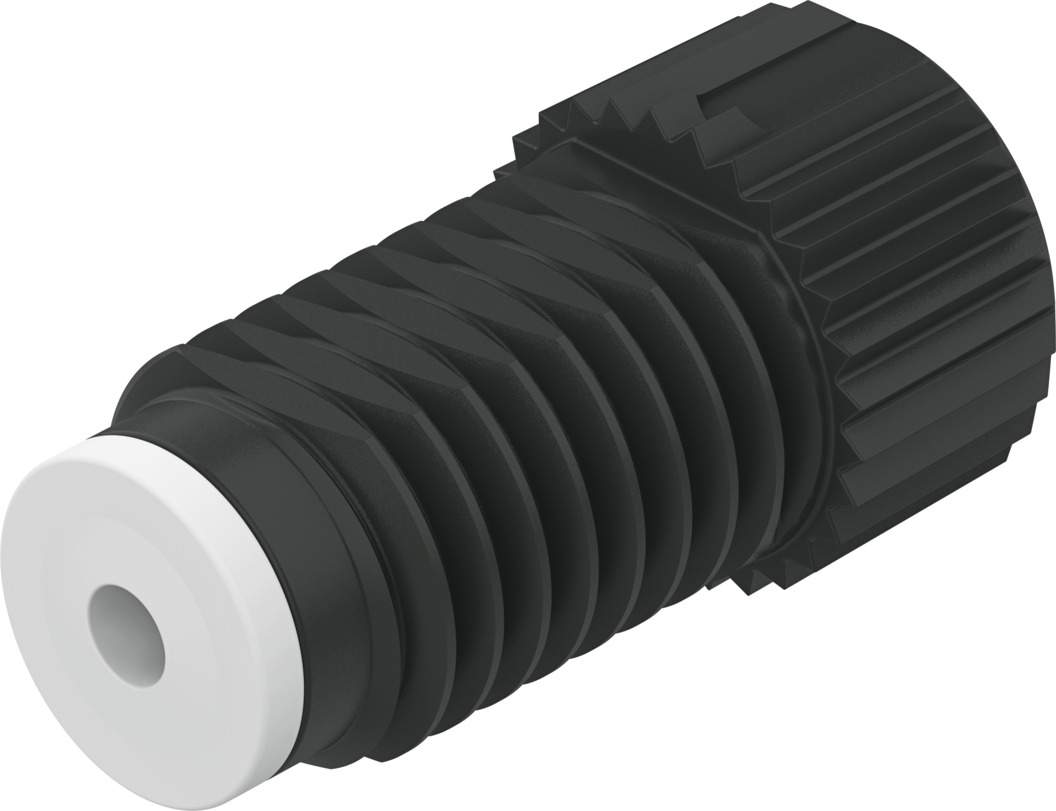

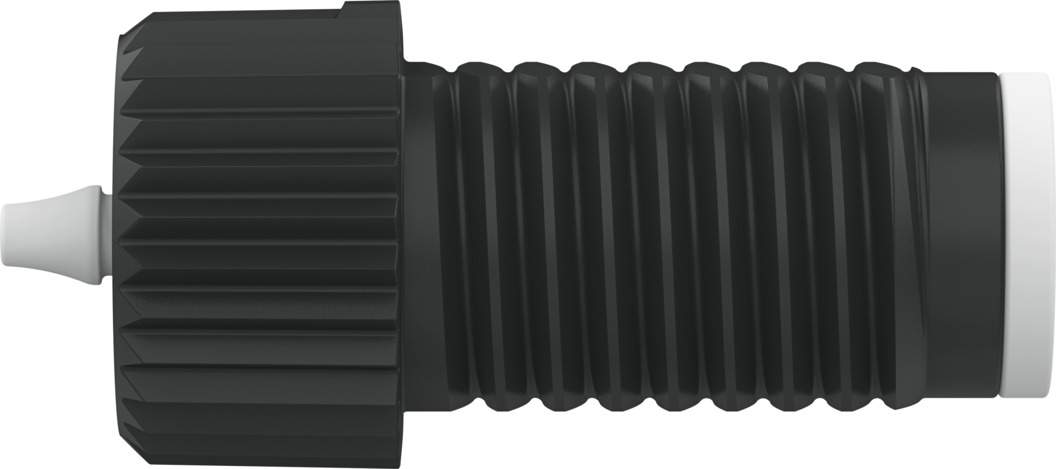

Fitting for liquid media with thread UNF1/4-28 for tubing I.D. 1.2 mm NLFA-D-U14-B1.2-PP-P10 - Festo 8104288
The fitting for liquid media NLFA-D-U14-B1.2-PP-P10 combines thread UNF1/4-28 with a connection for tubing I. D. 1.2 mm. Operating pressure: -0.75 to 4 bar. Permitted ambient temperature: 0 to 35 °C. price per piece. RoHS compliant. Weight 1.06 g. Any mounting position.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The fitting for liquid media NLFA-D-U14-B1.2-PP-P10 combines thread UNF1/4-28 with a connection for tubing I. D. 1.2 mm. Operating pressure: -0.75 to 4 bar.
Benefits
- Thread UNF1/4-28
- Connection for tubing I. D. 1.2 mm
- Operating pressure -0.75 to 4 bar, vacuum included
- Ambient temperature 0 to 35 °C
- Tightening torque 0.15 Nm
- LABS (PWIS) compliant to VDMA 24364 zone III
Applications
The NLFA-D-U14-B1.2-PP-P10 is intended for tubing lines (tubing I. D. 1.2 mm) with liquid or gaseous media, the resistance of the wetted materials (PP) must be checked in advance.
Technical data
| Feature | Value |
|---|---|
| Type | NLFA-D-U14-B1.2-PP-P10 |
| Festo part number | 8104288 |
| Construction | tubing attachment via barbed nipple |
| Design | straight |
| Size | ø 8 mm |
| Fluid connection | UNF1/4-28 |
| Fluid connection 2 | for tubing I. D. 1.2 mm |
| Medium | liquid media, gaseous media |
| Note on medium | check the resistance of the wetted materials |
| Operating pressure, full temperature range | -0.75 to 4 bar |
| Medium temperature | 0 to 35 °C |
| Ambient temperature | 0 to 35 °C |
| Storage temperature | -20 to 70 °C |
| Sealing principle | hard |
| Mounting position | any |
| Nominal tightening torque | 0.15 Nm |
| Tolerance of nominal tightening torque | ± 15 % |
| Product weight | 1.06 g |
| Wetted materials | PP |
| Screw-in stud material | reinforced PA |
| Material note | RoHS compliant |
| Food compatibility | see extended material information |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Weight | 0.001 kg |
| Manufacturer | Festo |
| Hersteller-Nr | NLFA-D-U14-B1.2-PP-P10 |
| EAN | 4052568578633 |
| Zolltarifnummer | 74122000 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Betriebsdruck max [bar] | 4 |
| Temperature (max.) | 35 |
