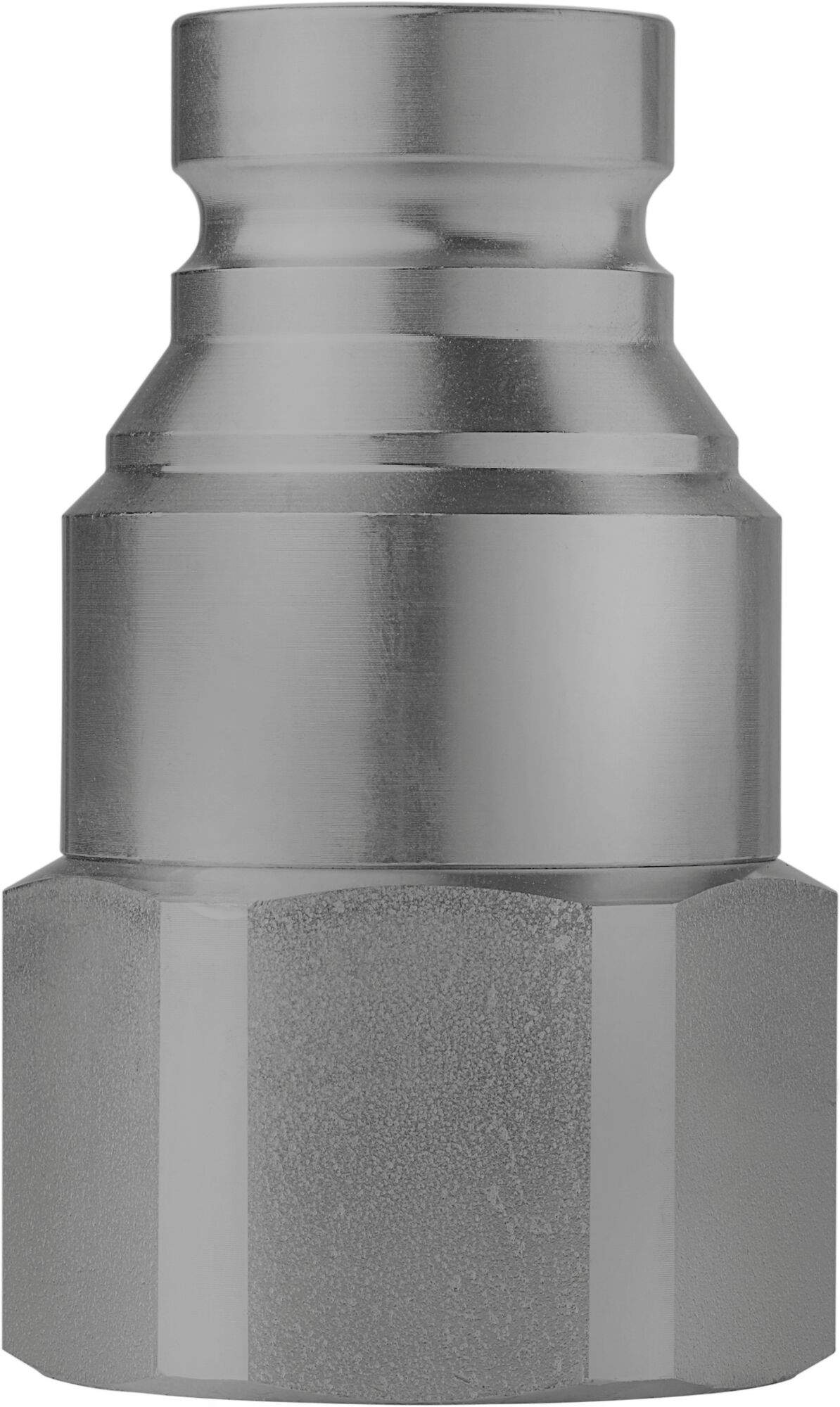

Nipple, female thread, G 1" (BSP), DN 25, 350 bar, steel - Cejn 100656203

For connection G 1" (BSP), this nipple in body size DN 25 brings the flat sealing face to the hydraulic line and holds 350 bar.

Benefits

• Weight 0.55 kg with a packaging unit of 1 piece.
• Flat-face design according to ISO 16028, which keeps spillage low during connection and disconnection.
• Max. working pressure coupled 350 bar, minimum burst pressure 1200 bar.
• Body size DN 25 matching the nominal size 1".

Applications

Typical applications are hydraulic circuits up to 350 bar where tools, cylinders or power units are changed and the connection is made by hand.

Standards and conformity

The body size follows the ISO 16028 standard for flat-face hydraulic couplings. Manufacturer marking: X65. Main material Steel, seal material NBR.
