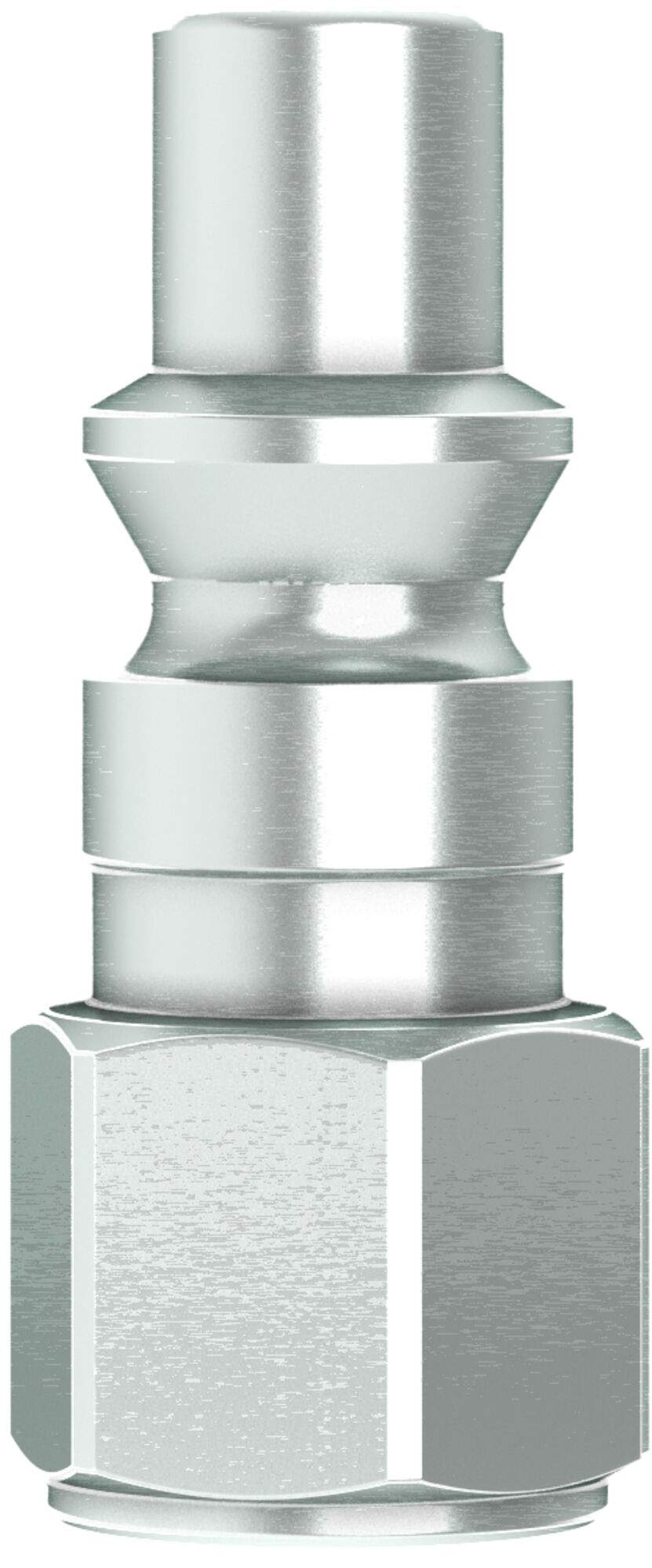

Nipple ARO 210 5.5 mm, female thread G 1/8", 1150 l/min, steel - Cejn 103005201
Plug-in part in steel with female thread G 1/8". It carries 1150 l/min and works up to 16 bar, the profile follows ARO 210 5.5 mm.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The nipple is the counterpart to the coupling. It is connected with female thread G 1/8", passes 1150 l/min and withstands a working pressure of up to 16 bar.
Benefits
- Body made of steel.
- Version with female thread G 1/8".
- Net weight 0.014 kg.
- Air flow 1150 l/min at a working pressure of up to 16 bar.
- Nipple profile ARO 210 5.5 mm, interchangeable with existing couplings of the same standard.
- Low pressure drop in the plug-in area, matching the air flow of 1150 l/min.
Applications
Typical places of use are assembly lines, workshop ring mains and mobile hose reels, always in combination with FRL units and air tools.
Standards and marking
Manufacturer marking: ARO 210. Nipple profile as stated by the manufacturer: ARO 210 standard 5.5 mm.
Technical data
| Property | Value |
|---|---|
| Product type | Nipple |
| Connection style | Female thread |
| Connection | G 1/8" |
| Coupling system | Standard quick couplings |
| Air flow | 1150 l/min |
| Max working pressure | 16 bar |
| Nipple profile | ARO 210 standard 5.5 mm |
| Material | Steel |
| Marking | ARO 210 |
| Weight | 0.014 kg |
| Packaging unit | 1 piece |
| CEJN part number | 103005201 |
| Manufacturer | Cejn |
| Hersteller-Nr | 103005201 |
| Zolltarifnummer | 73079910 |
| GPSR Herstellerdaten | CEJN-Product GmbH, Junkersring 16, DE-53844 Troisdorf, www.cejn.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
Downloads
Datasheet
CAD Data
