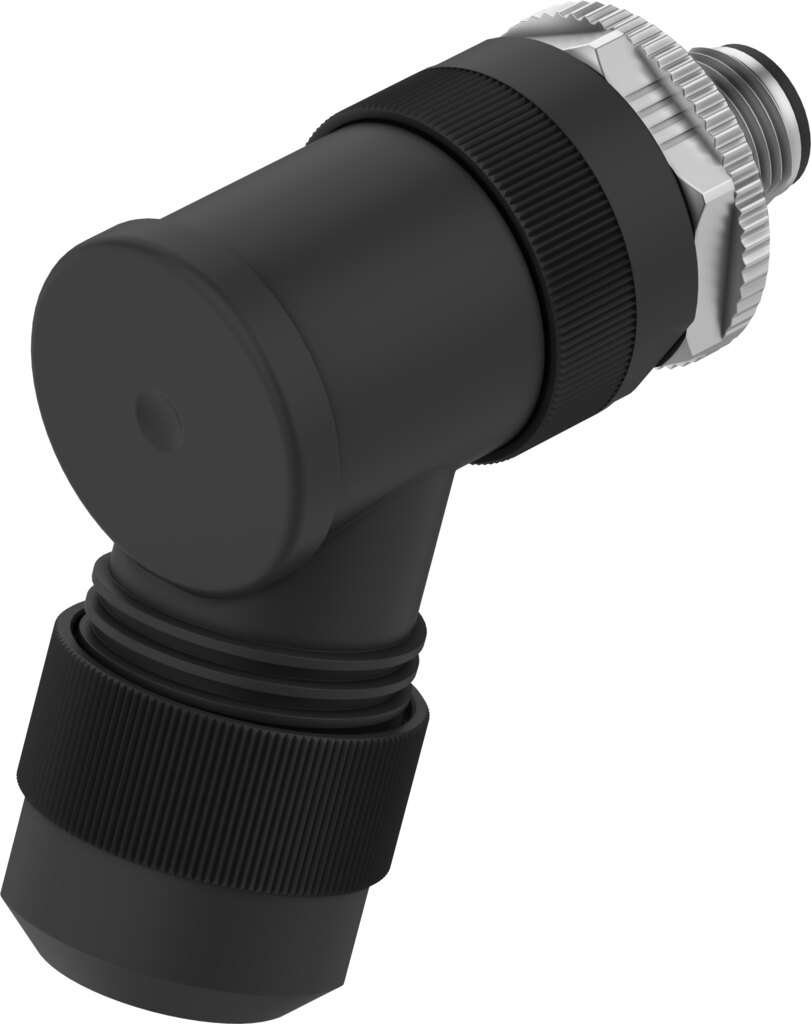

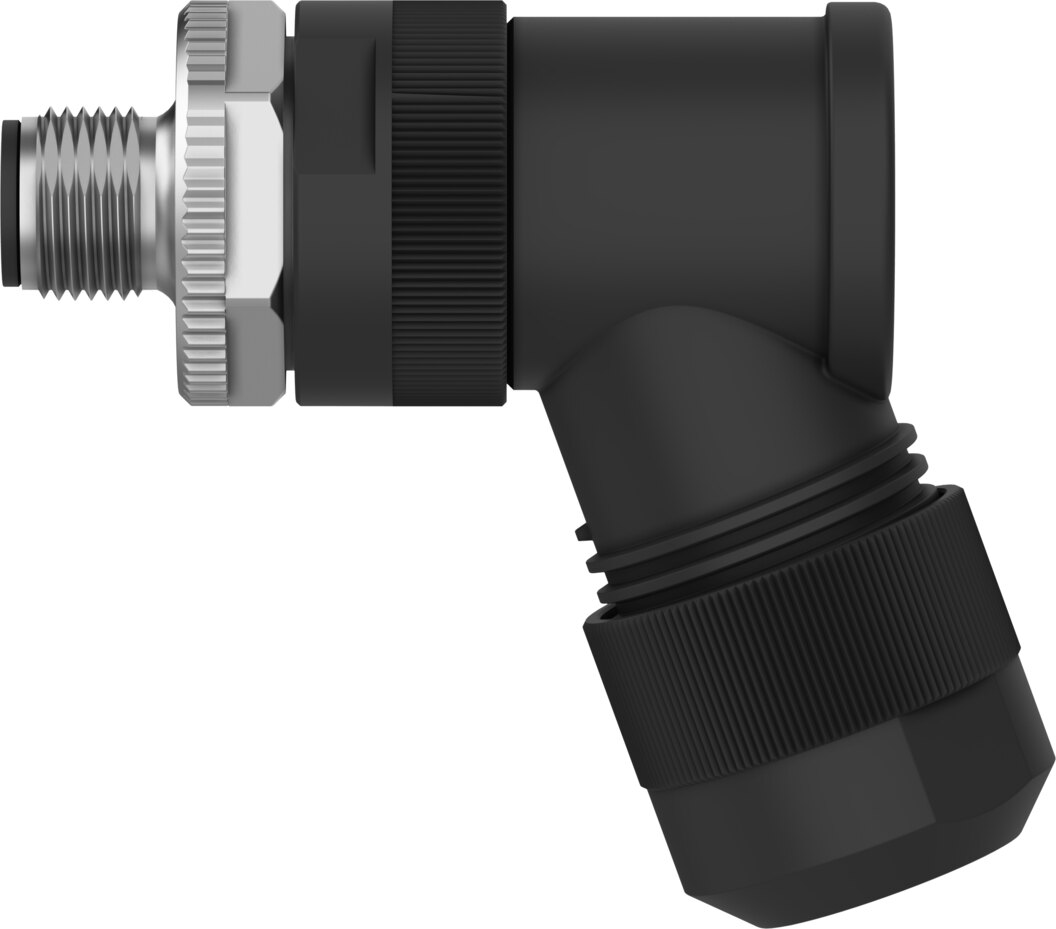

Power supply plug, 4-pin M12x1 plug to screw terminal NECL-S-L12W4-C2-Q10 - Festo 8203700

Festo ✓ Original product Brand new

The power supply plug NECL-S-L12W4-C2-Q10 has two connection sides: M12x1 L-coded plug (4-pin) and screw terminal. Current rating 16 A at 40 °C. Voltage 63 V DC, range 0 to 63 V. Degree of protection IP65, IP67, ambient temperature -40 to 105 °C.

Net
€38.20
excl. VAT
Item FES-8203700
Manufacturer no. NECL-S-L12W4-C2-Q10
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The power supply plug NECL-S-L12W4-C2-Q10 has two connection sides: M12x1 L-coded plug (4-pin) and screw terminal.

Benefits

  • Connection 1: M12x1 L-coded plug (4-pin)
  • Connection 2: screw terminal
  • Electrical: 16 A at 40 °C, 63 V DC nominal voltage
  • Environment: IP65, IP67, -40 to 105 °C

Applications

Suitable for ambient temperatures of -40 to 105 °C. Approval: c UL us - Recognised (Oil).

Technical data

Based on standardEN 61076-2-111
Approvalc UL us - Recognised (Oil)
Certificate issuing authorityUL E474609
Type of mountingThreaded
Cable outletAngled
Note on cable outletCan be rotated 72°
Product weight44.1 g
Electrical connection 1, functionPower supply
Electrical connection 1, designRound
Electrical connection 1, connection typePlug
Electrical connection 1, connector systemM12x1 L-coded to EN 61076-2-111
Electrical connection 1, number of connections/cores4
Electrical connection 2, connector systemScrew terminal
Operational voltage range DC0 to 63 V
Nominal operating voltage DC63 V
Current rating at 40 °C16 A
Immunity to surge1.5 kV
Permissible cable diameter8 - 13 mm for electrical connection 1
Nominal cross section conductor2.5 mm², AWG14
Note on connection cross-sectionMaximum 1.5 mm²/AWG16 when using wire ferrule
Degree of protectionIP65, IP67
Ambient temperature-40 to 105 °C
LABS (PWIS) conformityVDMA24364-B2-L
Note on materialsRoHS compliant
Pollution degree3
Corrosion resistance class CRC1 - Low corrosion stress
Material housingPA
Material screw-type lockNickel-plated die-cast zinc
Material electrical contactGold-plated copper alloy
Weight0.047 kg
ManufacturerFesto
Hersteller-NrNECL-S-L12W4-C2-Q10
EAN4052568786458
Zolltarifnummer85366990
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialPA
NormDIN EN 61076-2-111
