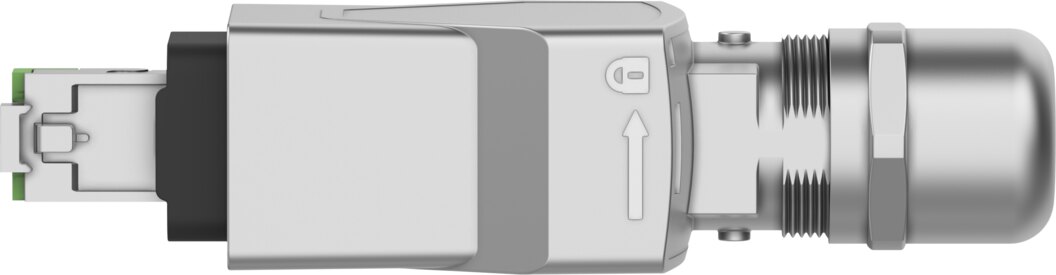

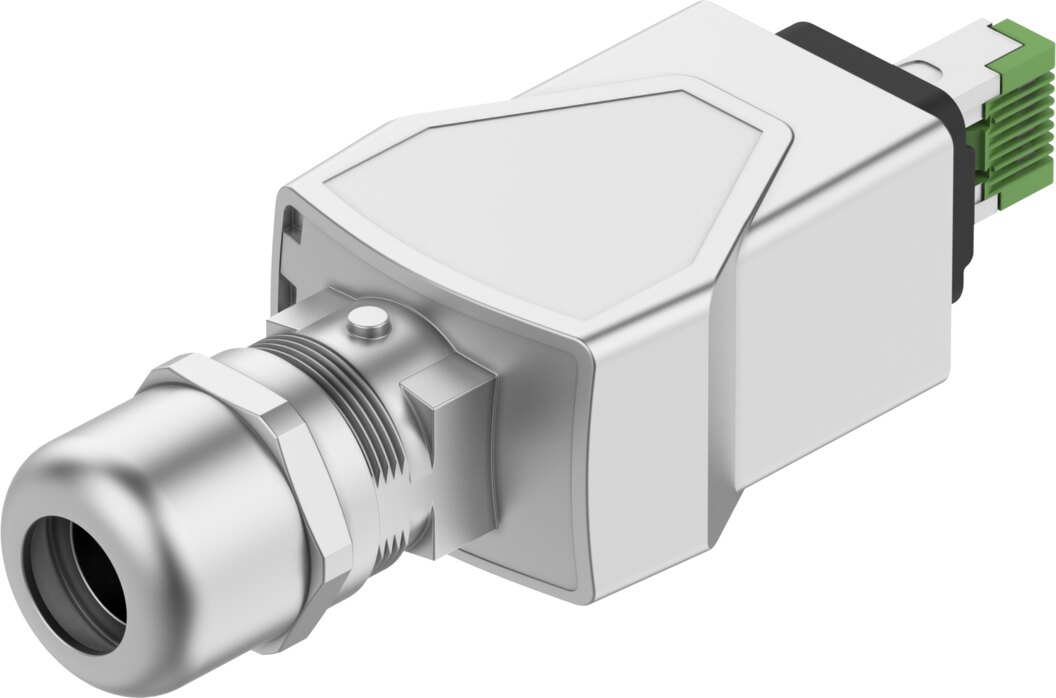

Plug NECC-M-S-R3G8PP-HX-PN - Festo 5195384
Net
excl. VAT
€63.34
Item
FES-5195384
Manufacturer no.
NECC-M-S-R3G8PP-HX-PN
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Protocol | Ethernet, PROFINET |
|---|---|
| Additional functions | Fulfils requirements according to AIDA |
| Frequency of connection | 750 |
| Cable outlet | Straight |
| Product weight | 90 g |
| Electrical connection 1, design | Square |
| Electrical connection 1, connection type | Plug |
| Electrical connection 1, cable outlet | Straight |
| Electrical connection 1, connector system | RJ45 |
| Electrical connection 1, number of connections/cores | 8 |
| Electrical connection 1, used connections/cores | 8 |
| Electrical connection 1, type of mounting | Push-pull with interlock against unintentional pulling |
| Electrical connection 1, connection pattern | 00995653 |
| Electrical connection 2, connector system | Insulation displacement connector |
| Operational voltage range DC | 50 V |
| Nominal operating voltage DC | 50 V |
| Current rating at 40° C | 1.75 A |
| Immunity to surge | 1.5 kV |
| Shielding | 360° possible |
| Transmission characteristics | Category 5 in accordance with ISO/IEC 11801, Category 5 according to TIA/EIA-568B |
| Protection against direct and indirect contact | PELV |
| Cable fitting | Pg11 hex A/F 20 |
| Cable diameter | 5.5 ... 10 mm |
| Wire diameter | 1.6 mm |
| Nominal cross section conductor | 0.25 ... 0.32 mm² |
| Conductor nominal cross section | AWG22, AWG23 |
| Note on connection cross-section | 0.25 - 0.32mm² for conductor 1-wire |
| Degree of protection | IP65, IP67 |
| Note on degree of protection | In mounted state |
| Ambient temperature | -40 ... 70 °C |
| Storage temperature | -40 ... 70 °C |
| LABS (PWIS) conformity | VDMA24364-A1-L |
| Note on materials | RoHS compliant |
| Fire test | UL94 V-0 |
| Pollution degree | 2 |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| Material housing | Nickel-plated die-cast zinc |
| Housing colour | Silver |
| Material seals | NBR, TPE-V |
| Material electrical contact | Nickel-plated and gold-plated copper alloy |
| Permissible insulating sheath | PP, PUR, PVC |
| Weight | 0.095 kg |
| Manufacturer | Festo |
| Hersteller-Nr | NECC-M-S-R3G8PP-HX-PN |
| EAN | 4052568647216 |
| Zolltarifnummer | 85366990 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
