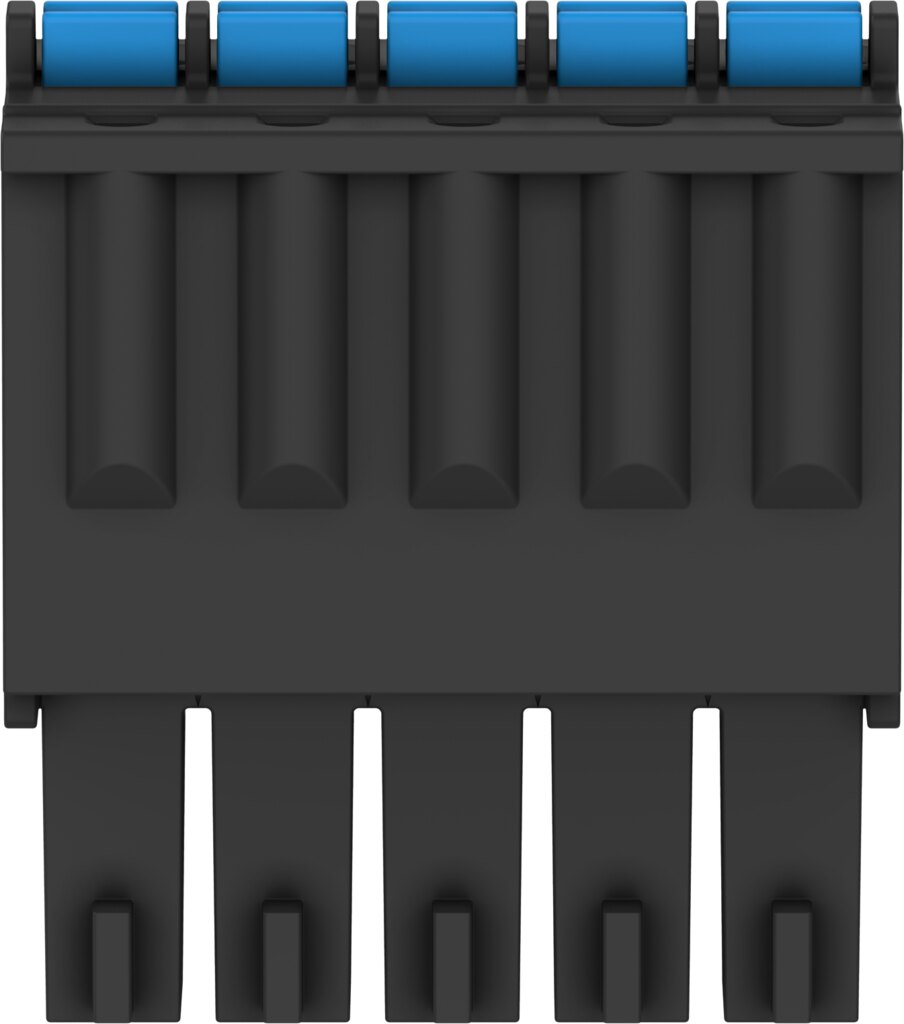

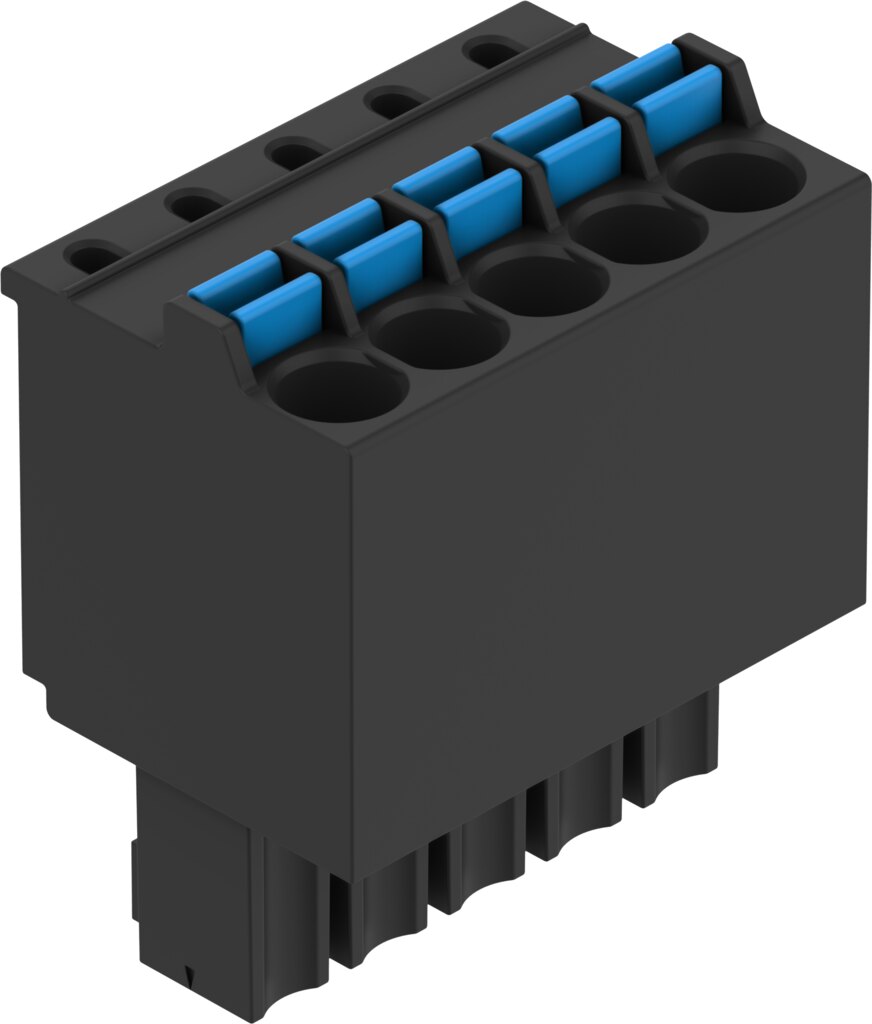

Terminal strip socket Connection 5-pin IP20 NECC-L8G5-C1 - Festo 8106756
The Festo terminal strip NECC-L8G5-C1 takes up the individual wires of the cable. Technically decisive: connectors socket Connection pattern L8, 5-pin and Spring-loaded terminal and operating voltage 0 to 300 V DC. In addition: current rating 8 A at 40 °C.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The Festo terminal strip NECC-L8G5-C1 takes up the individual wires of the cable. Technically decisive: connectors socket Connection pattern L8, 5-pin and Spring-loaded terminal and operating voltage 0 to 300 V DC.
Benefits
- Sealed: degree of protection IP20
- Temperature range: usable from -40 to 115 °C
- Electrical: operating voltage 0 to 300 V DC, current rating 8 A at 40 °C
- Corrosion protection: corrosion resistance class CRC 1 (low corrosion stress)
- Conductors: conductor cross-section AWG28 - 16
- PWIS: PWIS conformity VDMA24364 zone III
Applications
Suited to wiring automation components. The permitted temperature range is -40 to 115 °C.
Technical data
| Feature | Value |
|---|---|
| Type | NECC-L8G5-C1 |
| Festo part number | 8106756 |
| Cable outlet | Straight |
| Product weight | 3.8 g |
| Electrical connection 1, design | Square |
| Electrical connection 1, connection type | Socket |
| Electrical connection 1, connector system | Connection pattern L8 |
| Electrical connection 1, number of connections/cores | 5 |
| Electrical connection 1, type of mounting | plugged in |
| Electrical connection 2, connector system | Spring-loaded terminal |
| Operational voltage range DC | 0 to 300 V |
| Current rating at 40° C | 8 A |
| Immunity to surge | 1.6 kV |
| Shielding | No |
| Conductor nominal cross section | AWG28 - 16 |
| Degree of protection | IP20 |
| Note on degree of protection | In mounted state |
| Ambient temperature | -40 to 115 °C |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Note on materials | RoHS compliant |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| Material housing | PA |
| Housing colour | Black |
| Weight | 0.005 kg |
| Manufacturer | Festo |
| Hersteller-Nr | NECC-L8G5-C1 |
| EAN | 4052568458621 |
| Zolltarifnummer | 85366990 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Colour | Black |
| Material | PA |
| Housing material | PA |
| Series | NECC |
| Protection rating | IP20 |
| Temperature (max.) | 115 |
