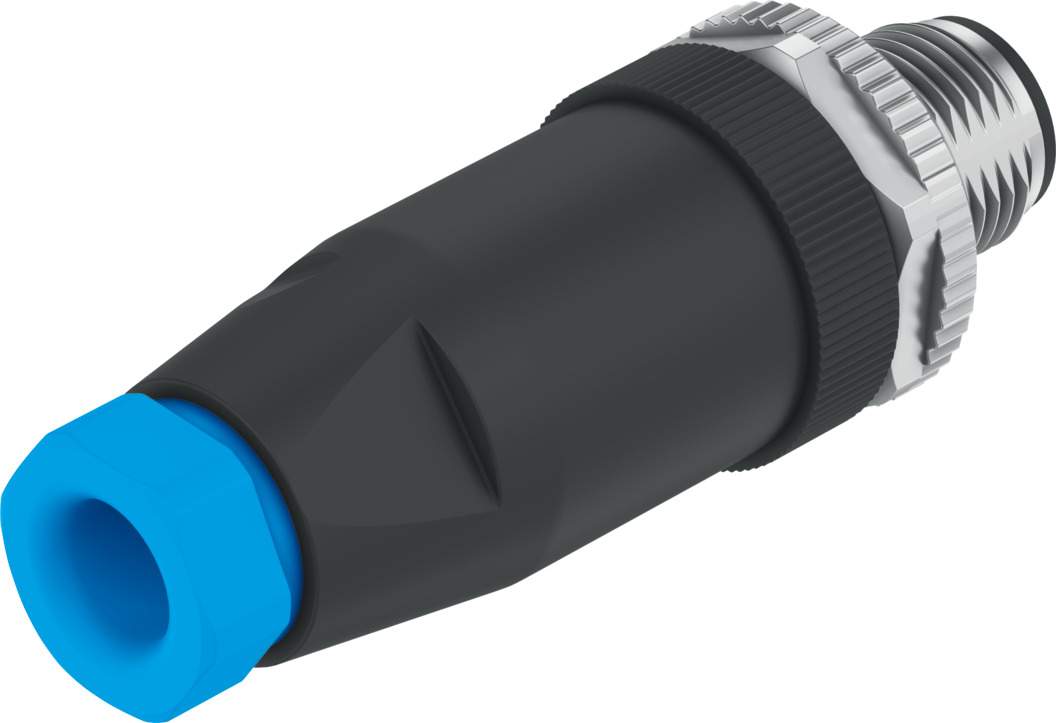

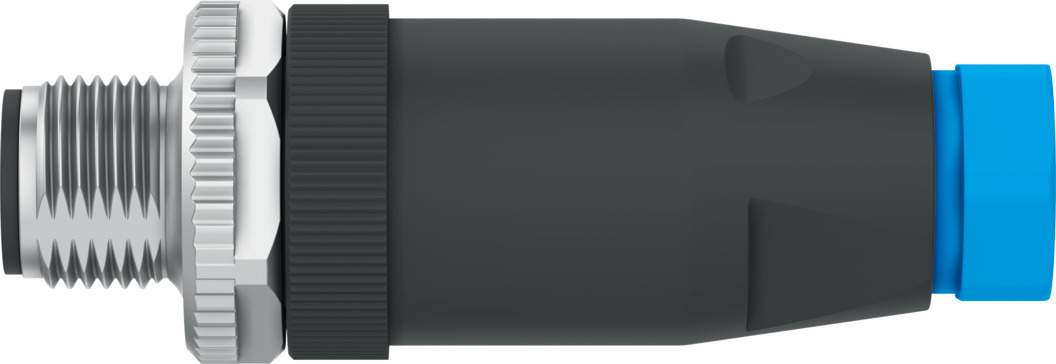

Plug M12x1 straight 4-pin screw terminal NECB-S-M12G4-C2 - Festo 8162294

Festo ✓ Original product Brand new

For self-assembly: the cable is connected via screw terminals. Festo plug NECB-S-M12G4-C2 comes with cable diameter 2.1 to 7 mm and conductor cross-section 0.14 to 0.75 mm².

Net
€8.53
excl. VAT
Item FES-8162294
Manufacturer no. NECB-S-M12G4-C2
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

Festo plug NECB-S-M12G4-C2: cable diameter 2.1 to 7 mm, plus conductor cross-section 0.14 to 0.75 mm². For self-assembly: the cable is connected via screw terminals.

Benefits

  • For cable diameters of 2.1 to 7 mm
  • Conductor cross-section 0.14 to 0.75 mm²
  • Cable gland Pg7
  • Current rating 4 A at 40 °C
  • Operating voltage 0 to 60 V DC and 0 to 48 V AC
  • Degree of protection IP65, IP67, dust-tight and protected against water jets

Applications

For repairs, special lengths and connecting your own cables. For replacements, compare the order code NECB-S-M12G4-C2 with the installed part.

Technical data

FeatureValue
TypeNECB-S-M12G4-C2
Festo part number8162294
Conforms to standardEN 61076-2-101
Certificationc UL us - Listed (OL)
Certificate issuing authorityUL E474609
Mating cycles100
Cable outletstraight
Product weight18 g
Application noteOnly energy-limited circuits with a maximum current of 4 A at a maximum open circuit voltage of 30 V DC are permissible for supplying electrically actuated valves from Festo
Electrical connection 1, functioncontroller side
Electrical connection 1, designround
Electrical connection 1, connection typeplug
Electrical connection 1, connection technologyM12x1, A-coded to EN 61076-2-101
Electrical connection 1, number of pins/wires4
Electrical connection 1, used pins/wires4
Electrical connection 1, type of mountingScrew-type lock with 18 mm hexagon and longitudinal knurl, Rotatable
Electrical connection 1, compatible type of mountingcompatible with rotatable and non-rotatable screw-type lock
Electrical connection 2, functionfield device side
Electrical connection 2, connection typecable
Electrical connection 2, connection technologyscrew terminal
Electrical connection 2, number of pins/wires4
Electrical connection 2, used pins/wires4
Operating voltage range DC0 to 60 V
Operating voltage range AC0 to 48 V
Current rating at 40 °C4 A
Surge immunity1.5 kV
Protective earth connectionnot available
Cable glandPg7
Cable diameter2.1 to 7 mm
Connection cross-section0.14 to 0.75 mm²
Note on connection cross-section0.1 mm² with wire ferrule
Degree of protectionIP65, IP67
Note on degree of protectionin assembled state
Ambient temperature-25 to 90 °C
Note on ambient temperatureobserve derating
LABS (PWIS) conformityVDMA24364-B2-L
Note on materialsRoHS compliant
Pollution degree3
Corrosion resistance class CRC1 - low corrosion stress
Material housingPA66-GF30
Housing colourblack
Material screw-type lockdie-cast zinc, nickel-plated
Material screwssteel, nickel-plated
Material sealsFPM
Material plug contactsbrass, nickel-plated and gold-plated
Weight0.023 kg
ManufacturerFesto
Hersteller-NrNECB-S-M12G4-C2
EAN4052568637033
Zolltarifnummer85366990
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
ColourBlack
MaterialPA66-GF30
Seal materialFPM
NormDIN EN 61076-2-101
Protection ratingIP65
Temperature (max.)90
