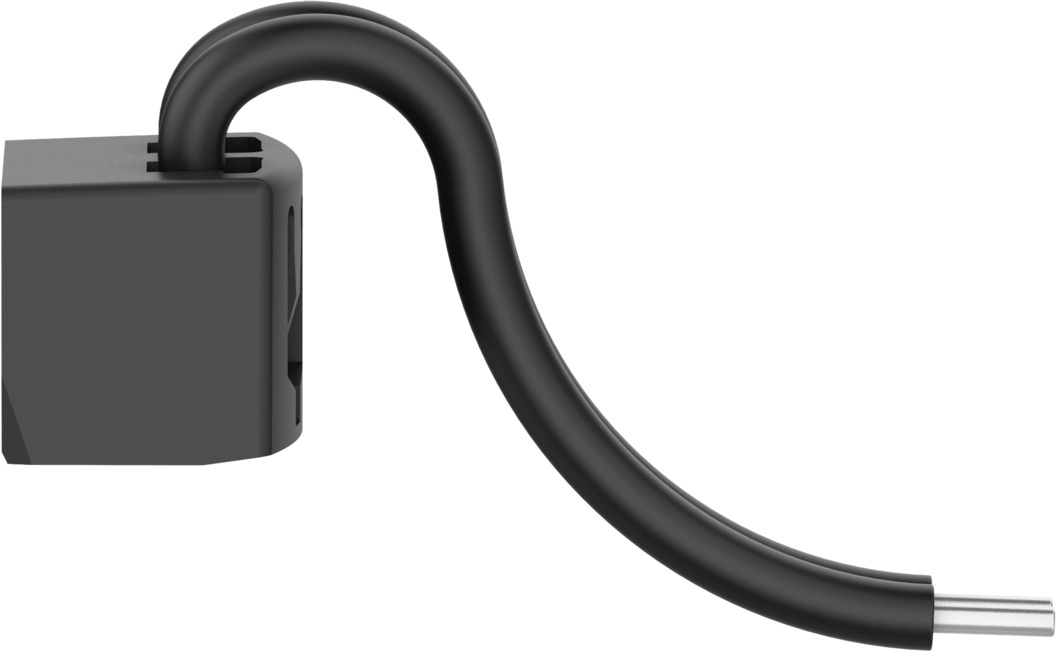

Connecting cable NEBV-Q7G2-PD-0.5-N-LE2 - Festo 8115099
Net
excl. VAT
€5.59
Item
FES-8115099
Manufacturer no.
NEBV-Q7G2-PD-0.5-N-LE2
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Cable designation | Without inscription label holder |
|---|---|
| Frequency of connection | 20 |
| Product weight | 2.3 g |
| Electrical connection 1, function | Field device side |
| Electrical connection 1, design | Square |
| Electrical connection 1, connection type | Socket |
| Electrical connection 1, cable outlet | Straight |
| Electrical connection 1, connector system | Plug pattern Q7 |
| Electrical connection 1, number of connections/cores | 2 |
| Electrical connection 1, used connections/cores | 2 |
| Electrical connection 1, type of mounting | plugged in |
| Electrical connection 1, connection pattern | 00997311 |
| Electrical connection 2, function | Control side |
| Electrical connection 2, connection type | Twin wire |
| Electrical connection 2, connector system | Open end |
| Electrical connection 2, number of connections/cores | 2 |
| Electrical connection 2, used connections/cores | 2 |
| Operational voltage range DC | 0 ... 30 V |
| Current rating at 40° C | 0.3 A |
| Immunity to surge | 1.2 kV |
| Reverse polarity protection | No |
| Protective conductor connection | Not provided |
| Shielding | No |
| Note on operation | Only operate with external power reduction |
| Cable length | 0.5 m |
| Cable characteristic | Basic |
| Test conditions cable | Test conditions on request |
| Bending radius, fixed cable | 11 mm |
| Bending radius, moving cable | 16.5 mm |
| Cable diameter | 1.1 mm |
| Cable structure | 2 x 0.08 mm² |
| Nominal cross section conductor | 0.08 mm² |
| Conductor nominal cross section | AWG28 |
| Wire ends | Tin-plated |
| Degree of protection | IP40 |
| Ambient temperature | 0 ... 50 °C |
| Storage temperature | -20 ... 70 °C |
| CE mark (see declaration of conformity) | In accordance with EU RoHS Directive |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Note on materials | RoHS compliant |
| Corrosion resistance class CRC | 0 - No corrosion stress |
| Material housing | Reinforced PA |
| Housing colour | Black |
| Material electrical contact | Gold-plated copper alloy |
| Material insulating sheath | PVC |
| Weight | 0.003 kg |
| Manufacturer | Festo |
| Hersteller-Nr | NEBV-Q7G2-PD-0.5-N-LE2 |
| EAN | 4052568459581 |
| Zolltarifnummer | 85444290 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
