Connecting cable 2.5 m and 0.5 m, 8-pin M12x1 socket to 4-pin M12x1 plug NEBV-M12G8-KD-3-M12G4 - Festo 547888

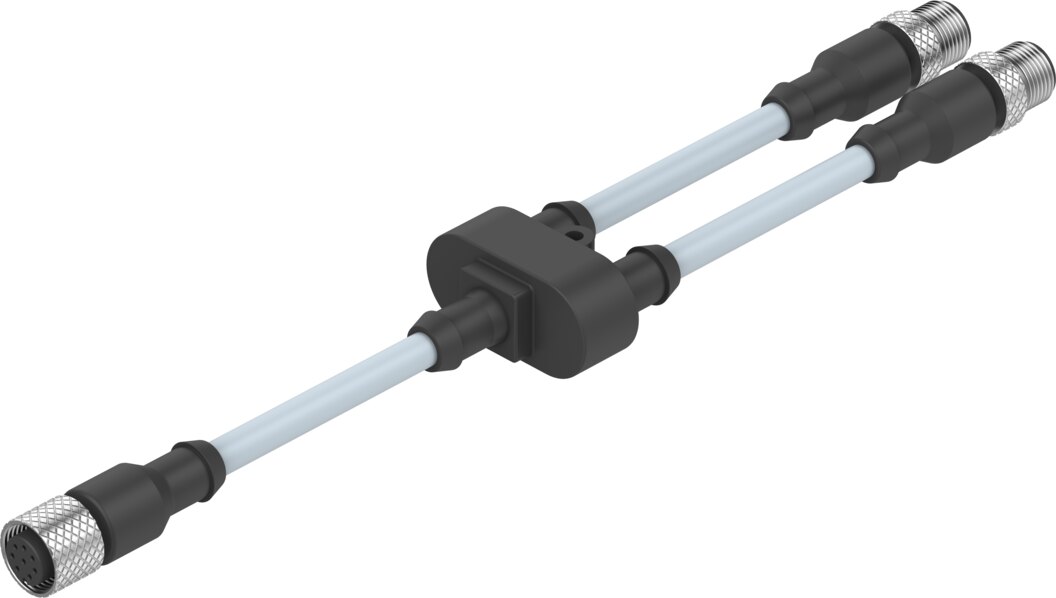

The connecting cable NEBV-M12G8-KD-3-M12G4 has two connection sides: M12x1 A-coded socket (8-pin), straight and M12x1 A-coded plug (4-pin), straight. Additional function: distribution of the analogue inputs and outputs of a proportional pressure regulator. Operating voltage 0 to 30 V DC.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The connecting cable NEBV-M12G8-KD-3-M12G4 has two connection sides: M12x1 A-coded socket (8-pin), straight and M12x1 A-coded plug (4-pin), straight.
Benefits
- Field device side: M12x1 A-coded socket (8-pin), straight
- Control side: M12x1 A-coded plug (4-pin), straight
- Electrical: 2 A at 40 °C, 0 to 30 V DC
- Cable sheath: TPE-U(PUR), halogen-free, shielded
- Environment: IP67, -5 to 80 °C in moving installation
- Additional function: distribution of the analogue inputs and outputs of a proportional pressure regulator
Applications
The halogen-free TPE-U(PUR) sheath is a criterion in plants with fire protection requirements.
Technical data
| Conforms to standard | DIN 47100, EN 61076-2-101 |
|---|---|
| Design | Y-distributor with cables on both sides |
| Distribution type | 1 to 2 |
| Additional functions | Distribution of the analogue inputs and outputs of a proportional pressure regulator |
| Cable designation | Without inscription label holder |
| Type of mounting | Via through-hole for M3 screw |
| Electrical connection 1, function | Field device side |
| Electrical connection 1, design | Round |
| Electrical connection 1, connection type | Socket |
| Electrical connection 1, cable outlet | Straight |
| Electrical connection 1, connector system | M12x1, A-coded to EN 61076-2-101 |
| Electrical connection 1, number of connections/cores | 8 |
| Electrical connection 1, used connections/cores | 5 |
| Electrical connection 1, type of mounting | Screw-type lock |
| Electrical connection 2, function | Control side |
| Electrical connection 2, design | Round |
| Electrical connection 2, connection type | Plug |
| Electrical connection 2, cable outlet | Straight |
| Electrical connection 2, connector system | M12x1, A-coded to EN 61076-2-101 |
| Electrical connection 2, number of connections/cores | 4 |
| Electrical connection 2, used connections/cores | 4 |
| Electrical connection 2, type of mounting | Screw-type lock |
| Electrical connection 3, function | Control side |
| Electrical connection 3, design | Round |
| Electrical connection 3, connection type | Plug |
| Electrical connection 3, cable outlet | Straight |
| Electrical connection 3, connector system | M12x1, A-coded to EN 61076-2-101 |
| Electrical connection 3, number of connections/cores | 4 |
| Electrical connection 3, used connections/cores | 3 |
| Electrical connection 3, type of mounting | Screw-type lock |
| Operational voltage range DC | 0 to 30 V |
| Operational voltage range AC | 0 to 30 V |
| Current rating at 40 °C | 2 A |
| Immunity to surge | 0.8 kV |
| Shielding | Yes |
| Cable length 1 | 2.5 m |
| Cable length 2 | 0.5 m |
| Cable characteristic | Standard |
| Bending radius 1, fixed cable installation | 33 mm |
| Minimum bending radius with free moving insert 1 | 66 mm |
| Bending radius 2, fixed cable installation | 33 mm |
| Minimum bending radius with free moving insert 2 | 66 mm |
| Cable diameter 1 | 6.3 mm |
| Tolerance for cable diameter 1 | ±0.2 mm |
| Cable diameter 2 | 6.3 mm |
| Tolerance for cable diameter 2 | ± 0.2 mm |
| Cable structure | 8 x 0.25 mm² |
| Nominal cross section conductor | 0.25 mm² |
| Degree of protection | IP67 |
| Note on degree of protection | In mounted state |
| Ambient temperature | -25 to 80 °C |
| Ambient temperature with moving cable | -5 to 80 °C |
| CE mark (see declaration of conformity) | In accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) | To UK RoHS instructions |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Note on materials | RoHS compliant, free of halogen |
| Pollution degree | 3 |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| Material cable sheath | TPE-U(PUR) |
| Cable sheath colour | Grey |
| Material housing | TPE-U(PUR) |
| Housing colour | Black |
| Material screw-type lock | Brass, nickel-plated |
| Material seals | NBR |
| Material electrical contact | Brass, nickel-plated and gold-plated |
| Material insulating sheath | PP |
| Weight | 0.26 kg |
| Manufacturer | Festo |
| Hersteller-Nr | NEBV-M12G8-KD-3-M12G4 |
| EAN | 4052568189204 |
| Zolltarifnummer | 85444290 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Colour | Grey |
| Material | TPE-U(PUR) |
| Norm | DIN EN 61076-2-101, DIN 47100 |
| Series | NEBV |
| Protection rating | IP67 |
| Temperature (max.) | 80 |
