Connecting cable socket M12x1, straight, 5-pin to open end, 5-wire 5 m NEBU-M12G5-E-5-Q8N-LE5 - Festo 8078303

Festo ✓ Original product Brand new

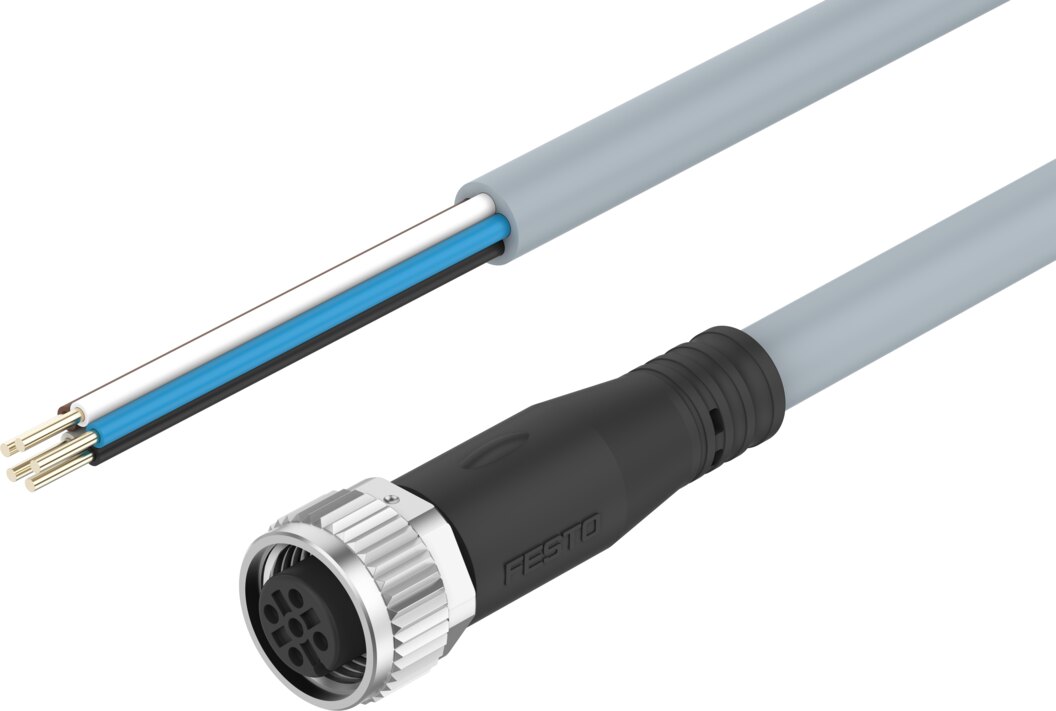

Connects sensors or actuators to the controller. The Festo connecting cable NEBU-M12G5-E-5-Q8N-LE5 comes with socket M12x1, straight, 5-pin on the field device side and open end, 5-wire towards the controller.

Net
€59.77
excl. VAT
Item FES-8078303
Manufacturer no. NEBU-M12G5-E-5-Q8N-LE5
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

Festo connecting cable NEBU-M12G5-E-5-Q8N-LE5: socket M12x1, straight, 5-pin on the field device side, plus open end, 5-wire towards the controller. Connects sensors or actuators to the controller.

Benefits

  • Socket M12x1, straight, 5-pin on the field device side
  • Open end, 5-wire towards the controller
  • Cable length 5 m
  • Cable sheath made of TPE-U(PUR), suitable for energy chains
  • Bending radius fixed installation 21 mm, flexible installation 71 mm
  • Current rating 4 A at 40 °C

Applications

For wiring sensors and valves in machine and plant engineering. For replacements, compare the order code NEBU-M12G5-E-5-Q8N-LE5 with the installed part.

Technical data

FeatureValue
TypeNEBU-M12G5-E-5-Q8N-LE5
Festo part number8078303
Conforms to standardEN 60947-5-2, EN 61076-2-101, IEC 61010-1
Cable labellingwithout label holder
Mating cycles100
Product weight422 g
Electrical connection 1, functionfield device side
Electrical connection 1, designround
Electrical connection 1, connection typesocket
Electrical connection 1, cable outletstraight
Electrical connection 1, connection technologyM12x1, A-coded to EN 61076-2-101
Electrical connection 1, number of pins/wires5
Electrical connection 1, used pins/wires5
Electrical connection 1, type of mountingScrew-type lock with 13 mm hexagon and longitudinal knurl, Rotatable
Electrical connection 1, compatible type of mountingcompatible with rotatable and non-rotatable screw-type lock
Electrical connection 1, pin allocationPin 1 = BN, Pin 2 = WH, Pin 3 = BU, Pin 4 = BK, Pin 5 = GY
Electrical connection 2, functioncontroller side
Electrical connection 2, connection typecable
Electrical connection 2, connection technologyopen end
Electrical connection 2, number of pins/wires5
Electrical connection 2, used pins/wires5
Operating voltage range DC0 to 60 V
Operating voltage range AC0 to 60 V
Current rating at 40 °C4 A
Note on current rating at 40 °Cobserve derating
Surge immunity1.5 kV
Protective earth connectionnot available
Shieldingno
Conductor resistance79.9 Ohm/km
Cable length5 m
Cable characteristicssuitable for energy chains
Cable test conditionsBending strength: to Festo standard, Test conditions on request, Flexural strength: >50000 cycles, bending radius 5 mm, Energy chain: > 5 million cycles, bending radius 75 mm, Acceleration: 10 m/s², Speed: 3 m/s, Travelling distance: 1.8 m
Bending radius, fixed cable installation21 mm
Bending radius, flexible cable installation71 mm
Cable diameter7 mm
Cable diameter tolerance± 0.1 mm
Cable structure5 x 1 mm²
Nominal conductor cross-section1 mm²
Wire endsstripped, cut off bluntly
Degree of protectionIP65, IP68, IP69K
Note on degree of protectionin assembled state
Special propertiesoil-resistant
Vibration resistancetest conditions on request
Shock resistancetest conditions on request
Ambient temperature-25 to 80 °C
Ambient temperature with flexible cable installation-5 to 80 °C
Storage temperature-25 to 80 °C
Relative humiditymax 93% at 40 °C
Nominal altitude of use≤ 2000 m NHN
Overvoltage categoryII
CE marking (see declaration of conformity)to EU Low Voltage Directive, to EU RoHS Directive
UKCA marking (see declaration of conformity)to UK RoHS regulations, to UK electrical equipment regulations
LABS (PWIS) conformityVDMA24364-B2-L
Suitability for the production of Li-ion batteriessuitable for battery production with reduced Cu/Zn/Ni values (F1a)
Note on materialsRoHS compliant, halogen-free, copper-free, free of phosphoric acid esters
Pollution degree3
Note on pollution degreein assembled state
Corrosion resistance class CRC2 - moderate corrosion stress
Material cable sheathTPE-U(PUR)
Cable sheath colourgrey
Material housingTPE-U(PUR)
Housing colourblack
Material screw-type lockbrass, nickel-plated
Material sealsNBR
Material plug contactscopper alloy, gold-plated
Material insulating sleevePP
Weight0.45 kg
ManufacturerFesto
Hersteller-NrNEBU-M12G5-E-5-Q8N-LE5
EAN4052568615406
Zolltarifnummer85444290
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
ColourBlack
MaterialTPE-U(PUR)
Seal materialNBR
min. Biegeradius [mm]21
NormDIN EN 61076-2-101, DIN EN 60947-5-2
SeriesNEBU
Protection ratingIP65
Temperature (max.)80
