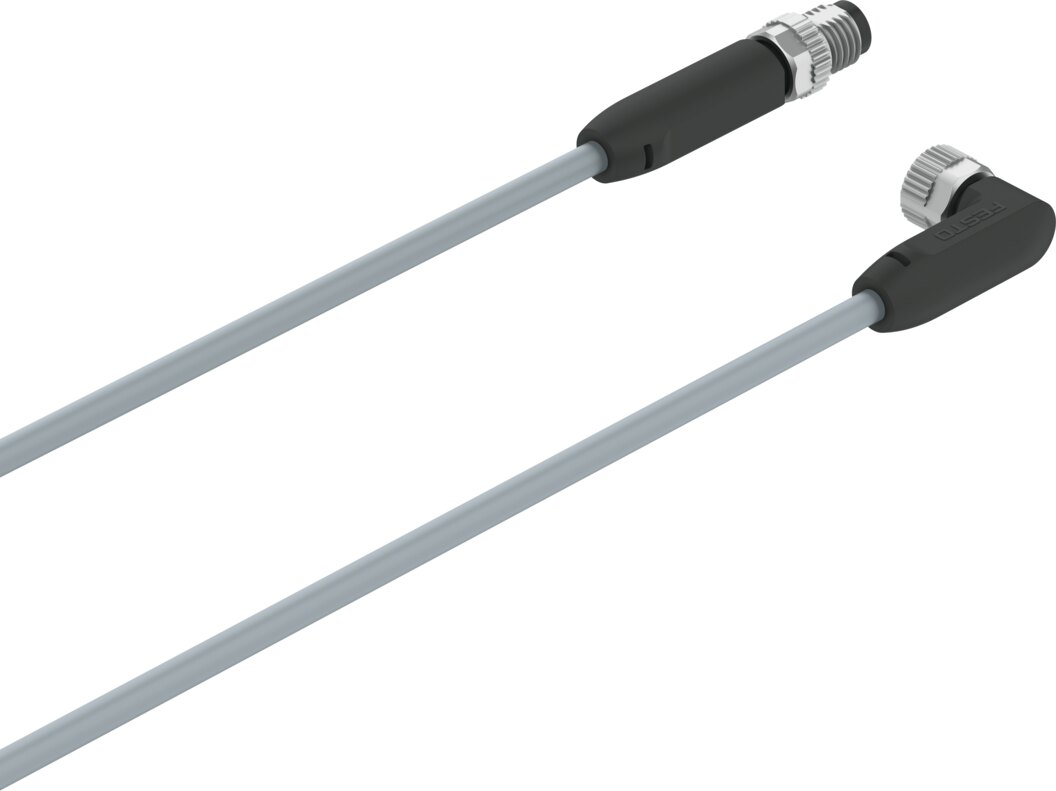

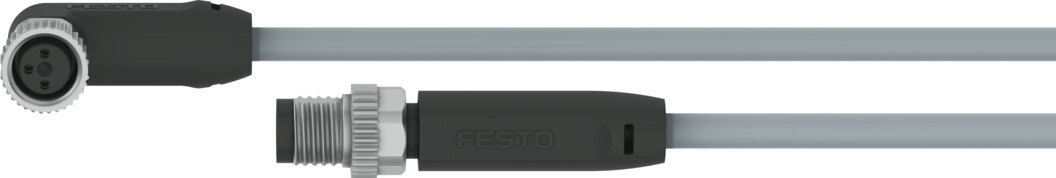

Connecting cable NEBA-M8W3-U-2.5-N-M8G3 - Festo 8078300
Net
excl. VAT
€14.26
Item
FES-8078300
Manufacturer no.
NEBA-M8W3-U-2.5-N-M8G3
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Conforms to standard | EN 61984 |
|---|---|
| Approval | c UL us - Listed (Oil) |
| Intended use | The connecting cable connects field devices (sensors, actuators) with controllers. |
| Explosion protection | The information in the certificate must be observed!, Zone 2 (ATEX), Zone 22 (ATEX) |
| Certificate issuing authority | UL E253748 |
| Cable designation | Without inscription label holder |
| Frequency of connection | 100 |
| Product weight | 54 g |
| Instructions on use | Meets the requirements of IEC 61010-1 and 61010-2-202, in particular for electrically operated valves from Festo., Only energy-limited circuits with a maximum current of 4 A at a max. open circuit voltage of 30 V DC are permissible for supplying electrically actuated valves from Festo. |
| Electrical connection 1, function | Field device side |
| Electrical connection 1, design | Round |
| Electrical connection 1, connection type | Socket |
| Electrical connection 1, cable outlet | Angled |
| Electrical connection 1, connector system | M8x1, A-coded, to EN 61076-2-104 |
| Electrical connection 1, number of connections/cores | 3 |
| Electrical connection 1, used connections/cores | 3 |
| Electrical connection 1, type of mounting | Screw-type lock with hexagon A/F 9 mm and longitudinal knurl, Rotatable |
| Electrical connection 1, compatible type of mounting | Compatible with rotatable/non-rotatable screw-type lock |
| Electrical connection 1, connection pattern | 00991871 |
| Electrical connection 1, terminal allocation | Pin 1 = BN, Pin 3 = BU, Pin 4 = BK |
| Electrical connection 1, display | None |
| Electrical connection 2, function | Control side |
| Electrical connection 2, design | Round |
| Electrical connection 2, connection type | Plug |
| Electrical connection 2, cable outlet | Straight |
| Electrical connection 2, connector system | M8x1, A-coded to EN 61076-2-104 |
| Electrical connection 2, number of connections/cores | 3 |
| Electrical connection 2, used connections/cores | 3 |
| electrical connection 2, type of mounting | Screw-type lock with hexagon A/F 9 mm and longitudinal knurl, Rotatable |
| Electrical connection 2, compatible type of mounting | Compatible with rotatable/non-rotatable screw-type lock |
| Electrical connection 2, connection pattern | 00991155 |
| Electrical connection 2, terminal allocation | Pin 1 = BN, Pin 3 = BU, Pin 4 = BK |
| Electrical connection 2, display | None |
| Operational voltage range DC | 0 ... 60 V |
| Note on operational voltage range DC | 0 - 30 V for UL applications, NEC/CEC CLASS 2 |
| Operational voltage range AC | 0 ... 48 V |
| Note on operational voltage range AC | 0 - 30 V for UL applications, NEC/CEC CLASS 2 |
| Current rating at 40° C | 4 A |
| Note on permissible current load at 40°C | Observe derating |
| Immunity to surge | 1.5 kV |
| Cable length | 2.5 m |
| Cable characteristic | Suitable for energy chains/robot applications, Abrasion-resistant, Low adhesion, Flame-retardant and self-extinguishing |
| Test conditions cable | Test conditions on request, Torsional strength: > 300,000 cycles, ±270°/0.1 m, Flexural strength: >50000 cycles, bending radius 5 mm, Energy chain: > 5 million cycles, bending radius 28 mm |
| Notes on test conditions cable | Tested at 23°C |
| Bending radius, fixed cable | 12 mm |
| Bending radius, moving cable | 39 mm |
| Cable diameter | 3.8 mm |
| Cable structure | 3 x 0.25 mm² |
| Nominal cross section conductor | 0.25 mm² |
| Degree of protection | IP65, IP68, IP69K |
| Note on degree of protection | In mounted state |
| Special characteristics | UV-resistant, Hydrolysis-resistant, Resistant to cooling lubricants, Resistant to microbes, Oil-resistant, Ozone-resistant |
| Outdoor applications | Application areas with direct exposure to outdoor climatic influences Class D1 based on IEC 60654-1 |
| Ambient temperature | -40 ... 85 °C |
| Note on ambient temperature | -40 - 50°C for UL applications |
| Ambient temperature with moving cable | -20 ... 85 °C |
| Note on the ambient temperature with flexible cable installation | -20 - 50°C for UL applications |
| Storage temperature | -25 ... 55 °C |
| Note on storage temperature | Temporarily during transport in packaging -40 ... 85 °C |
| Relative air humidity | Max. 93% at 40 °C |
| Nominal altitude of use | <= 2000 m NHN |
| Overvoltage category | II |
| CE mark (see declaration of conformity) | In accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) | To UK RoHS instructions |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Suitability for the production of Li-ion batteries | Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Cleanroom suitability, measured according to ISO 14644-14 | Class 4 according to ISO 14644-1 |
| Note on materials | CFC-free, RoHS compliant, Cadmium-free, Free of halogen, Free of phosphoric acid ester |
| Pollution degree | 3 |
| Note on the contamination level | In mounted state |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| Material cable sheath | TPE-U(PUR) |
| Cable sheath colour | Grey |
| Material housing | TPE-U(PUR) |
| Housing colour | Black |
| Material screw-type lock | Nickel-plated die-cast zinc |
| Material seals | Fluoro rubber |
| Material electrical contact | Gold-plated copper alloy |
| Material insulating sheath | PP |
| Weight | 0.06 kg |
| Manufacturer | Festo |
| Hersteller-Nr | NEBA-M8W3-U-2.5-N-M8G3 |
| EAN | 4052568626532 |
| Zolltarifnummer | 85444290 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
