Connecting cable socket M12x1, angled, 5-pin to open end, 3-wire 5 m NEBA-M12W5-U-5-N-LE3 - Festo 8078246

Festo ✓ Original product Brand new

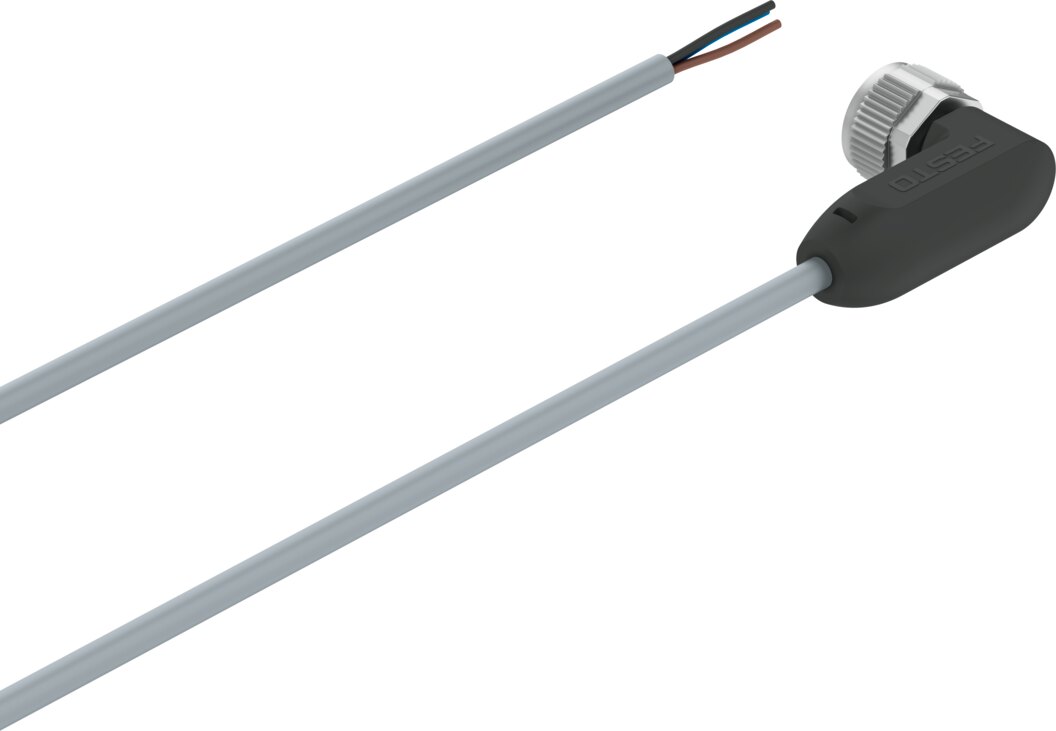

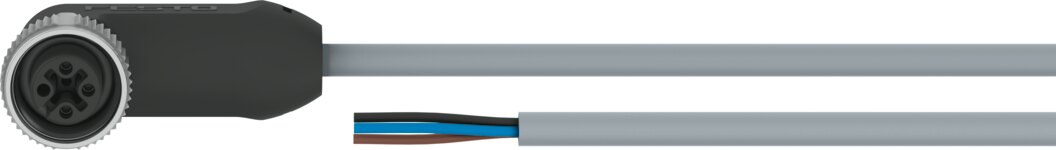

Links the field device to the controller. Festo connecting cable NEBA-M12W5-U-5-N-LE3 comes with socket M12x1, angled, 5-pin on the field device side and open end, 3-wire towards the controller.

Net
€12.85
excl. VAT
Item FES-8078246
Manufacturer no. NEBA-M12W5-U-5-N-LE3
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

Socket M12x1, angled, 5-pin on the field device side and open end, 3-wire towards the controller: these are the key data of the Festo connecting cable NEBA-M12W5-U-5-N-LE3. Links the field device to the controller.

Benefits

  • Socket M12x1, angled, 5-pin on the field device side
  • Open end, 3-wire towards the controller
  • Cable length 5 m
  • Cable sheath made of TPE-U(PUR), suitable for energy chains and robots, abrasion-resistant, low adhesion, flame-retardant and self-extinguishing
  • Bending radius fixed installation 12 mm, flexible installation 39 mm
  • Current rating 4 A at 40 °C

Applications

For wiring sensors and valves in machine and plant engineering. To reorder, the type NEBA-M12W5-U-5-N-LE3 or Festo number 8078246 is sufficient.

Technical data

FeatureValue
TypeNEBA-M12W5-U-5-N-LE3
Festo part number8078246
Conforms to standardEN 61076-2-101, EN 61984
Certificationc UL us - Listed (OL)
Intended useThe connecting cable links field devices (sensors, actuators) to controllers
Explosion protectionThe information in the certificate must be observed, Zone 2 (ATEX), Zone 22 (ATEX)
Certificate issuing authorityUL E253748
Cable labellingwithout label holder
Mating cycles100
Product weight103 g
Application noteMeets the requirements of IEC 61010-1 and 61010-2-202, in particular for electrically operated valves from Festo, only energy-limited circuits with a maximum current of 4 A at a maximum open circuit voltage of 30 V DC are permissible for supplying electrically actuated valves from Festo
Electrical connection 1, functionfield device side
Electrical connection 1, designround
Electrical connection 1, connection typesocket
Electrical connection 1, cable outletangled
Electrical connection 1, connection technologyM12x1, A-coded to EN 61076-2-101
Electrical connection 1, number of pins/wires5
Electrical connection 1, used pins/wires3
Electrical connection 1, type of mountingScrew-type lock with 13 mm hexagon and longitudinal knurl, Rotatable
Electrical connection 1, compatible type of mountingcompatible with rotatable and non-rotatable screw-type lock
Electrical connection 1, pin allocationPin 1 = BN, Pin 3 = BU, Pin 4 = BK
Electrical connection 1, displaynone
Electrical connection 2, functioncontroller side
Electrical connection 2, connection typecable
Electrical connection 2, connection technologyopen end
Electrical connection 2, number of pins/wires3
Electrical connection 2, used pins/wires3
Electrical connection 2, pin allocationPin 1 = BN, Pin 3 = BU, Pin 4 = BK
Electrical connection 2, displaynone
Operating voltage range DC0 to 250 V
Note on operating voltage range DC0 - 30 V for UL applications, NEC/CEC CLASS 2
Operating voltage range AC0 to 250 V
Note on operating voltage range AC0 - 30 V for UL applications, NEC/CEC CLASS 2
Current rating at 40 °C4 A
Note on current rating at 40 °Cobserve derating
Surge immunity2.5 kV
Cable length5 m
Cable characteristicssuitable for energy chains and robots, abrasion-resistant, low adhesion, flame-retardant and self-extinguishing
Cable test conditionsTest conditions on request, Torsional strength: > 300.000 cycles, ±270°/0.1 m, Flexural strength: >50000 cycles, bending radius 5 mm, Energy chain: > 5 million cycles, bending radius 28 mm
Note on cable test conditionstested at 23 °C
Bending radius, fixed cable installation12 mm
Bending radius, flexible cable installation39 mm
Cable diameter3.8 mm
Cable structure3 x 0.25 mm²
Nominal conductor cross-section0.25 mm²
Wire endsstripped, cut off bluntly
Degree of protectionIP65, IP68, IP69K
Note on degree of protectionin assembled state
Special propertiesUV-resistant, hydrolysis-resistant, resistant to coolants, microbe-resistant, oil-resistant, ozone-resistant
Outdoor uselocations with direct exposure to outdoor climate, class D1 based on IEC 60654-1
Ambient temperature-40 to 85 °C
Note on ambient temperature-40 - 50°C for UL applications
Ambient temperature with flexible cable installation-20 to 85 °C
Note on ambient temperature with flexible cable installation-20 - 50°C for UL applications
Storage temperature-25 to 55 °C
Note on storage temperatureTemporarily during transport in packaging -40 to 85 °C
Relative humiditymax 93% at 40 °C
Nominal altitude of use≤ 2000 m NHN
Overvoltage categoryII
CE marking (see declaration of conformity)to EU Low Voltage Directive, to EU RoHS Directive
UKCA marking (see declaration of conformity)to UK RoHS regulations, to UK electrical equipment regulations
LABS (PWIS) conformityVDMA24364-B2-L
Suitability for the production of Li-ion batteriessuitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured to ISO 14644-14class 4 to ISO 14644-1
Note on materialsCFC-free, RoHS compliant, cadmium-free, halogen-free, free of phosphoric acid esters
Pollution degree3
Note on pollution degreein assembled state
Corrosion resistance class CRC1 - low corrosion stress
Material cable sheathTPE-U(PUR)
Cable sheath colourgrey
Material housingTPE-U(PUR)
Housing colourblack
Material screw-type lockdie-cast zinc, nickel-plated
Material sealsFPM
Material plug contactscopper alloy, gold-plated
Material insulating sleevePP
Weight0.11 kg
ManufacturerFesto
Hersteller-NrNEBA-M12W5-U-5-N-LE3
EAN4052568626020
Zolltarifnummer85444290
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
ColourBlack
MaterialTPE-U(PUR)
Seal materialFPM
min. Biegeradius [mm]12
NormDIN EN 61076-2-101, DIN EN 61984
Protection ratingIP65
Temperature (max.)85
