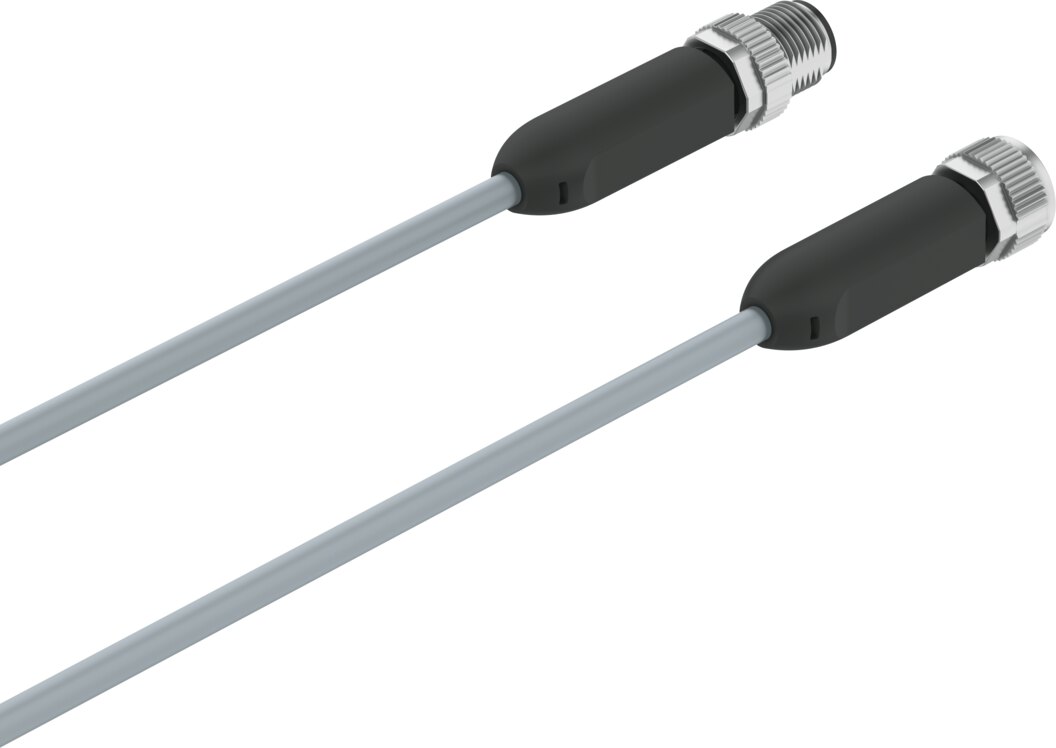

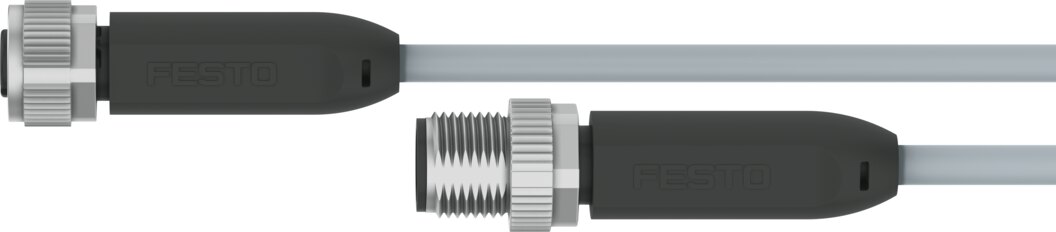

Connecting cable socket M12x1, straight, 5-pin to plug M12x1, straight, 5-pin 5 m NEBA-M12G5-U-5-N-M12G5 - Festo 8078277
Links the field device to the controller. The Festo connecting cable NEBA-M12G5-U-5-N-M12G5 comes with socket M12x1, straight, 5-pin on the field device side and plug M12x1, straight, 5-pin towards the controller.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Socket M12x1, straight, 5-pin on the field device side and plug M12x1, straight, 5-pin towards the controller: these are the key data of the Festo connecting cable NEBA-M12G5-U-5-N-M12G5. Links the field device to the controller.
Benefits
- Socket M12x1, straight, 5-pin on the field device side
- Plug M12x1, straight, 5-pin towards the controller
- Cable length 5 m
- Cable sheath made of TPE-U(PUR), suitable for energy chains and robots, abrasion-resistant, low adhesion, flame-retardant and self-extinguishing
- Bending radius fixed installation 14 mm, flexible installation 46 mm
- Current rating 4 A at 40 °C
Applications
For wiring sensors and valves in machine and plant engineering. The order code NEBA-M12G5-U-5-N-M12G5 defines the version unambiguously.
Technical data
| Feature | Value |
|---|---|
| Type | NEBA-M12G5-U-5-N-M12G5 |
| Festo part number | 8078277 |
| Conforms to standard | EN 61984 |
| Certification | c UL us - Listed (OL) |
| Intended use | The connecting cable links field devices (sensors, actuators) to controllers |
| Explosion protection | The information in the certificate must be observed, Zone 2 (ATEX), Zone 22 (ATEX) |
| Certificate issuing authority | UL E253748 |
| Cable labelling | without label holder |
| Mating cycles | 100 |
| Product weight | 153 g |
| Application note | Meets the requirements of IEC 61010-1 and 61010-2-202, in particular for electrically operated valves from Festo, only energy-limited circuits with a maximum current of 4 A at a maximum open circuit voltage of 30 V DC are permissible for supplying electrically actuated valves from Festo |
| Electrical connection 1, function | field device side |
| Electrical connection 1, design | round |
| Electrical connection 1, connection type | socket |
| Electrical connection 1, cable outlet | straight |
| Electrical connection 1, connection technology | M12x1, A-coded to EN 61076-2-101 |
| Electrical connection 1, number of pins/wires | 5 |
| Electrical connection 1, used pins/wires | 5 |
| Electrical connection 1, type of mounting | Screw-type lock with 13 mm hexagon and longitudinal knurl, Rotatable |
| Electrical connection 1, compatible type of mounting | compatible with rotatable and non-rotatable screw-type lock |
| Electrical connection 1, pin allocation | Pin 1 = BN, Pin 2 = WH, Pin 3 = BU, Pin 4 = BK, Pin 5 = GY |
| Electrical connection 1, display | none |
| Electrical connection 2, function | controller side |
| Electrical connection 2, design | round |
| Electrical connection 2, connection type | plug |
| Electrical connection 2, cable outlet | straight |
| Electrical connection 2, connection technology | M12x1, A-coded to EN 61076-2-101 |
| Electrical connection 2, number of pins/wires | 5 |
| Electrical connection 2, used pins/wires | 5 |
| Electrical connection 2, type of mounting | Screw-type lock with 13 mm hexagon and longitudinal knurl, Rotatable |
| Electrical connection 2, compatible type of mounting | compatible with rotatable and non-rotatable screw-type lock |
| Electrical connection 2, pin allocation | Pin 1 = BN, Pin 2 = WH, Pin 3 = BU, Pin 4 = BK, Pin 5 = GY |
| Electrical connection 2, display | none |
| Operating voltage range DC | 0 to 60 V |
| Note on operating voltage range DC | 0 - 30 V for UL applications, NEC/CEC CLASS 2 |
| Operating voltage range AC | 0 to 48 V |
| Note on operating voltage range AC | 0 - 30 V for UL applications, NEC/CEC CLASS 2 |
| Current rating at 40 °C | 4 A |
| Note on current rating at 40 °C | observe derating |
| Surge immunity | 1.5 kV |
| Cable length | 5 m |
| Cable characteristics | suitable for energy chains and robots, abrasion-resistant, low adhesion, flame-retardant and self-extinguishing |
| Cable test conditions | Test conditions on request, Torsional strength: > 300.000 cycles, ±270°/0.1 m, Flexural strength: >50000 cycles, bending radius 5 mm, Energy chain: > 5 million cycles, bending radius 28 mm |
| Note on cable test conditions | tested at 23 °C |
| Bending radius, fixed cable installation | 14 mm |
| Bending radius, flexible cable installation | 46 mm |
| Cable diameter | 4.5 mm |
| Cable structure | 5 x 0.25 mm² |
| Nominal conductor cross-section | 0.25 mm² |
| Degree of protection | IP65, IP68, IP69K |
| Note on degree of protection | in assembled state |
| Special properties | UV-resistant, hydrolysis-resistant, resistant to coolants, microbe-resistant, oil-resistant, ozone-resistant |
| Outdoor use | locations with direct exposure to outdoor climate, class D1 based on IEC 60654-1 |
| Ambient temperature | -40 to 85 °C |
| Note on ambient temperature | -40 - 50°C for UL applications |
| Ambient temperature with flexible cable installation | -20 to 85 °C |
| Note on ambient temperature with flexible cable installation | -20 - 50°C for UL applications |
| Storage temperature | -25 to 55 °C |
| Note on storage temperature | Temporarily during transport in packaging -40 to 85 °C |
| Relative humidity | max 93% at 40 °C |
| Nominal altitude of use | ≤ 2000 m NHN |
| Overvoltage category | II |
| CE marking (see declaration of conformity) | to EU RoHS Directive |
| UKCA marking (see declaration of conformity) | to UK RoHS regulations |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Suitability for the production of Li-ion batteries | suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Cleanroom suitability, measured to ISO 14644-14 | class 4 to ISO 14644-1 |
| Note on materials | CFC-free, RoHS compliant, cadmium-free, halogen-free, free of phosphoric acid esters |
| Pollution degree | 3 |
| Note on pollution degree | in assembled state |
| Corrosion resistance class CRC | 1 - low corrosion stress |
| Material cable sheath | TPE-U(PUR) |
| Cable sheath colour | grey |
| Material housing | TPE-U(PUR) |
| Housing colour | black |
| Material screw-type lock | die-cast zinc, nickel-plated |
| Material seals | FPM |
| Material plug contacts | copper alloy, gold-plated |
| Material insulating sleeve | PP |
| Manufacturer | Festo |
| Hersteller-Nr | NEBA-M12G5-U-5-N-M12G5 |
| EAN | 4052568626310 |
| Zolltarifnummer | 85444290 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Colour | Black |
| Material | TPE-U(PUR) |
| Seal material | FPM |
| min. Biegeradius [mm] | 14 |
| Norm | DIN EN 61984 |
| Protection rating | IP65 |
| Temperature (max.) | 85 |
