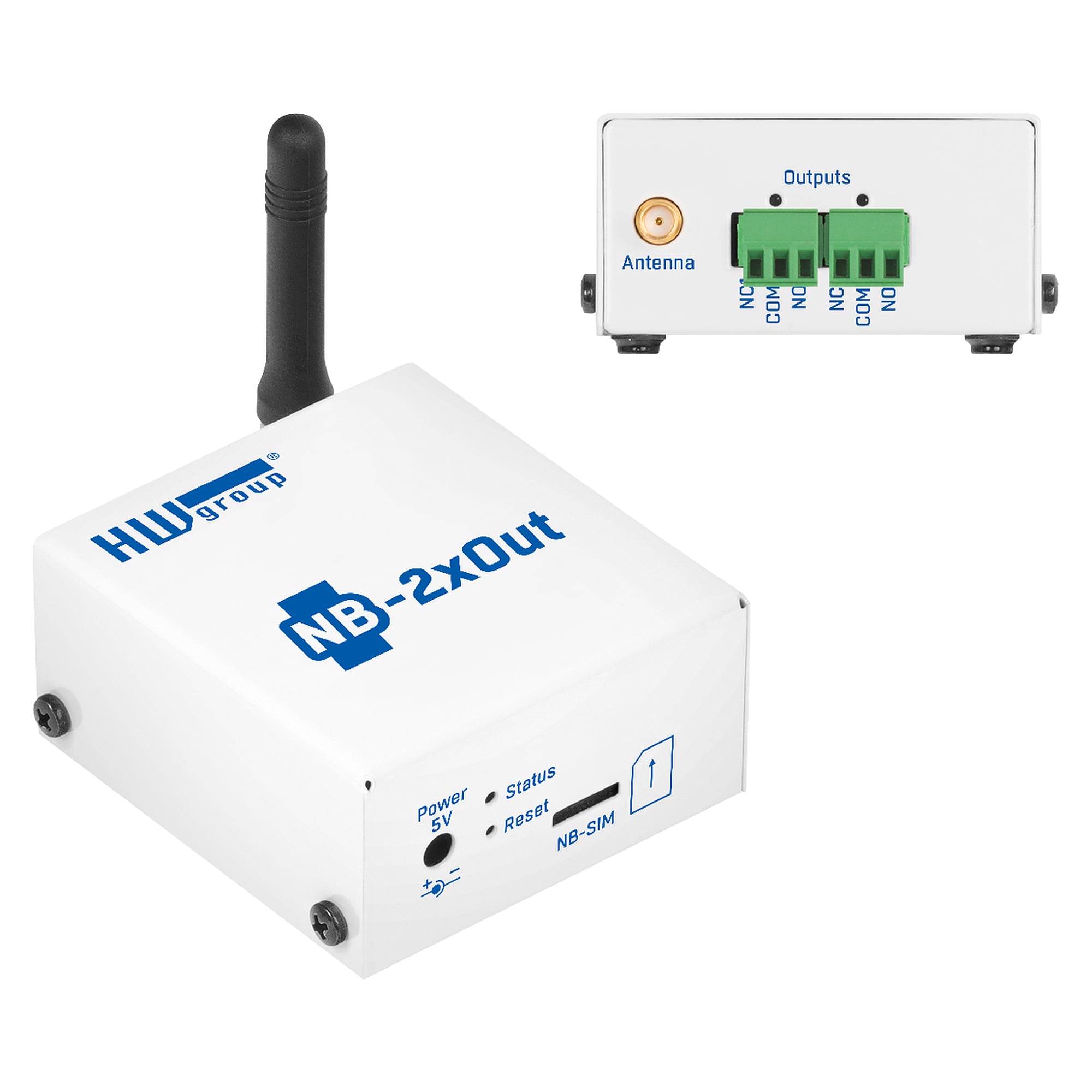

NB-IoT relay module set NB-2xOUT, 2 latching relay outputs, SIM with 3 years service, power adapter - HW group 600781

Need to switch pumps, heaters or warning lights at a site with no LAN? The NB-2xOUT does it without any network cabling. Its two latching relays are controlled over NB-IoT from the portal, either by hand or triggered by alarms from other devices and sensors, and the internal battery lasts up to 3 years.

Benefits

• No network connection required: NB-IoT connectivity with a SIM card carrying 3 years of prepaid service in the box.
• Independent of mains power: internal Li-MnO2 battery with up to 3 years of lifetime, or external 5 V DC supply.
• Automated actions: outputs can switch on alarms from other HW group devices or sensors.
• Two relay outputs rated for loads up to 120 V AC or 60 V DC at 500 mA.
• Firmware updates and configuration handled remotely through the portal.
• Metal housing rated IP40 for operating temperatures from -10 to +70 °C.

Applications

• Manual or automated control of equipment at remote sites
• Heating control in thermostat mode
• Pumping water into a tank when the level drops
• Switching on warning lights or horns when alarms occur in plant rooms

Compatibility

• Portals: HWg-cloud.com (free, default), SensDesk.com and other portals based on SensDesk Technology
• 3-year connectivity extension: HW group 600854
