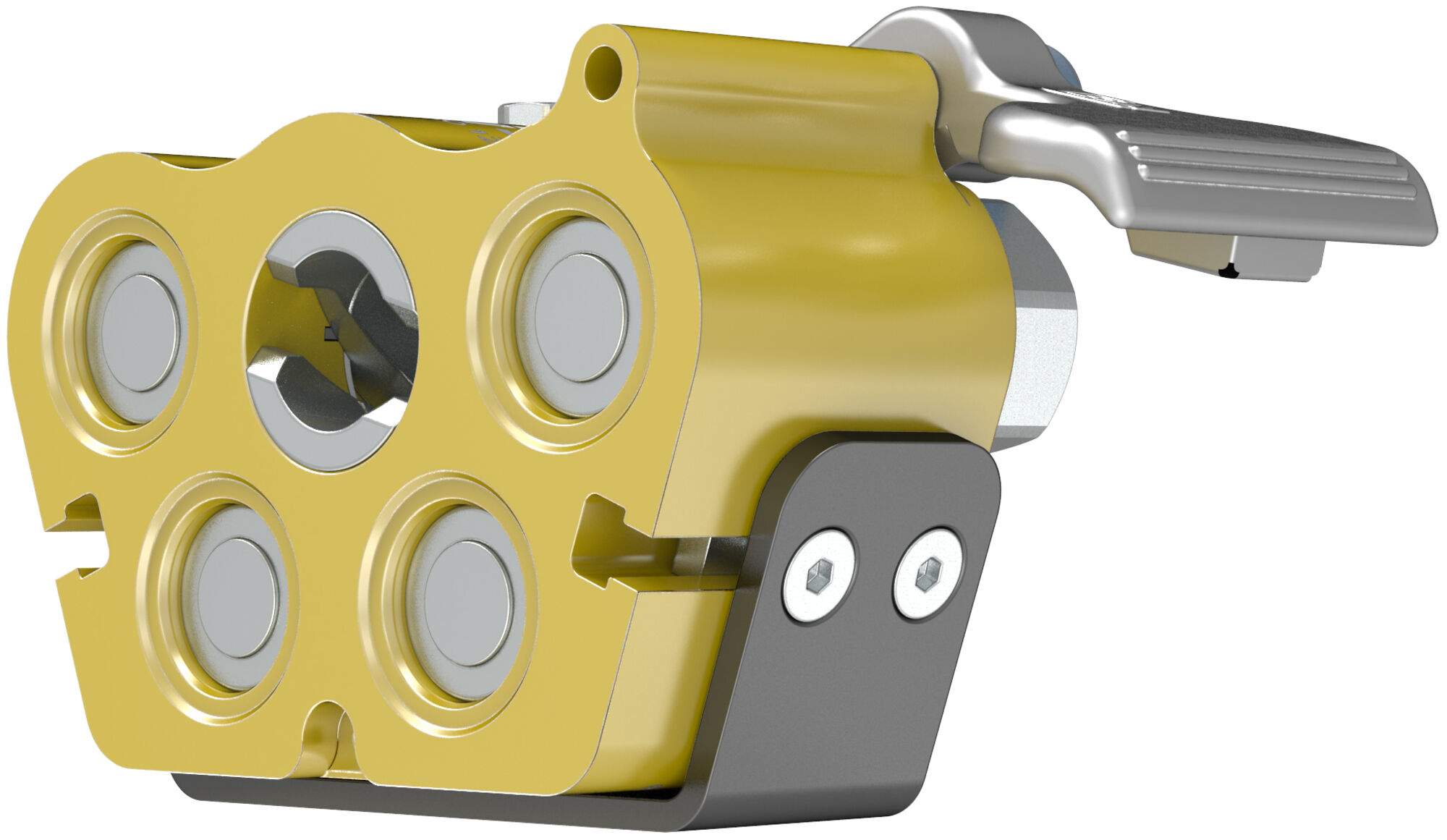

Multi-X multi coupling, female plate Quattro 12.5, 4 connections, G 1/2", 12.5 mm, aluminium - Cejn 109324201
With this female plate of Multi-X size Quattro 12.5, 4 hydraulic lines are disconnected and reconnected in one move. Nominal flow diameter 12.5 mm, connection G 1/2", material aluminium.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
This female plate belongs to Multi-X size Quattro 12.5 and takes 4 lines with a nominal flow diameter of 12.5 mm. Coupling is done by hand against the matching male plate.
Benefits
- Size Quattro 12.5, 1/2" in inch.
- Plate body made of aluminium.
- Version GII of the Multi-X series.
- Weight 2.9 kg.
- 4 hydraulic connections are coupled by hand in one move.
- Connection thread G 1/2" (BSP) per line.
- Nominal flow diameter of 12.5 mm in the through bore.
Applications
It is used wherever 4 hydraulic lines are released frequently and a mix-up of the individual lines has to be ruled out.
Matching counterpart
The plate matches the male plate of Multi-X size Quattro 12.5 in version GII.
Technical data
| Property | Value |
|---|---|
| Series | Quattro 12.5 |
| Version | Female plate |
| Size in inch | 1/2" |
| Number of connections | 4 |
| Connection | G 1/2" (BSP) |
| Nominal flow diameter | 12.5 mm |
| Main material | Aluminum |
| Media | Hydraulic oil |
| Weight | 2.9 kg |
| Packaging unit | 1 piece |
| Manufacturer | Cejn |
| Hersteller-Nr | 109324201 |
| Zolltarifnummer | 84812010 |
| GPSR Herstellerdaten | CEJN-Product GmbH, Junkersring 16, DE-53844 Troisdorf, www.cejn.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
