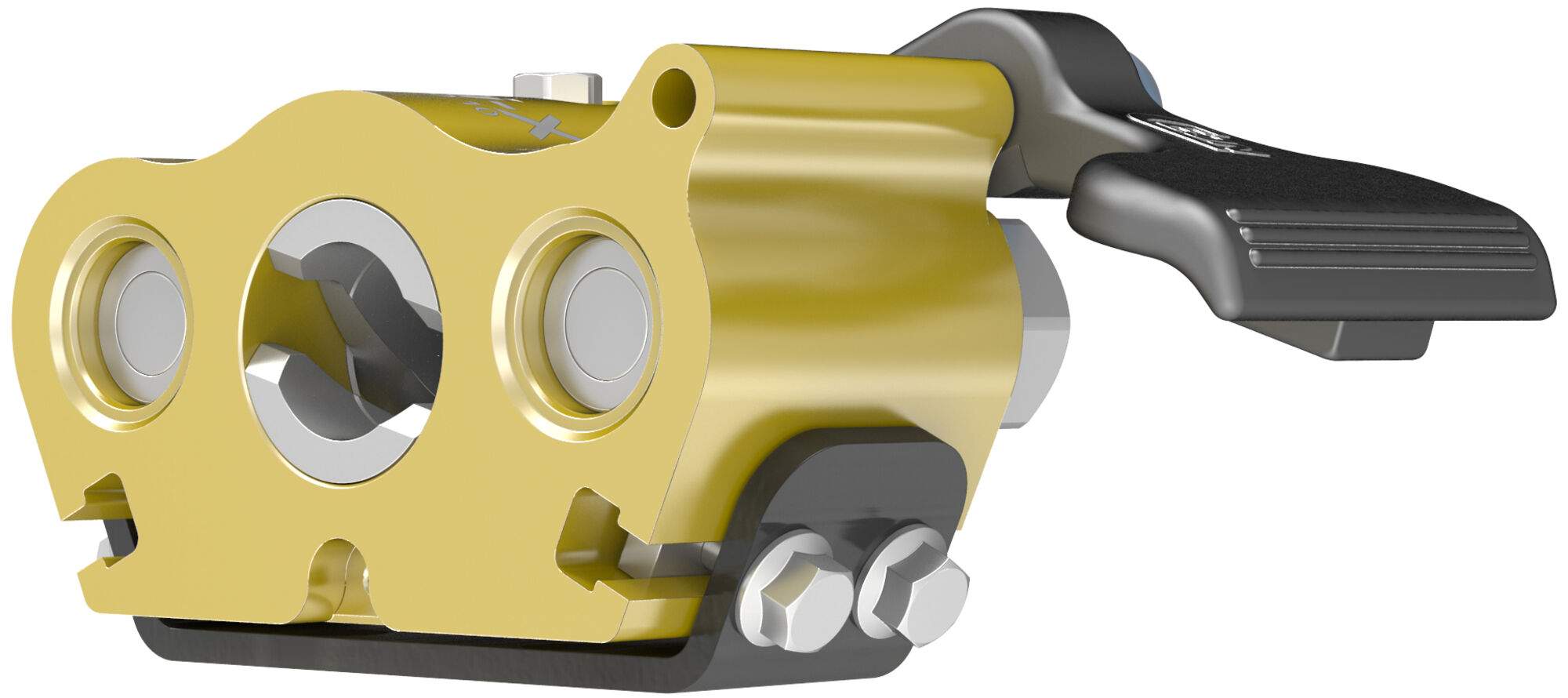

Multi-X multi coupling, female plate Duo 10, 2 connections, G 3/8", 10 mm, aluminium - Cejn 109322200
Multi-X female plate in size Duo 10 with 2 connections of nominal flow diameter 10 mm. The lines are connected through G 3/8". Plate body made of aluminium.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
This female plate belongs to Multi-X size Duo 10 and takes 2 lines with a nominal flow diameter of 10 mm. Coupling is done by hand against the matching male plate.
Benefits
- Nominal flow diameter of 10 mm in the through bore.
- Size Duo 10, 3/8" in inch.
- Plate body made of aluminium.
- Version GII of the Multi-X series.
- Weight 1.8 kg.
- 2 hydraulic connections are coupled by hand in one move.
- Connection thread G 3/8" (BSP) per line.
Applications
A typical use is on machines and power units with changeable equipment where 2 lines are coupled in one operation.
Matching counterpart
The plate matches the male plate of Multi-X size Duo 10 in version GII.
Technical data
| Property | Value |
|---|---|
| Series | Duo 10 |
| Version | Female plate |
| Size in inch | 3/8" |
| Number of connections | 2 |
| Connection | G 3/8" (BSP) |
| Nominal flow diameter | 10 mm |
| Main material | Aluminum |
| Media | Hydraulic oil |
| Weight | 1.8 kg |
| Packaging unit | 1 piece |
| Manufacturer | Cejn |
| Hersteller-Nr | 109322200 |
| Zolltarifnummer | 84812010 |
| GPSR Herstellerdaten | CEJN-Product GmbH, Junkersring 16, DE-53844 Troisdorf, www.cejn.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
