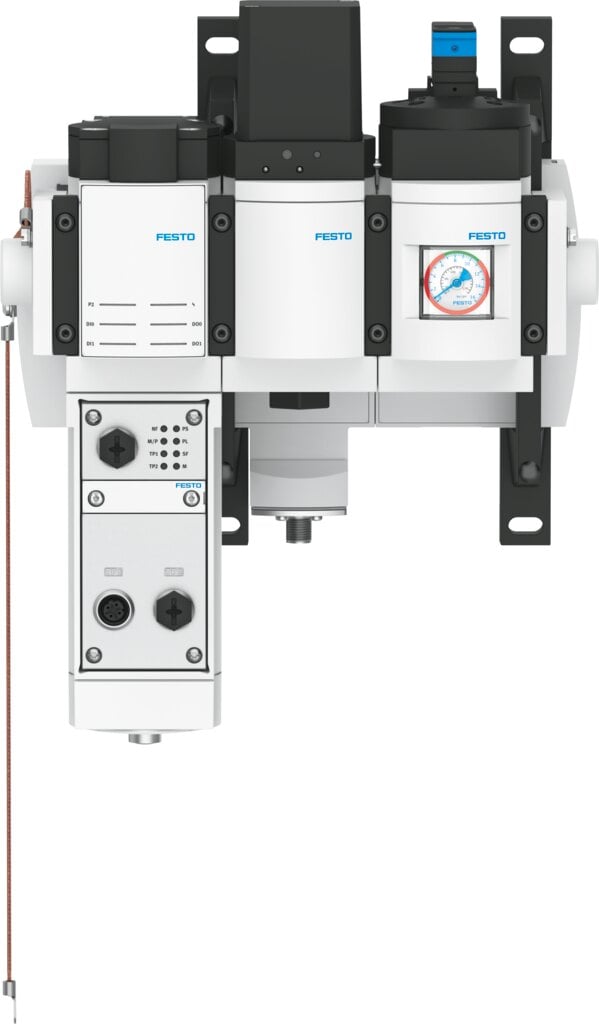

Energy efficiency module MSE6-C2M-5000-FB43-D-M-RG-BAR-M12L4-MQ1-AGD - Festo 8169407
Net
excl. VAT
€2,743.56
Item
FES-8169407
Manufacturer no.
MSE6-C2M-5000-FB43-D-M-RG-BAR-M12L4-MQ1-AGD
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Size | 6 |
|---|---|
| Series | MSE |
| Mounting position | ±5° horizontal |
| Valve function | 2/2-way, single solenoid, open |
| Type of reset | Mechanical spring |
| Operating pressure | 5 ... 11 bar |
| Pressure regulation range | 2.5 ... 10 bar |
| Max. pressure hysteresis | 0.3 bar |
| Standard nominal flow rate (standardised to DIN 1343) | 7000 l/min |
| Duty cycle | 100% |
| Max. current consumption, load | 0.26 A |
| Max. current consumption, logic | 0.32 A |
| Max. resultant current | 1 A |
| Approval | RCM |
| KC mark | KC-EMV |
| CE mark (see declaration of conformity) | To EU EMC Directive, In accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) | To UK RoHS instructions |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation not possible |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -10 ... 60 °C |
| Media temperature | 0 ... 50 °C |
| Degree of protection | IP65, With plug socket |
| Ambient temperature | 0 ... 50 °C |
| Product weight | 4455 g |
| Electrical connection | M12x1, L-coded to EN 61076-2-111 |
| Pneumatic connection, port 1 | G1/2 |
| Pneumatic connection, port 2 | G1/2 |
| Material seals | NBR |
| Material housing | Die-cast aluminium |
| Material covering | Reinforced PA |
| Material cover | Reinforced PA |
| Field bus interface | 2x socket, M12x1, 4-pin, D-coded |
| Operating voltage range DC electronics/sensors | 18 ... 30 V |
| Operating voltage DC load voltage | 21.6 ... 28.8 V |
| Reverse polarity protection | For operating voltage connections |
| Displayable units | kPa, l, l/min, m3, mbar, psi, scf, scfm |
| Start value for flow rate measuring range | 50 l/min |
| End value for flow rate measuring range | 5000 l/min |
| Accuracy of flow rate | ± (3% o.m.v. + 0.3% FS) |
| Start value for pressure measuring range | 0 bar |
| End value for pressure measuring range | 14 bar |
| Accuracy in ± % FS | 3 %FS |
| Number of inputs | 2 |
| Switching logic for inputs | PNP (positive switching) |
| Number of outputs | 2 |
| Switching logic for outputs | PNP (positive switching) |
| Max. power supply per channel | 1 A (12 W lamp load) |
| Manufacturer | Festo |
| Hersteller-Nr | MSE6-C2M-5000-FB43-D-M-RG-BAR-M12L4-MQ1-AGD |
| EAN | 4052568613402 |
| Zolltarifnummer | 90268020 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
