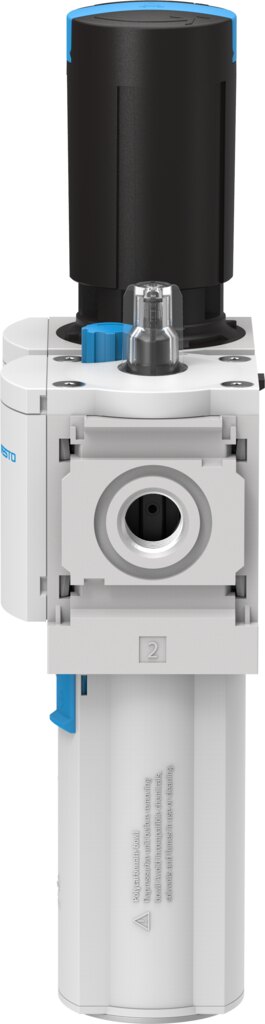

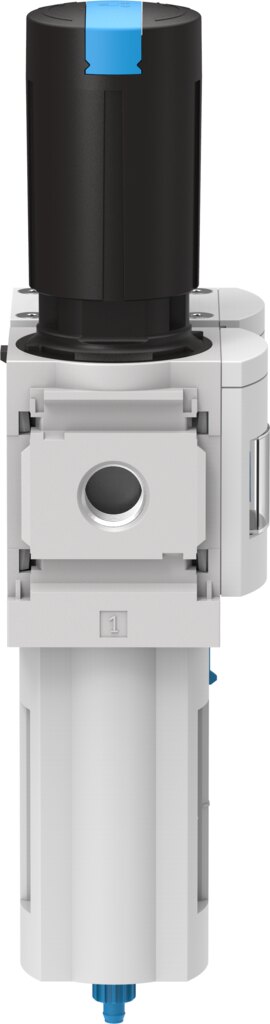

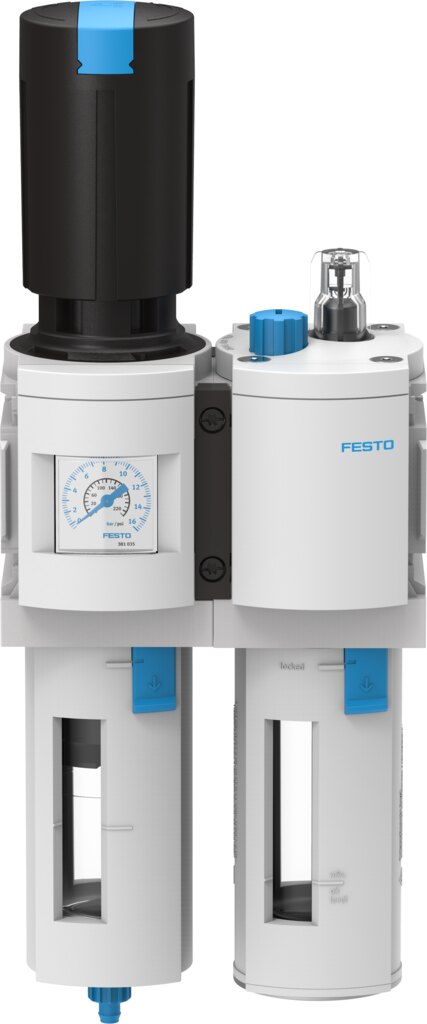

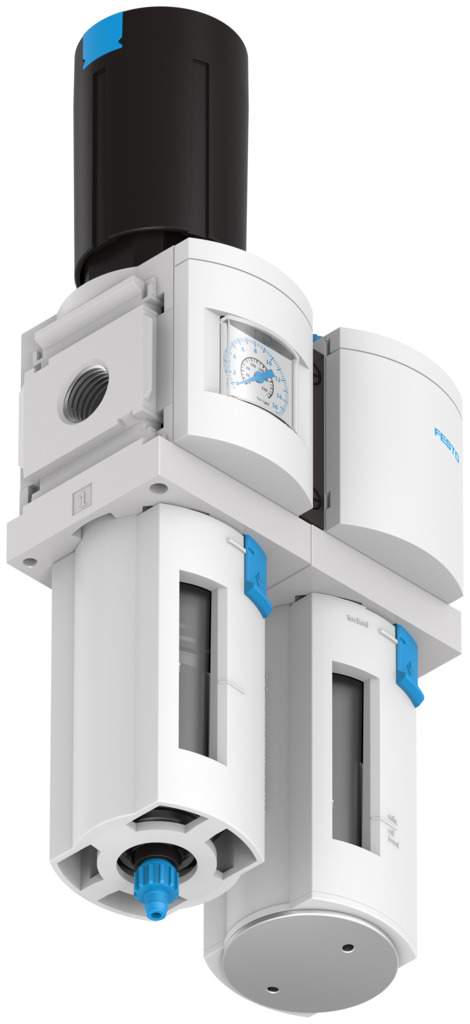

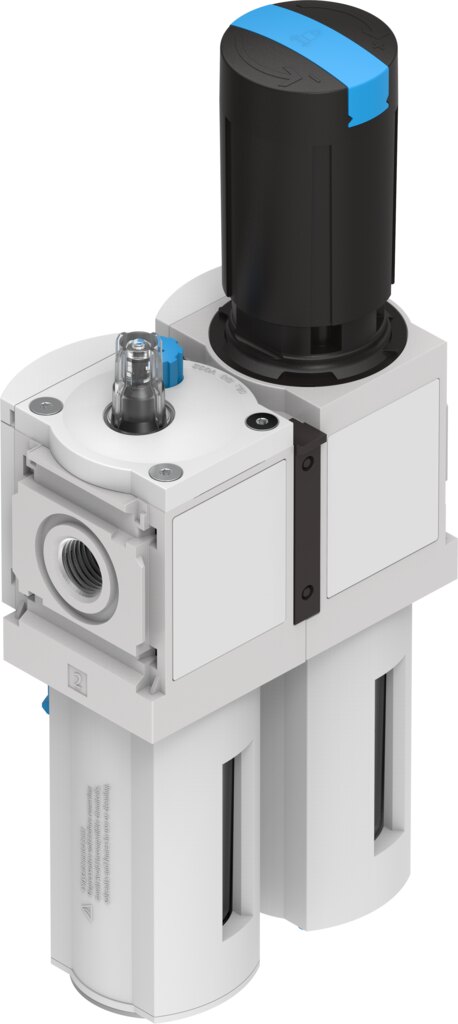

Service unit combination MSB6N-3/8-FRC3:J7M1 - Festo 534037
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Size | 6 |
|---|---|
| Series | MS |
| Actuator lock | Rotary knob with integrated lock |
| Mounting position | Vertical +/-5° |
| Grade of filtration | 5 µm |
| Condensate drain | Manual, rotating |

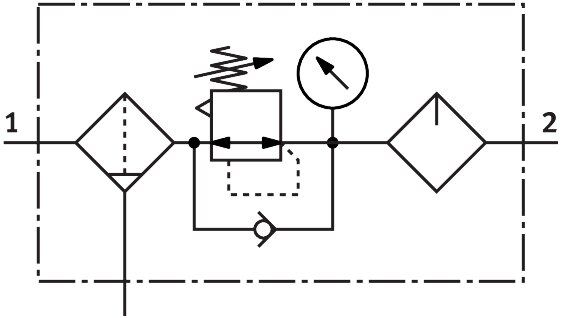

| Design | Filter regulator with pressure gauge, Proportional standard mist lubricator |
| Controller function | Output pressure constant, With primary pressure compensation, With secondary exhausting, With return flow function |
| Bowl guard | Plastic bowl guard |
| Pressure gauge (ANALOG) or Pressure display (DIGITAL) | With pressure gauge |
| Operating pressure | 1.5 ... 20 bar |
| Pressure regulation range | 0.3 ... 7 bar |
| Standard nominal flow rate (standardised to DIN 1343) | 4400 l/min |
| Operating medium | Inert gas |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -10 ... 60 °C |
| Suitable for use with food | See supplementary material information |
| Air purity class at output | Compressed air to ISO 8573-1:2010 [6:4:-] |
| Media temperature | -10 ... 60 °C |
| Ambient temperature | -10 ... 60 °C |
| Product weight | 1495 g |
| Type of mounting | With accessories |
| Pneumatic connection, port 1 | 3/8 NPT |
| Pneumatic connection, port 2 | 3/8 NPT |
| Note on materials | RoHS compliant |
| Manufacturer | Festo |
| Hersteller-Nr | MSB6N-3/8-FRC3:J7M1 |
| EAN | 4052568341961 |
| Zolltarifnummer | 84811005 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
