Wartungsgeräte-Kombination MSB4N-1/4:H4N3M1-WP - Festo 541434
Wartungsgeräte-Kombination MSB4N-1/4:H4N3M1-WP - Festo 541434 Wartungsgeräte-Kombination MSB4N-1/4:H4N3M1-WP - Festo 541434

Images are examples, some edited with AI. The technical data are authoritative. AI notice

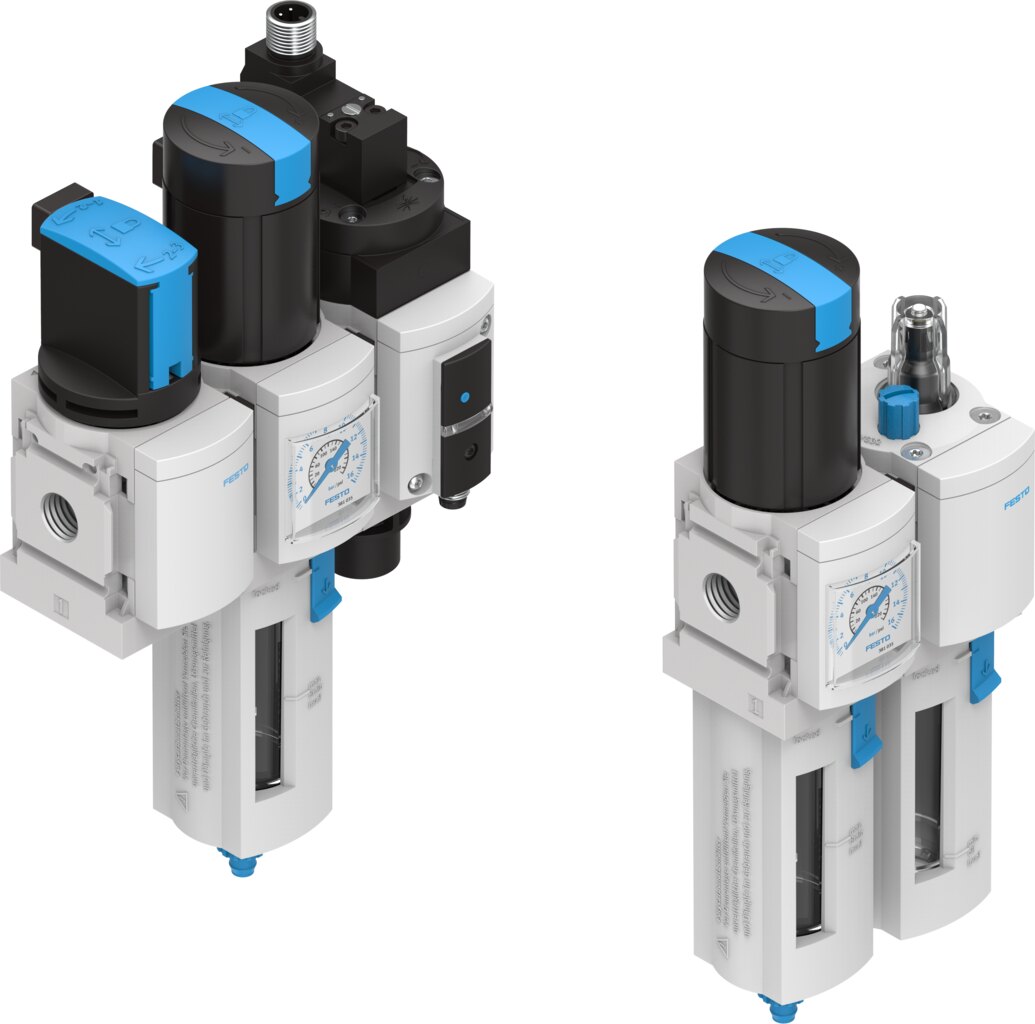

Service unit combination MSB4N-1/4:H4N3M1-WP - Festo 541434

Festo ✓ Original product Brand new
Net
€243.39
excl. VAT
Item FES-541434
Manufacturer no. MSB4N-1/4:H4N3M1-WP
Save Compare
Question about this item
Datasheet (PDF)
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Technical data

Size4
SeriesMS
Actuator lockRotary knob with integrated lock
Mounting positionVertical +/-5°
Grade of filtration5 µm
Condensate drainFully automatic
DesignFilter regulator with pressure gauge, Proportional standard mist lubricator
Controller functionOutput pressure constant, With primary pressure compensation, With secondary exhausting, With return flow function
Bowl guardPlastic bowl guard
Pressure gauge (ANALOG) or Pressure display (DIGITAL)With pressure gauge
Operating pressure2 ... 12 bar
Pressure regulation range1 ... 12 bar
Standard nominal flow rate (standardised to DIN 1343)700 l/min
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:-], Inert gas
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B2-L
Storage temperature-10 ... 60 °C
Suitable for use with foodSee supplementary material information
Air purity class at outputCompressed air to ISO 8573-1:2010 [6:4:-]
Media temperature-10 ... 60 °C
Ambient temperature-10 ... 60 °C
Product weight1000 g
Type of mountingWith accessories
Pneumatic connection, port 11/4 NPT
Pneumatic connection, port 21/4 NPT
Material housingDie-cast aluminium
Material bowlMakrolon®
Weight0.9 kg
ManufacturerFesto
Hersteller-NrMSB4N-1/4:H4N3M1-WP
EAN4052568016074
Zolltarifnummer84811005
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
