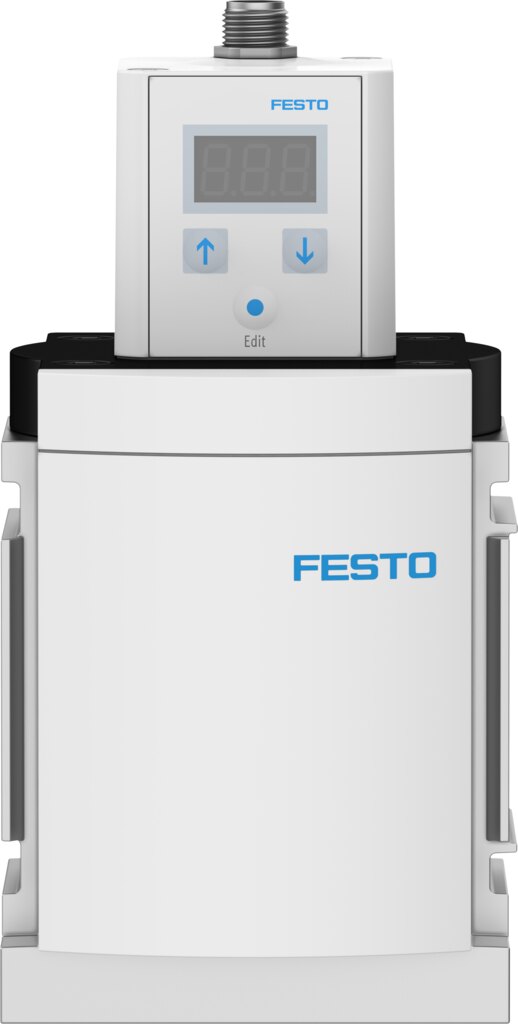

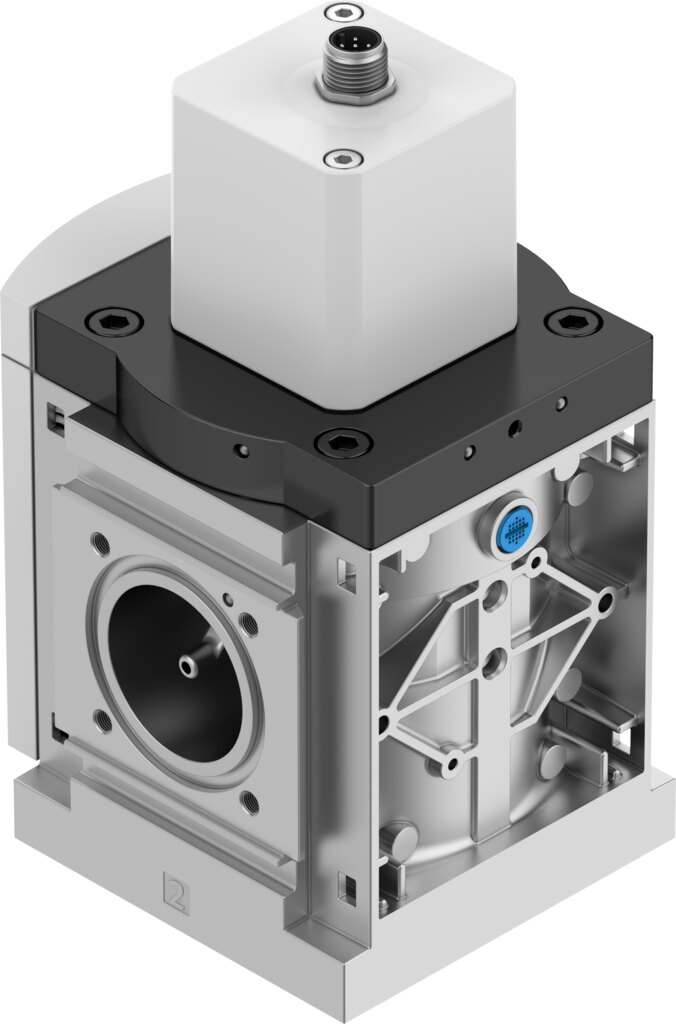

Pressure regulator 0.1 to 10 bar MS9-LR-G-PI10-VS - Festo 8203865

Festo ✓ Original product Brand new

The pressure regulator MS9-LR-G-PI10-VS regulates the downstream pressure to a set value, regulation range 0.1 to 10 bar.

Net
€852.54
excl. VAT
Item FES-8203865
Manufacturer no. MS9-LR-G-PI10-VS
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

For a stable working pressure: the MS9-LR-G-PI10-VS regulates the downstream pressure to a set value and covers 0.1 to 10 bar.

Benefits

  • Pressure regulation range 0.1 to 10 bar, hysteresis max. 0.05 bar
  • Operating pressure 6 to 11 bar
  • Media temperature 10 to 50 °C
  • Corrosion resistance class CRC 2

Applications

The MS9-LR-G-PI10-VS is used as a standalone unit in the line or in an MS9 service unit combination. Permissible media temperature 10 to 50 °C. Mounting of the MS9-LR-G-PI10-VS: with accessories.

Technical data

TypeMS9-LR-G-PI10-VS
Festo part number8203865
Size9
SeriesMS
Mounting positionAny
DesignPiloted precision pressure regulator
Controller functionOutput pressure constant, with primary pressure compensation, with secondary exhausting
Operating pressure6 to 11 bar
Pressure regulation range0.1 to 10 bar
Max. pressure hysteresis0.05 bar
Operational voltage range DC21.6 to 26.4 V
Max. electrical power consumption4.2 W
Max. current consumption0.16 A
Nominal operating voltage DC24 V
Residual ripple10%
Signal range analogue input4 - 20 mA
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4], inert gas
Note on operating and pilot mediumLubricated operation not possible
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Cleanroom suitability, measured according to ISO 14644-14Class 7 according to ISO 14644-1
Storage temperature-10 to 60 °C
Media temperature10 to 50 °C
Ambient temperature0 to 60 °C
Product weight1400 g
Type of mountingWith accessories
Material coveringReinforced PA
Note on materialsRoHS compliant
Material sub-baseDie-cast aluminium
Material mounting bracketDie-cast aluminium
Material housingDie-cast aluminium
Material module connectorDie-cast aluminium
Material membraneNBR
Material valve stemWrought aluminium alloy, NBR, POM
Weight2.1 kg
ManufacturerFesto
Hersteller-NrMS9-LR-G-PI10-VS
EAN4052568649333
Zolltarifnummer84811099
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Control range max. [bar]10
Housing materialDie-cast aluminium
MediumCompressed air, neutral gases
Operating voltage24 V DC
Betriebsdruck max [bar]11
Temperature (max.)50
