Soft-start and quick exhaust valve electrically actuated G1/2 MS6-SV-1/2-C-10V24P-S - Festo 578769
Gradual pressure build-up and quick exhausting: the soft-start and quick exhaust valve MS6-SV-1/2-C-10V24P-S protects actuators from abrupt start-up. Key values: port G1/2, flow rate 5700 l/min and operating pressure 3 to 10 bar.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer

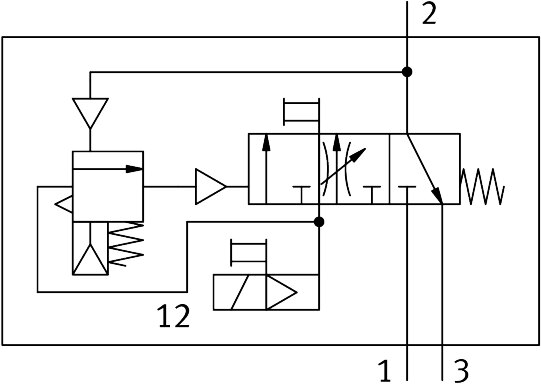

Description
The key values of the soft-start and quick exhaust valve MS6-SV-1/2-C-10V24P-S: valve function 3/2-way, single solenoid, closed, Soft-start function, 5700 l/min flow rate and port G1/2. The soft-start and quick exhaust valve MS6-SV-1/2-C-10V24P-S pressurises the system slowly after switch-on and exhausts it quickly when switched off.
Advantages
- Standard nominal flow rate (standardised to DIN 1343) 5700 l/min.
- Exhausting from 6 to 0 bar at 7600 l/min.
- Safety function: Exhausting/category 1, performance level c, Prevention of unexpected start-up (pressurisation)/category 1, performance level c to DIN EN ISO 13849-1, DIN EN ISO 13849-2.
- Valve function 3/2-way, single solenoid, closed, Soft-start function, coil 24 V DC: 1.8 W.
- Operating pressure 3 to 10 bar.
- Pneumatic connection G1/2.
Application
The soft-start and quick exhaust valve MS6-SV-1/2-C-10V24P-S builds up pressure slowly after switch-on and exhausts the system quickly when switched off. Requirements for MS6-SV-1/2-C-10V24P-S: mounting position any and operating medium compressed air to ISO 8573-1:2010 [7:4:4].
Technical data
| Type | MS6-SV-1/2-C-10V24P-S |
|---|---|
| Series | MS |
| Size | 6 |
| Grid dimension | 62 mm |
| Safety function | Exhaust, Prevention of unexpected start-up (pressurisation) |
| Performance Level (PL) | Exhausting/category 1, performance level c, Prevention of unexpected start-up (pressurisation)/category 1, performance level c |
| Note on forced dynamization | Switching frequency min. 1/month |
| Design | Piston gate valve |
| lap | Overlap |
| Type of actuation | Electrical |
| Pilot air supply | Internal |
| Sealing principle | Soft |
| Exhaust-air function | Cannot be throttled |
| Conforms to standard | DIN EN ISO 13849-1, DIN EN ISO 13849-2 |
| Manual override | On pilot solenoid valves: non-detenting, detenting, on soft-start/quick exhaust valve: detenting, self-resetting |
| Type of reset | Mechanical spring |
| Type of piloting | Piloted |
| Valve function | 3/2-way, single solenoid, closed, Soft-start function |
| Operating pressure | 3 to 10 bar |
| C value | 23.2 l/sbar |
| b value | 0.4 |
| Standard nominal flow rate (standardised to DIN 1343) | 5700 l/min |
| Standard flow rate, exhausting from 6 to 0 bar | 7600 l/min |
| Switching time off | 65 ms |
| Switching time on | 370 ms |
| Duty cycle | 100% |
| Characteristic coil data | 24 V DC: 1.8 W |
| Permissible voltage fluctuations | ±10% |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| Note on materials | RoHS compliant |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Degree of protection | IP65, With plug socket |
| Media temperature | 0 to 60 °C |
| Ambient temperature | 0 to 60 °C |
| Storage temperature | -10 to 60 °C |
| Shock resistance | Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Vibration resistance | Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| CE mark | To EU EMC Directive, To EC Machinery Directive, In accordance with EU RoHS Directive |
| UKCA marking | To UK regulations for machines, To UK RoHS instructions |
| Suitable for use with food | See supplementary material information |
| Type of mounting | Inline installation, With accessories |
| Mounting position | Any |
| Product weight | 1006 g |
| Pneumatic connection, port 1 | G1/2 |
| Pneumatic connection, port 2 | G1/2 |
| Pneumatic connection, port 3 | G3/4 |
| Electrical connection | 4-pin, according to IEC 61076-2-101 |
| Material housing | Die-cast aluminium |
| Material seals | NBR |
| Material piston rod | High-alloy stainless steel |
| Weight (price list) | 1.2 kg |
| Weight | 1.1 kg |
| Manufacturer | Festo |
| Hersteller-Nr | MS6-SV-1/2-C-10V24P-S |
| EAN | 4052568384821 |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Thread | G 1/2 |
| Size BG | 6 |
| Seal material | NBR |
| Housing material | Die-cast aluminium |
| Medium | Compressed air |
| Actuation type | Electrical |
| Betriebsdruck max [bar] | 10 |
| Pneumatic connection | G1/2 |
| Protection rating | IP65 |
| Temperaturbereich | 0-60 °C |
| Temperature (max.) | 60 |
