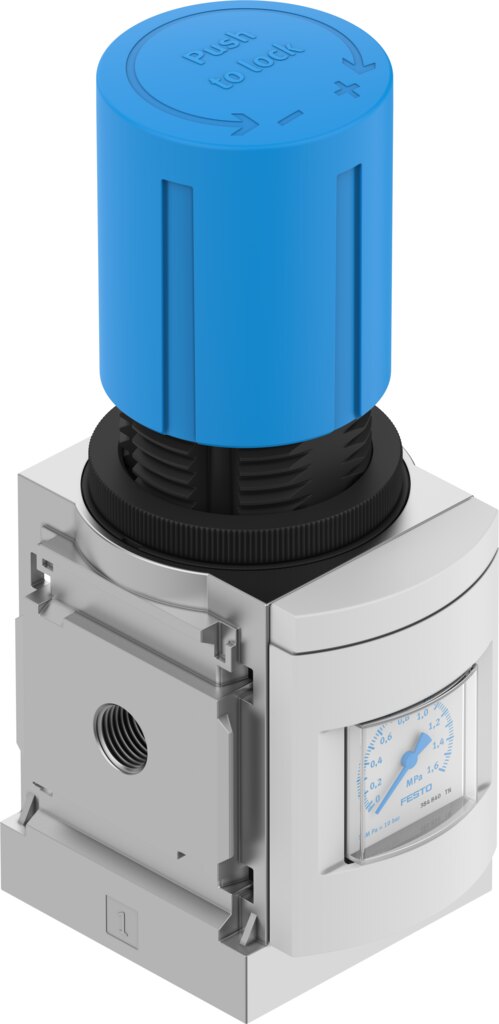

Pressure regulator G1, 0.5 to 12 bar MS6-LR-AGF-D7-VS - Festo 8233002

Festo ✓ Original product Brand new

The pressure regulator MS6-LR-AGF-D7-VS sets the working pressure for downstream consumers, regulation range 0.5 to 12 bar. Key data: 5500 l/min standard nominal flow rate and G1 ports.

Net
€93.31
excl. VAT
Item FES-8233002
Manufacturer no. MS6-LR-AGF-D7-VS
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

For a stable working pressure: the MS6-LR-AGF-D7-VS sets the working pressure for downstream consumers and covers 0.5 to 12 bar. Standard nominal flow rate is 5500 l/min, operating pressure 0.8 to 20 bar.

At a glance

  • 5500 l/min standard nominal flow rate to DIN 1343
  • Pressure regulation range 0.5 to 12 bar, hysteresis max. 0.25 bar
  • Operating pressure 0.8 to 20 bar
  • Media temperature -10 to 60 °C
  • Corrosion resistance class CRC 2

Applications

The MS6-LR-AGF-D7-VS is used as a standalone unit in the line or in an MS6 service unit combination. Permissible media temperature -10 to 60 °C. Mounting of the MS6-LR-AGF-D7-VS: with accessories.

Technical data

TypeMS6-LR-AGF-D7-VS
Festo part number8233002
Size6
SeriesMS
Actuator lockRotary knob with detent
Mounting positionAny
DesignDirectly actuated diaphragm regulator
Controller functionOutput pressure constant, with secondary exhausting, with return flow function
Operating pressure0.8 to 20 bar
Pressure regulation range0.5 to 12 bar
Max. pressure hysteresis0.25 bar
Standard nominal flow rate (standardised to DIN 1343)5500 l/min
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4], inert gas
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Storage temperature-10 to 60 °C
Suitable for use with foodSee supplementary material information
Media temperature-10 to 60 °C
Ambient temperature-10 to 60 °C
Product weight1030 g
Type of mountingWith accessories
Pneumatic connection, port 1G1
Pneumatic connection, port 2G1
Note on materialsRoHS compliant
Material sub-baseDie-cast aluminium
Material control panelPA, POM
Material sealsNBR
Material housingDie-cast aluminium
Material membraneNBR
Weight1.2 kg
ManufacturerFesto
Hersteller-NrMS6-LR-AGF-D7-VS
EAN4052568782610
Zolltarifnummer84811099
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
ThreadG 1
Size BG6
Control range max. [bar]12
Seal materialNBR
Housing materialDie-cast aluminium
MediumCompressed air, neutral gases
Flow rate [l/min]5500
Betriebsdruck max [bar]20
Pneumatic connectionG1
Temperaturbereich-10-60 °C
Temperature (max.)60
