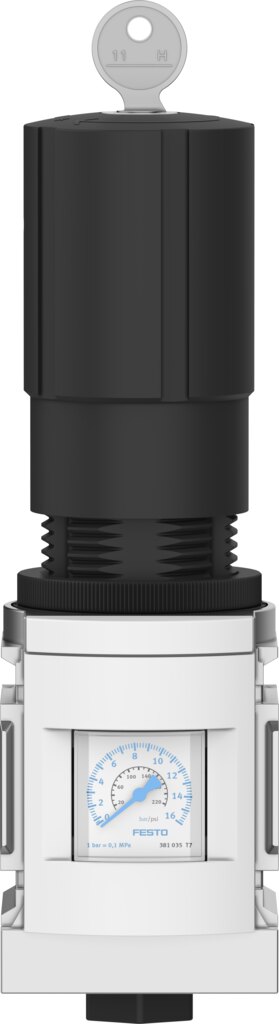

Pressure regulator G1/2, 0.5 to 12 bar MS6-LR-1/2-D7-E11 - Festo 8232981
The pressure regulator MS6-LR-1/2-D7-E11 sets the working pressure for downstream consumers, regulation range 0.5 to 12 bar. It adds 5500 l/min standard nominal flow rate and G1/2 ports. Pressure indicator: with pressure gauge.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
For a stable working pressure: the MS6-LR-1/2-D7-E11 sets the working pressure for downstream consumers and covers 0.5 to 12 bar. Standard nominal flow rate is 5500 l/min, operating pressure 0.8 to 20 bar.
Why it pays off
- 5500 l/min standard nominal flow rate to DIN 1343
- Pressure regulation range 0.5 to 12 bar, hysteresis max. 0.25 bar
- Operating pressure 0.8 to 20 bar
- Media temperature -10 to 60 °C
- Corrosion resistance class CRC 2
Applications
The MS6-LR-1/2-D7-E11 lets you set the working pressure of a system centrally and save compressed air. Permissible media temperature -10 to 60 °C. Mounting of the MS6-LR-1/2-D7-E11: with accessories.
Technical data
| Type | MS6-LR-1/2-D7-E11 |
|---|---|
| Festo part number | 8232981 |
| Size | 6 |
| Series | MS |
| Actuator lock | Rotary knob with integrated lock |
| Mounting position | Any |
| Design | Pressure regulator with pressure gauge |

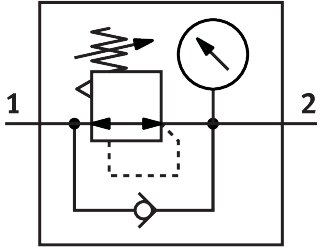

| Controller function | Output pressure constant, with secondary exhausting, with return flow function |
| Pressure indicator | With pressure gauge |
| Operating pressure | 0.8 to 20 bar |
| Pressure regulation range | 0.5 to 12 bar |
| Max. pressure hysteresis | 0.25 bar |
| Standard nominal flow rate (standardised to DIN 1343) | 5500 l/min |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4], inert gas |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -10 to 60 °C |
| Suitable for use with food | See supplementary material information |
| Media temperature | -10 to 60 °C |
| Ambient temperature | -10 to 60 °C |
| Product weight | 1000 g |
| Type of mounting | With accessories |
| Pneumatic connection, port 1 | G1/2 |
| Pneumatic connection, port 2 | G1/2 |
| Note on materials | RoHS compliant |
| Material control panel | PA, POM |
| Material seals | NBR |
| Material housing | Die-cast aluminium |
| Material membrane | NBR |
| Weight | 1.1 kg |
| Manufacturer | Festo |
| Hersteller-Nr | MS6-LR-1/2-D7-E11 |
| EAN | 4052568778545 |
| Zolltarifnummer | 84811099 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Thread | G 1/2 |
| Size BG | 6 |
| Control range max. [bar] | 12 |
| Seal material | NBR |
| Housing material | Die-cast aluminium |
| Medium | Compressed air, neutral gases |
| Flow rate [l/min] | 5500 |
| Betriebsdruck max [bar] | 20 |
| Pneumatic connection | G1/2 |
| Temperaturbereich | -10-60 °C |
| Temperature (max.) | 60 |
