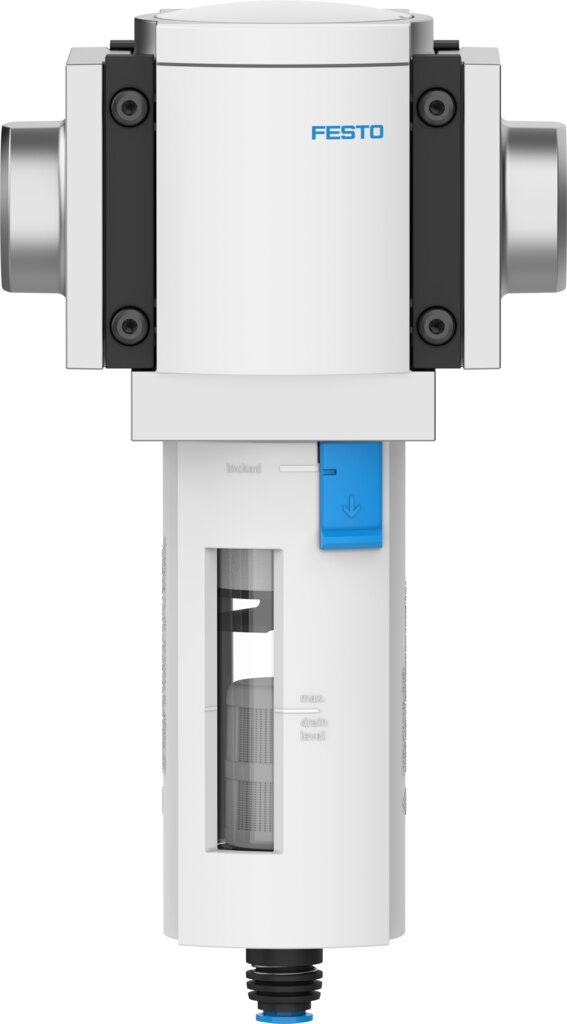

Filter G3/4, 40 µm, 4100 l/min MS6-LF-AGE-E-R-V - Festo 8232878

Festo ✓ Original product Brand new

The MS6-LF-AGE-E-R-V filter removes particles and condensate from the compressed air, with a grade of filtration of 40 µm. With 4100 l/min standard nominal flow rate and G3/4 ports it also supplies larger consumers. Drain: fully automatic.

Net
€120.89
excl. VAT
Item FES-8232878
Manufacturer no. MS6-LF-AGE-E-R-V
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The filter element of the MS6-LF-AGE-E-R-V works as a sintered filter with centrifugal separator with 40 µm grade of filtration.

Why it pays off

  • 4100 l/min standard nominal flow rate to DIN 1343
  • Grade of filtration 40 µm, condensate separation 75 %
  • Operating pressure 2 to 12 bar
  • Air purity at output: Compressed air to ISO 8573-1:2010 [7:8:4]
  • Media temperature -10 to 60 °C
  • Corrosion resistance class CRC 2

Applications

The MS6-LF-AGE-E-R-V sits at the start of the preparation chain and protects downstream regulators, valves and drives. Air purity at output: Compressed air to ISO 8573-1:2010 [7:8:4].

Technical data

TypeMS6-LF-AGE-E-R-V
Festo part number8232878
Size6
SeriesMS
Mounting positionVertical ±5°
Grade of filtration40 µm
Condensate drainFully automatic
DesignSintered filter with centrifugal separator
Bowl guardPlastic bowl guard
Degree of condensate separation75 %
Operating pressure2 to 12 bar
Standard nominal flow rate (standardised to DIN 1343)4100 l/min
Operating mediumCompressed air to ISO 8573-1:2010 [7:9:-], inert gas
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Storage temperature-10 to 60 °C
Suitable for use with foodSee supplementary material information
Air purity class at outputCompressed air to ISO 8573-1:2010 [7:8:4]
Media temperature-10 to 60 °C
Ambient temperature-10 to 60 °C
Pore size40 µm
Product weight900 g
Type of mountingWith accessories
Pneumatic connection, port 1G3/4
Pneumatic connection, port 2G3/4
Note on materialsRoHS compliant
Material sub-baseDie-cast aluminium
Material sealsNBR
Material filterPE
Material housingDie-cast aluminium
Material bowlPC
Material separating platePOM
Weight1.1 kg
ManufacturerFesto
Hersteller-NrMS6-LF-AGE-E-R-V
EAN4052568778224
Zolltarifnummer84213925
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
ThreadG 3/4
Size BG6
Seal materialNBR
Housing materialDie-cast aluminium
MediumCompressed air, neutral gases
Flow rate [l/min]4100
Filter grade [µm]40
Betriebsdruck max [bar]12
Pneumatic connectionG3/4
Temperaturbereich-10-60 °C
Temperature (max.)60
