Wartungseinheit MS6-EM1FR-1/2-D6-C-P-VC-AG-MPA-WPE-B - Festo 8098368

Images are examples, some edited with AI. The technical data are authoritative. AI notice

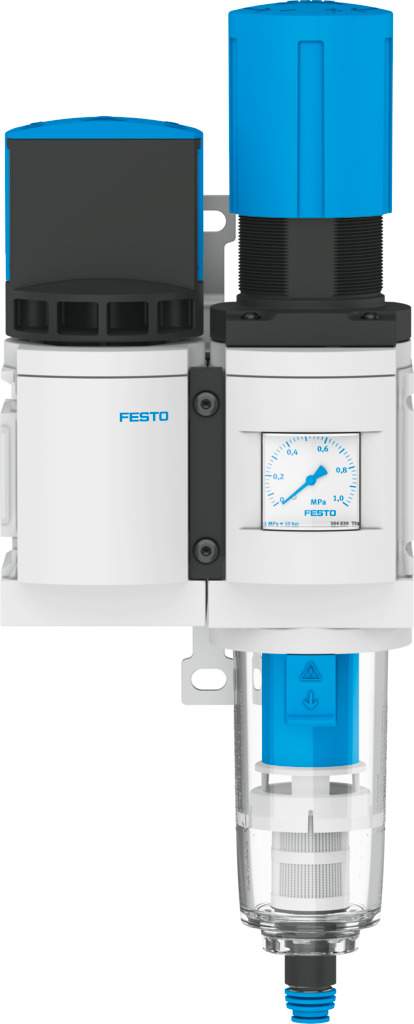

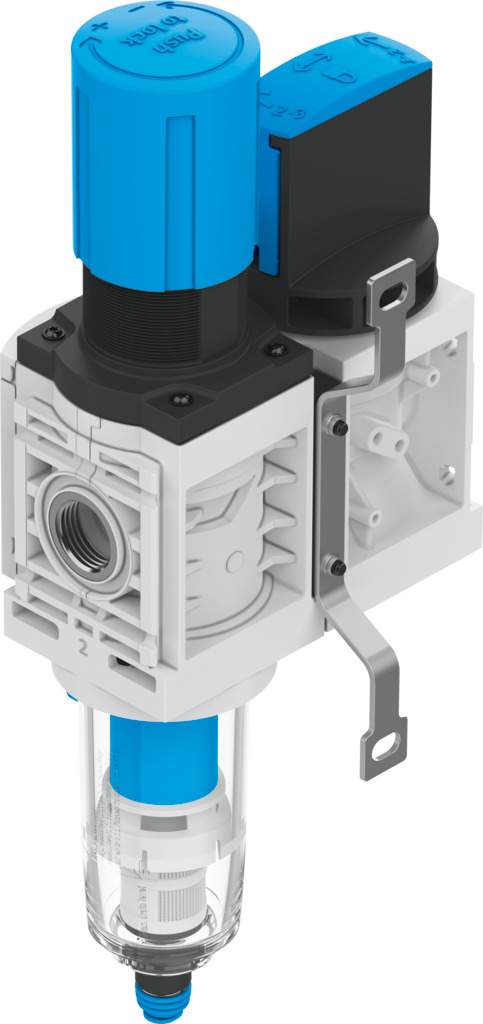

Service unit MS6-EM1FR-1/2-D6-C-P-VC-AG-MPA-WPE-B - Festo 8098368

Name: Service unit MS6-EM1FR-1/2-D6-C-P-VC-AG-MPA-WPE-B - Festo 8098368
Brand: Festo
SKU: FES-8098368
Price: 205.75 EUR
Availability: InStock

Festo ✓ Original product Brand new

Net

€205.75

excl. VAT

Item FES-8098368

Manufacturer no. MS6-EM1FR-1/2-D6-C-P-VC-AG-MPA-WPE-B

Question about this item

Datasheet (PDF)

Specialist dealer since 2009
Invoice payment for regular customers
Worldwide shipping
Technical questions clarified with the manufacturer

Technical data

Size	6
Series	MS
Mounting position	Vertical +/-5°
Grade of filtration	5 µm
Condensate drain	Fully automatic, Manual, non-detenting
Pressure gauge (ANALOG) or Pressure display (DIGITAL)	With pressure gauge
Operating pressure	1 ... 10 bar
Standard nominal flow rate, exhaust 0.6->0 MPa (6->0 bar, 87->0 psi)	3600 l/min
Standard nominal flow rate (standardised to DIN 1343)	4750 l/min
Operating medium	Compressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot medium	Compatibility with ester oil not guaranteed
Corrosion resistance class CRC	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Storage temperature	-5 ... 50 °C
Media temperature	5 ... 50 °C
Ambient temperature	5 ... 50 °C
Product weight	1250 g
Type of mounting	With mounting bracket, With accessories
Note on materials	RoHS compliant
Material filter	Packaging unit
Material bowl	Makrolon®
Weight	1.4 kg
Manufacturer	Festo
Hersteller-Nr	MS6-EM1FR-1/2-D6-C-P-VC-AG-MPA-WPE-B
EAN	4052568609078
Zolltarifnummer	84811005
GPSR Herstellerdaten	Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
Artikelzustand	New
Artikel-Authentizität	Original product
