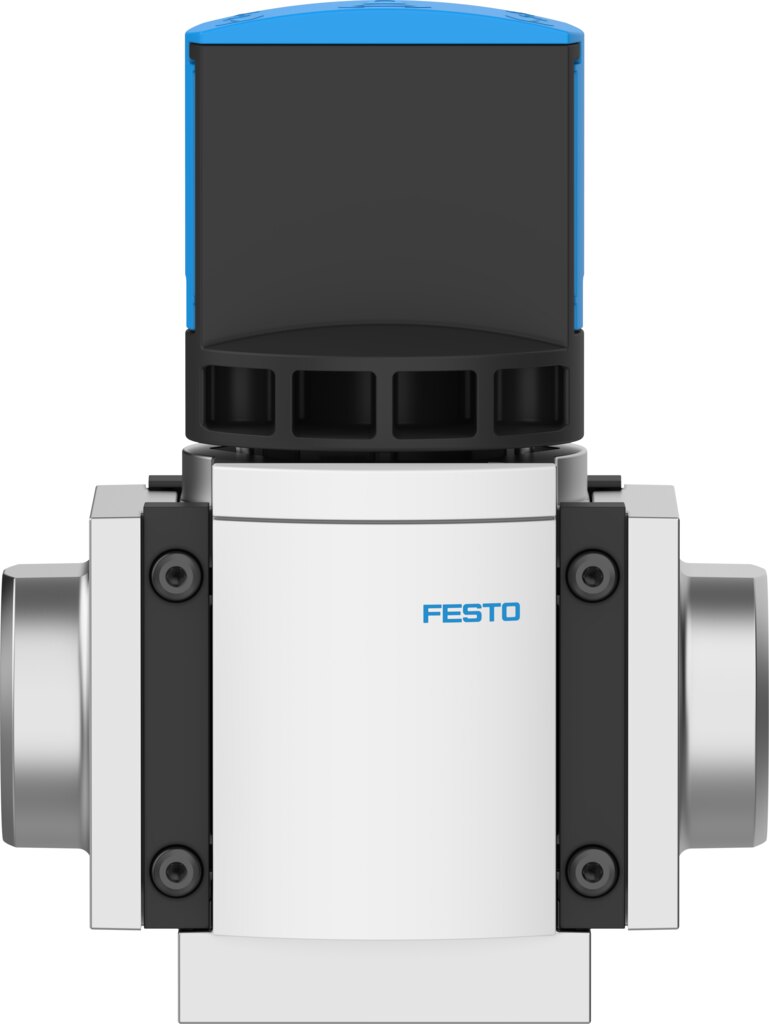

On/off valve G1, manual, 3/2-way MS6-EM1-AGF - Festo 8232876

Festo ✓ Original product Brand new

The on/off valve MS6-EM1-AGF switches the compressed air supply of the system on and exhausts it when switched off. It offers 8700 l/min standard nominal flow rate and G1 ports. It is operated manually.

Net
€100.56
excl. VAT
Item FES-8232876
Manufacturer no. MS6-EM1-AGF
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The Festo MS6-EM1-AGF switches the compressed air supply of the system on and exhausts it when switched off: 3/2-way, double solenoid, operating pressure 0 to 18 bar.

Benefits

  • 8700 l/min standard nominal flow rate to DIN 1343
  • Operating pressure 0 to 18 bar
  • Media temperature -10 to 60 °C

Applications

The MS6-EM1-AGF separates the machine from the compressed air supply, for example during set-up and service work.

Technical data

TypeMS6-EM1-AGF
Festo part number8232876
SeriesMS
Size6
DesignRotary switching valve
Type of actuationManual
Exhaust-air functionCannot be throttled
Actuator lockcan be closed with accessories
Type of pilotingDirect
Valve function3/2-way, double solenoid
Operating pressure0 to 18 bar
C value30.8 l/sbar
b value0.57
Standard nominal flow rate (standardised to DIN 1343)8700 l/min
Standard nominal flow rate 2-36200 l/min
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4], inert gas
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC2 - Moderate corrosion stress
Note on materialsRoHS compliant
LABS (PWIS) conformityVDMA24364-B1/B2-L
Media temperature-10 to 60 °C
Ambient temperature-10 to 60 °C
Suitable for use with foodSee supplementary material information
Type of mountingEither: Inline installation, with accessories
Mounting positionAny
Flow directionNon-reversible
Product weight880 g
Pneumatic connection, port 1G1
Pneumatic connection, port 2G1
Pneumatic connection, port 3G1/2
Material sealsTPE-U(PU)
Material housingDie-cast aluminium
Weight1 kg
ManufacturerFesto
Hersteller-NrMS6-EM1-AGF
EAN4052568782412
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
ThreadG 1
Size BG6
Seal materialTPE-U(PU)
Housing materialDie-cast aluminium
MediumCompressed air, neutral gases
Function3/2 bistable
Flow rate [l/min]8700
Actuation typeManually
Betriebsdruck max [bar]18
Pneumatic connectionG1
Temperaturbereich-10-60 °C
Temperature (max.)60
