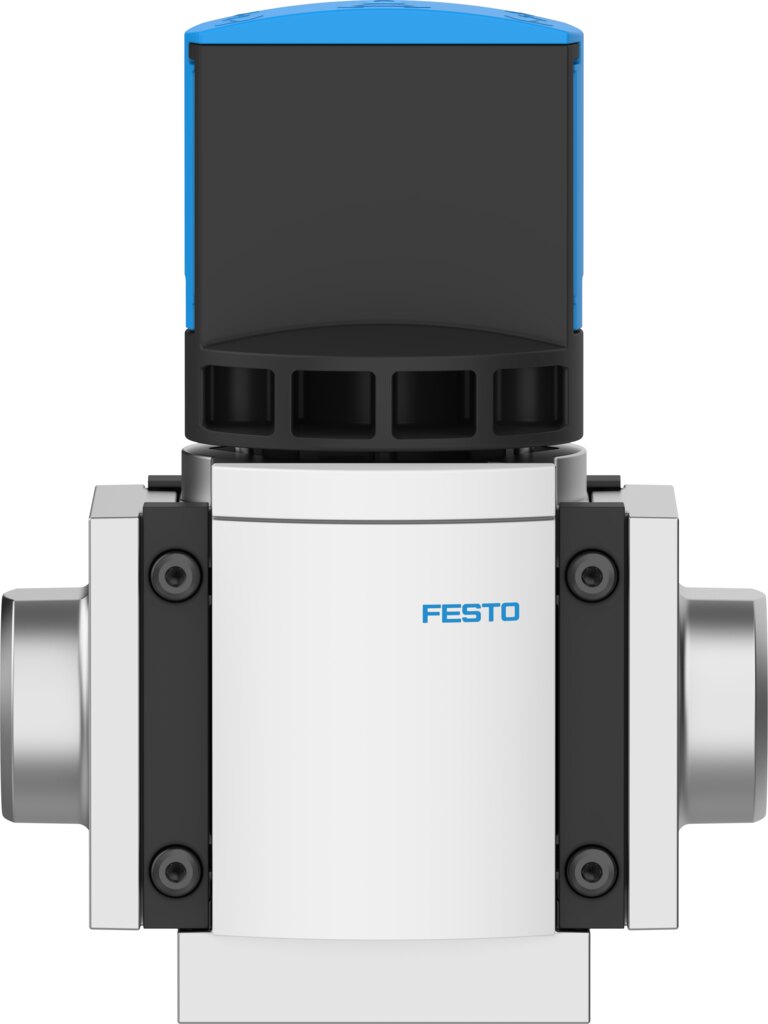

On/off valve G3/4, manual, 3/2-way MS6-EM1-AGE - Festo 8232875
The on/off valve MS6-EM1-AGE switches the compressed air supply of the system on and exhausts it when switched off. It offers 8700 l/min standard nominal flow rate and G3/4 ports. It is operated manually.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The Festo MS6-EM1-AGE switches the compressed air supply of the system on and exhausts it when switched off: 3/2-way, double solenoid, operating pressure 0 to 18 bar.
At a glance
- 8700 l/min standard nominal flow rate to DIN 1343
- Operating pressure 0 to 18 bar
- Media temperature -10 to 60 °C
Applications
With the MS6-EM1-AGE, compressed air is switched on centrally, and on switch-off the residual pressure escapes via the exhaust port.
Technical data
| Type | MS6-EM1-AGE |
|---|---|
| Festo part number | 8232875 |
| Series | MS |
| Size | 6 |
| Design | Rotary switching valve |
| Type of actuation | Manual |
| Exhaust-air function | Cannot be throttled |
| Actuator lock | can be closed with accessories |
| Type of piloting | Direct |
| Valve function | 3/2-way, double solenoid |
| Operating pressure | 0 to 18 bar |
| C value | 30.8 l/sbar |
| b value | 0.57 |
| Standard nominal flow rate (standardised to DIN 1343) | 8700 l/min |
| Standard nominal flow rate 2-3 | 6200 l/min |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4], inert gas |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| Note on materials | RoHS compliant |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Media temperature | -10 to 60 °C |
| Ambient temperature | -10 to 60 °C |
| Suitable for use with food | See supplementary material information |
| Type of mounting | Either: Inline installation, with accessories |
| Mounting position | Any |
| Flow direction | Non-reversible |
| Product weight | 880 g |
| Pneumatic connection, port 1 | G3/4 |
| Pneumatic connection, port 2 | G3/4 |
| Pneumatic connection, port 3 | G1/2 |
| Material seals | TPE-U(PU) |
| Material housing | Die-cast aluminium |
| Weight | 0.95 kg |
| Manufacturer | Festo |
| Hersteller-Nr | MS6-EM1-AGE |
| EAN | 4052568778200 |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Thread | G 3/4 |
| Size BG | 6 |
| Seal material | TPE-U(PU) |
| Housing material | Die-cast aluminium |
| Medium | Compressed air, neutral gases |
| Function | 3/2 bistable |
| Flow rate [l/min] | 8700 |
| Actuation type | Manually |
| Betriebsdruck max [bar] | 18 |
| Pneumatic connection | G3/4 |
| Temperaturbereich | -10-60 °C |
| Temperature (max.) | 60 |
