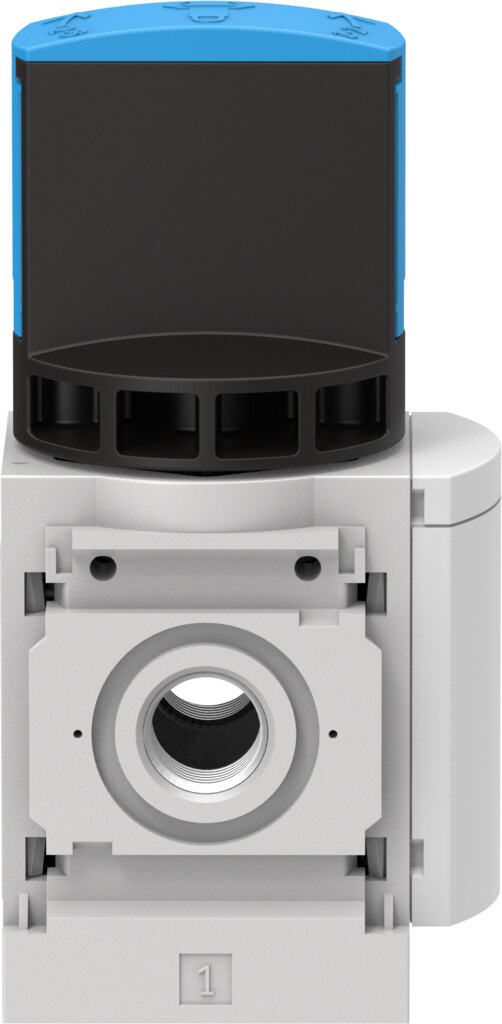

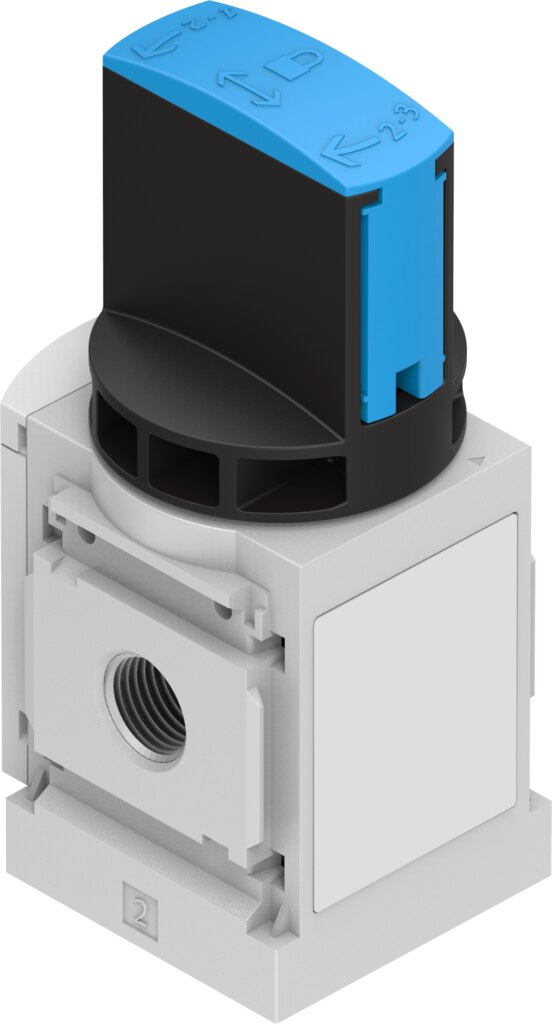

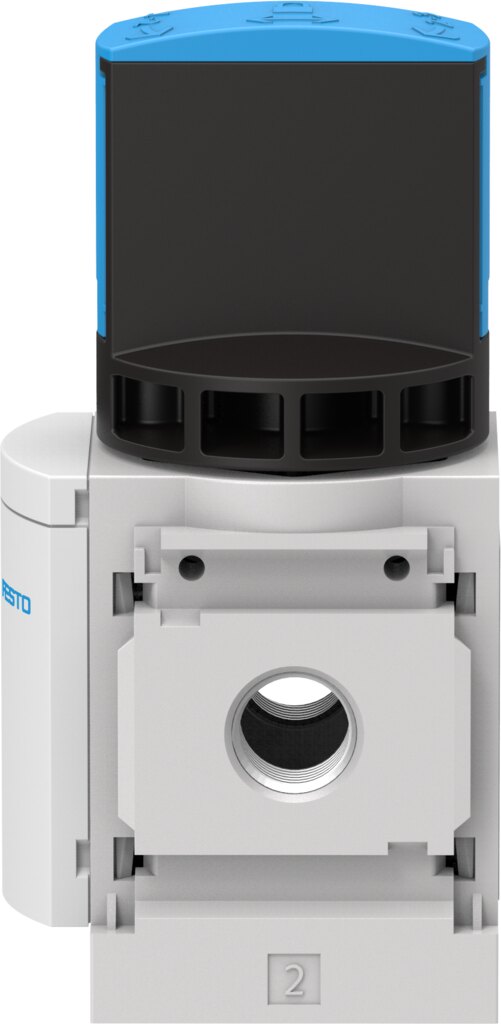

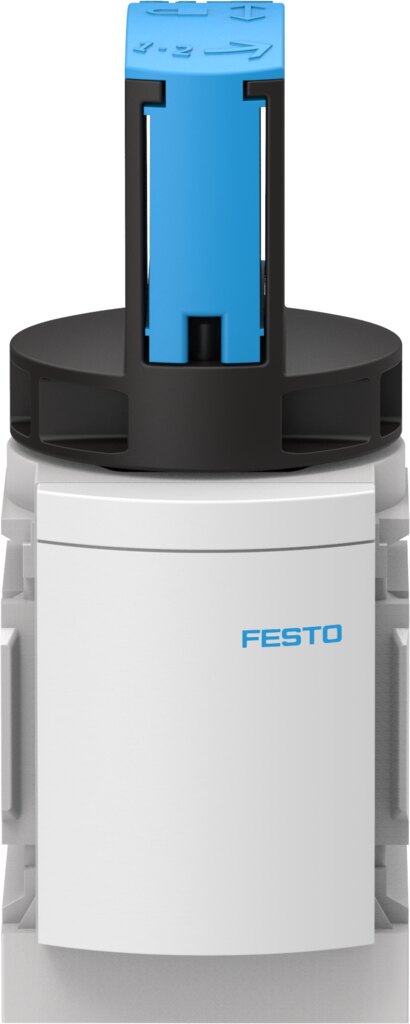

On/off valve G1/2, manual, 3/2-way MS6-EM1-1/2-F1A - Festo 8183562
The on/off valve MS6-EM1-1/2-F1A switches the compressed air supply of the system on and exhausts it when switched off. It offers 8700 l/min standard nominal flow rate and G1/2 ports. It is operated manually.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The Festo MS6-EM1-1/2-F1A switches the compressed air supply of the system on and exhausts it when switched off: 3/2-way, double solenoid, operating pressure 0 to 18 bar.
Benefits
- 8700 l/min standard nominal flow rate to DIN 1343
- Operating pressure 0 to 18 bar
- Media temperature -10 to 60 °C
Applications
The MS6-EM1-1/2-F1A belongs at the inlet of the service unit combination and depressurises the system for maintenance and downtime.
Technical data
| Type | MS6-EM1-1/2-F1A |
|---|---|
| Festo part number | 8183562 |
| Design | Rotary switching valve |
| Type of actuation | Manual |
| Exhaust-air function | Cannot be throttled |
| Type of piloting | Direct |
| Valve function | 3/2-way, double solenoid |
| Operating pressure | 0 to 18 bar |
| C value | 30.8 l/sbar |
| b value | 0.57 |
| Standard nominal flow rate (standardised to DIN 1343) | 8700 l/min |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4], inert gas |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| Note on materials | RoHS compliant |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Suitability for the production of Li-ion batteries | Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Media temperature | -10 to 60 °C |
| Ambient temperature | -10 to 60 °C |
| Suitable for use with food | See supplementary material information |
| Type of mounting | Either: Inline installation, with accessories |
| Mounting position | Any |
| Flow direction | Non-reversible |
| Product weight | 580 g |
| Pneumatic connection, port 1 | G1/2 |
| Pneumatic connection, port 2 | G1/2 |
| Pneumatic connection, port 3 | G1/2 |
| Material seals | TPE-U(PU) |
| Material housing | Die-cast aluminium |
| Weight | 0.65 kg |
| Manufacturer | Festo |
| Hersteller-Nr | MS6-EM1-1/2-F1A |
| EAN | 4052568630225 |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Thread | G 1/2 |
| Seal material | TPE-U(PU) |
| Housing material | Die-cast aluminium |
| Medium | Compressed air, neutral gases |
| Function | 3/2 bistable |
| Flow rate [l/min] | 8700 |
| Actuation type | Manually |
| Series | MS6 |
| Betriebsdruck max [bar] | 18 |
| Pneumatic connection | G1/2 |
| Temperaturbereich | -10-60 °C |
| Temperature (max.) | 60 |
