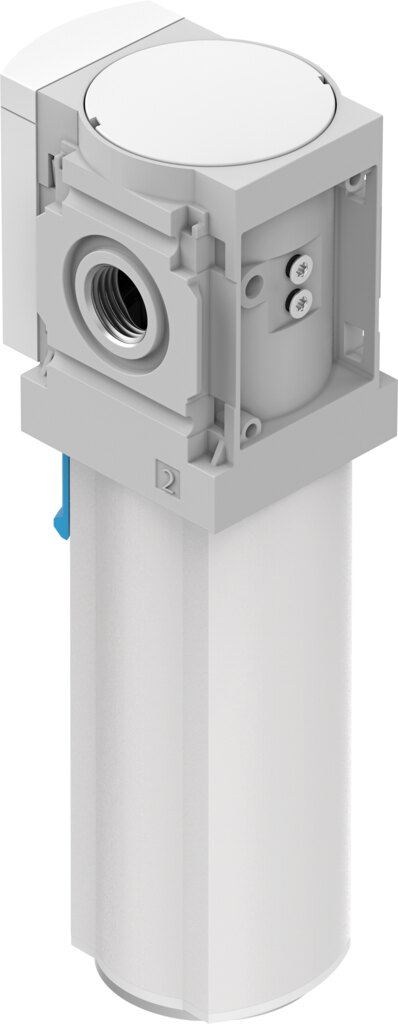

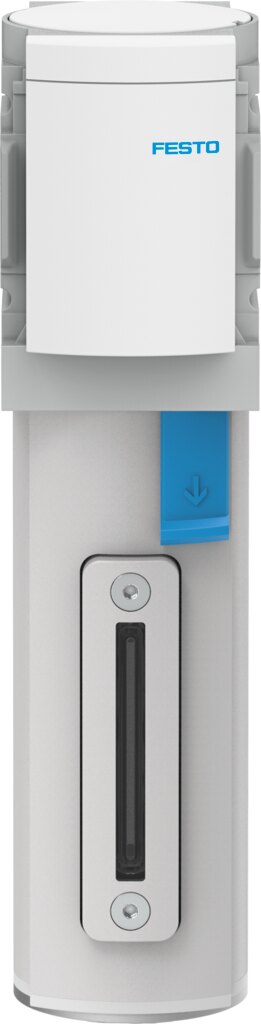

Activated carbon filter MS4N-LFX-1/4-U - Festo 535786
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Size | 4 |
|---|---|
| Series | MS |
| Mounting position | Vertical +/-5° |
| Design | Activated carbon filter |
| Bowl guard | Integrated as metal bowl |
| Operating pressure | 0 ... 14 bar |
| Max. standard flow rate for clean air class | 360 l/min |
| Operating medium | Compressed air according to ISO 8573-1:2010 [3:4:2] |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -10 ... 60 °C |
| Air purity class at output | Compressed air according to ISO 8573-1:2010 [3:4:1] |
| Media temperature | 5 ... 30 °C |
| Residual oil content | 0.003 mg/m³ |
| Ambient temperature | -10 ... 60 °C |
| Product weight | 350 g |
| Type of mounting | With accessories |
| Pneumatic connection, port 1 | 1/4 NPT |
| Pneumatic connection, port 2 | 1/4 NPT |
| Note on materials | RoHS compliant |
| Material filter | Activated carbon |
| Material housing | Die-cast aluminium |
| Material bowl | Die-cast aluminium, Wrought aluminium alloy |
| Material screen | PA |
| Manufacturer | Festo |
| Hersteller-Nr | MS4N-LFX-1/4-U |
| EAN | 4052568343903 |
| Zolltarifnummer | 84213925 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
