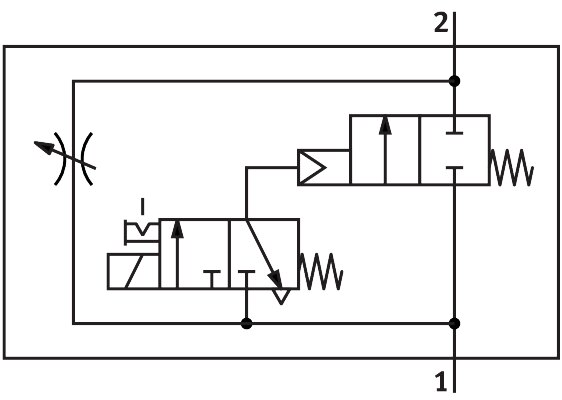

Soft-start valve MS4N-DE-1/4-10V24-Z - Festo 542570
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Type of actuation | Electrical |
|---|---|
| Mounting position | Any |
| Manual override | Detenting, Non-detenting |
| Design | Piston seat |
| Type of reset | Mechanical spring |
| Type of piloting | Piloted |
| Pilot air supply | Internal |
| Flow direction | Non-reversible |
| Valve function | 2/2 |
| Switching position indicator | With accessories |
| Operating pressure | 4 ... 10 bar |
| b value | 0.45 |
| C value | 9.6 l/sbar |
| Standard nominal flow rate (standardised to DIN 1343) | 2000 l/min |
| Duty cycle | 100% |
| Characteristic coil data | 24 V DC: 1.8 W |
| Approval | c UL us - Recognised (Oil) |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4], Inert gas |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Suitable for use with food | See supplementary material information |
| Media temperature | -10 ... 50 °C |
| Degree of protection | IP65 |
| Ambient temperature | -10 ... 50 °C |
| Product weight | 263 g |
| Electrical connection | Type C, Plug, To DIN EN 175301-803, Square design |
| Signal status display | With accessories |
| Type of mounting | With accessories |
| Pneumatic connection, port 1 | 1/4 NPT |
| Pneumatic connection, port 2 | 1/4 NPT |
| Note on materials | RoHS compliant |
| Material seals | NBR |
| Material housing | Die-cast aluminium |
| Manufacturer | Festo |
| Hersteller-Nr | MS4N-DE-1/4-10V24-Z |
| EAN | 4052568347659 |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
