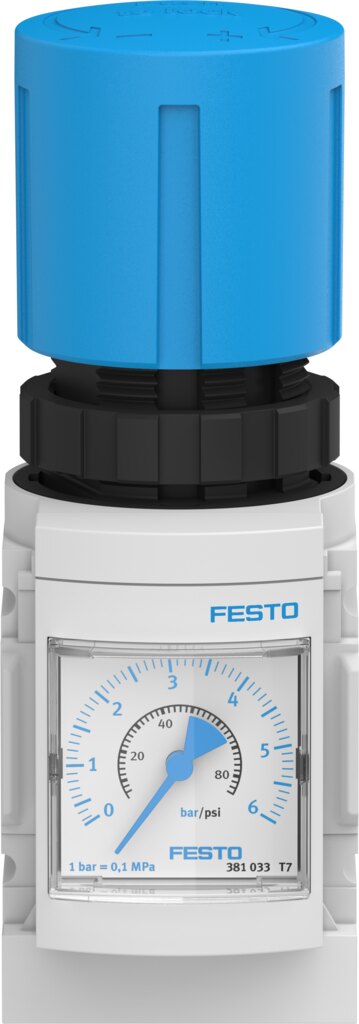

Pressure regulator G1/4 MS4-LR-1/4-D6-MPA-AS-Z - Festo 610223
The pressure regulator MS4-LR-1/4-D6-MPA-AS-Z regulates the downstream pressure to a set value. The data sheet lists G1/4 ports. Unit from the Festo MS4 series for compressed air preparation.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The Festo MS4-LR-1/4-D6-MPA-AS-Z regulates the downstream pressure to a set value.
Applications
The MS4-LR-1/4-D6-MPA-AS-Z lets you set the working pressure of a system centrally and save compressed air.
Technical data
| Type | MS4-LR-1/4-D6-MPA-AS-Z |
|---|---|
| Festo part number | 610223 |
| Size | 4 |
| Series | MS |
| Pneumatic connection, port 1 | G1/4 |
| Weight (price list) | 0.3 kg |
| Weight | 0.3 kg |
| Manufacturer | Festo |
| Hersteller-Nr | MS4-LR-1/4-D6-MPA-AS-Z |
| Zolltarifnummer | 84811099 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Thread | G 1/4 |
| Size BG | 4 |
| Pneumatic connection | G1/4 |
Downloads
Questions about this item
Any other question?
Send us the item number and your question. We clarify technical details directly with the manufacturer and usually reply on the next working day.
