Pressure regulator G1/4, 0.3 to 7 bar MS4-LR-1/4-D6-AG-MPA-F1A-B - Festo 8175242
The pressure regulator MS4-LR-1/4-D6-AG-MPA-F1A-B sets the working pressure for downstream consumers, regulation range 0.3 to 7 bar. Further data: 1800 l/min standard nominal flow rate and G1/4 ports. Pressure indicator: with pressure gauge.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
For a stable working pressure: the MS4-LR-1/4-D6-AG-MPA-F1A-B sets the working pressure for downstream consumers and covers 0.3 to 7 bar. Standard nominal flow rate is 1800 l/min, operating pressure 1 to 10 bar.
Benefits
- 1800 l/min standard nominal flow rate to DIN 1343
- Pressure regulation range 0.3 to 7 bar, hysteresis max. 0.5 bar
- Operating pressure 1 to 10 bar
- Media temperature -5 to 50 °C
- Corrosion resistance class CRC 1
Applications
The MS4-LR-1/4-D6-AG-MPA-F1A-B lets you set the working pressure of a system centrally and save compressed air. Permissible media temperature -5 to 50 °C. Mounting of the MS4-LR-1/4-D6-AG-MPA-F1A-B: with accessories.
Technical data
| Type | MS4-LR-1/4-D6-AG-MPA-F1A-B |
|---|---|
| Festo part number | 8175242 |
| Size | 4 |
| Series | MS |
| Actuator lock | Rotary knob with detent |
| Mounting position | Any |
| Design | Directly actuated piston regulator |

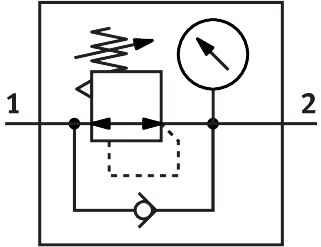

| Controller function | Output pressure constant, with secondary exhausting, with return flow function |
| Pressure indicator | With pressure gauge |
| Operating pressure | 1 to 10 bar |
| Pressure regulation range | 0.3 to 7 bar |
| Maximum pressure hysteresis | 0.5 bar |
| Standard nominal flow rate (standardised to DIN 1343) | 1800 l/min |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4], inert gas |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Suitability for the production of Li-ion batteries | Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Cleanroom suitability, measured according to ISO 14644-14 | Class 7 according to ISO 14644-1 |
| Storage temperature | -5 to 50 °C |
| Media temperature | -5 to 50 °C |
| Ambient temperature | -5 to 50 °C |
| Product weight | 165 g |
| Type of mounting | With accessories |
| Pneumatic connection, port 1 | G1/4 |
| Pneumatic connection, port 2 | G1/4 |
| Note on materials | RoHS compliant |
| Material underneath cover | PA |
| Material seals | NBR |
| Material rotary knob | POM |
| Material spring | High-alloy stainless steel |
| Material housing | Reinforced PA |
| Material valve stem | POM |
| Weight | 0.195 kg |
| Manufacturer | Festo |
| Hersteller-Nr | MS4-LR-1/4-D6-AG-MPA-F1A-B |
| EAN | 4052568612832 |
| Zolltarifnummer | 84811099 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Thread | G 1/4 |
| Size BG | 4 |
| Control range max. [bar] | 7 |
| Seal material | NBR |
| Medium | Compressed air, neutral gases |
| Flow rate [l/min] | 1800 |
| Betriebsdruck max [bar] | 10 |
| Pneumatic connection | G1/4 |
| Temperature (max.) | 50 |
