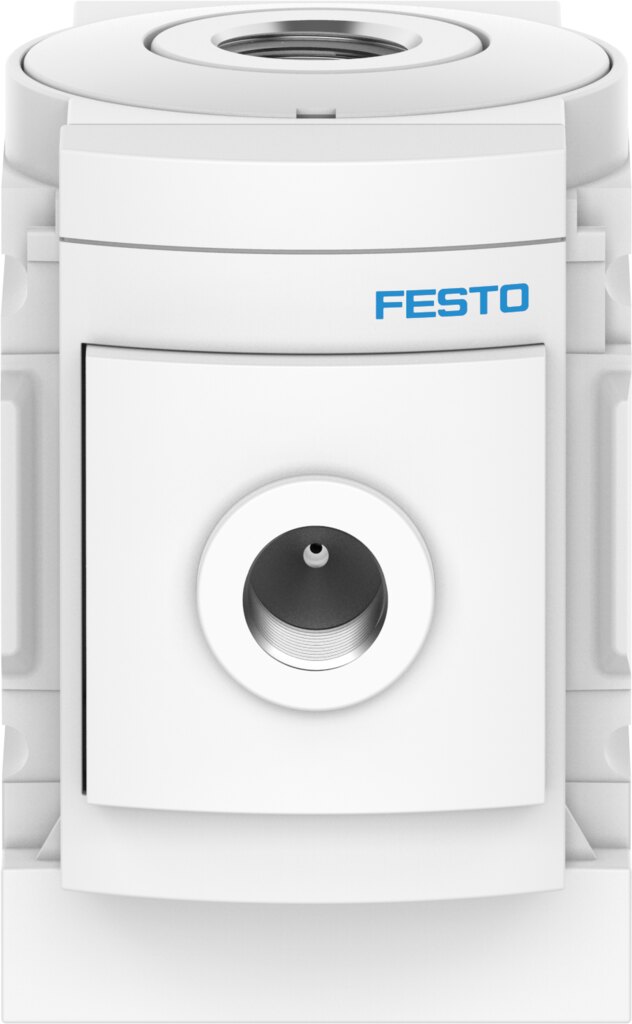

Branching module G1/4, 4 ports MS4-FRM-1/4-A8-F1A - Festo 8183570
The MS4-FRM-1/4-A8-F1A branching module taps compressed air within an MS4 service unit combination, for example upstream of the lubricator. Main flow reaches 4600 l/min, operating pressure up to 14 bar.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The Festo MS4-FRM-1/4-A8-F1A provides additional outlets, 4 ports G1/4 in total.
At a glance
- 4600 l/min in main flow direction
- Upper outlet 1500 l/min, lower 1500 l/min
- Operating pressure 0 to 14 bar
- Media temperature -10 to 60 °C
- Corrosion resistance class CRC 2
Applications
The MS4-FRM-1/4-A8-F1A supplies sub-circuits with unlubricated compressed air while the main flow continues to the next station.
Technical data
| Type | MS4-FRM-1/4-A8-F1A |
|---|---|
| Festo part number | 8183570 |
| Mounting position | Any |
| Design | Branching module |
| Operating pressure | 0 to 14 bar |
| Standard nominal flow rate in main flow direction 1 to 2 | 4600 l/min |
| Standard nominal flow rate, outlet upwards | 1500 l/min |
| Standard nominal flow rate, outlet downwards | 1500 l/min |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4], inert gas |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Suitability for the production of Li-ion batteries | Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Storage temperature | -10 to 60 °C |
| Suitable for use with food | See supplementary material information |
| Media temperature | -10 to 60 °C |
| Ambient temperature | -10 to 60 °C |
| Product weight | 165 g |
| Pneumatic connection, port 1 | G1/4 |
| Pneumatic connection, port 2 | G1/4 |
| Pneumatic connection, port 3 | G1/4 |
| Pneumatic connection, port 4 | G1/4 |
| Note on materials | RoHS compliant |
| Material housing | Die-cast aluminium |
| Weight | 0.22 kg |
| Manufacturer | Festo |
| Hersteller-Nr | MS4-FRM-1/4-A8-F1A |
| EAN | 4052568637569 |
| Zolltarifnummer | 76169910 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Thread | G 1/4 |
| Housing material | Die-cast aluminium |
| Medium | Compressed air, neutral gases |
| Flow rate [l/min] | 4600 |
| Series | MS4 |
| Betriebsdruck max [bar] | 14 |
| Pneumatic connection | G1/4 |
| Temperaturbereich | -10-60 °C |
| Temperature (max.) | 60 |
