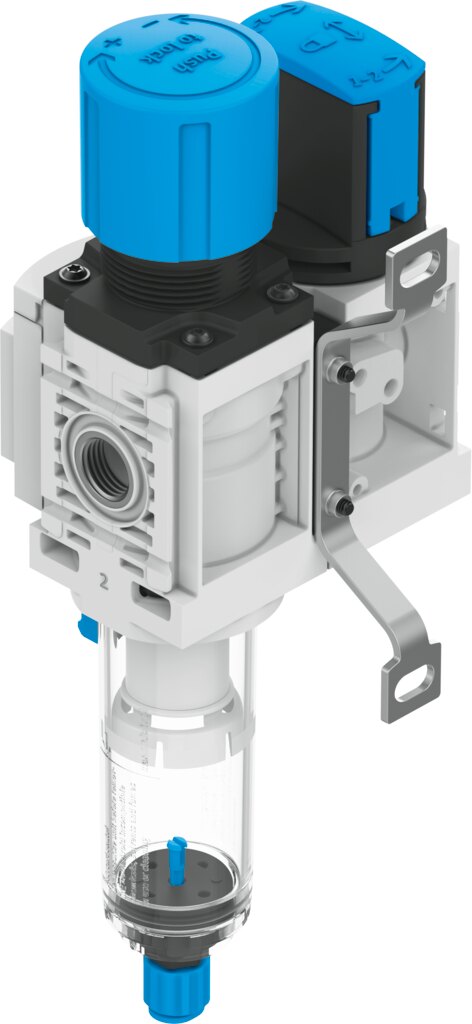

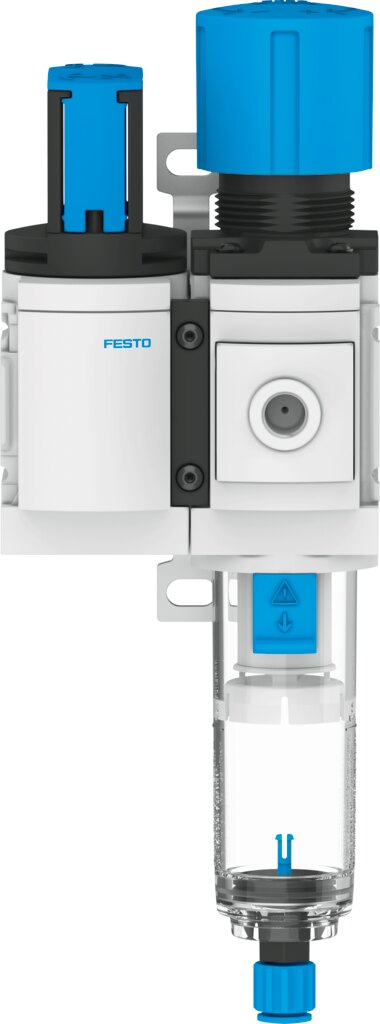

Service unit filter 5 µm, 1500 l/min MS4-EM1FR-1/4-D6-C-P-M-A8-WPE-B - Festo 8130947

Festo ✓ Original product Brand new

The MS4-EM1FR-1/4-D6-C-P-M-A8-WPE-B service unit combines the switch-on function and a filter of 5 µm in one assembly. Standard nominal flow rate is 1500 l/min, 1400 l/min when exhausting. Operating pressure 1 to 10 bar.

Net
€126.15
excl. VAT
Item FES-8130947
Manufacturer no. MS4-EM1FR-1/4-D6-C-P-M-A8-WPE-B
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The Festo MS4-EM1FR-1/4-D6-C-P-M-A8-WPE-B combines the basic compressed air preparation functions of the MS4 series, condensate drain manual, rotating, pressure indicator prepared for G1/8.

Why it pays off

  • 1500 l/min standard nominal flow rate to DIN 1343
  • Grade of filtration 5 µm
  • Exhaust at 1400 l/min from 6 to 0 bar
  • Operating pressure 1 to 10 bar
  • Media temperature -5 to 50 °C
  • Corrosion resistance class CRC 1

Applications

The MS4-EM1FR-1/4-D6-C-P-M-A8-WPE-B is fitted as a complete unit in the supply line of a machine and saves assembling individual modules. Mounting: with mounting bracket, with accessories.

Technical data

TypeMS4-EM1FR-1/4-D6-C-P-M-A8-WPE-B
Festo part number8130947
Size4
SeriesMS
Mounting positionVertical ±5°
Grade of filtration5 µm
Condensate drainManual, rotating
Pressure indicatorPrepared for G1/8
Operating pressure1 to 10 bar
Standard flow rate, exhaust from 6 to 0 bar1400 l/min
Standard nominal flow rate (standardised to DIN 1343)1500 l/min
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumCompatibility with ester oil not guaranteed
Corrosion resistance class CRC1 - Low corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Storage temperature-5 to 50 °C
Media temperature-5 to 50 °C
Ambient temperature-5 to 50 °C
Product weight470 g
Type of mountingWith mounting bracket, with accessories
Note on materialsRoHS compliant
Material filterPE
Material bowlPC
Weight0.48 kg
ManufacturerFesto
Hersteller-NrMS4-EM1FR-1/4-D6-C-P-M-A8-WPE-B
EAN4052568609238
Zolltarifnummer84811005
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Size BG4
MediumCompressed air
Flow rate [l/min]1500
Filter grade [µm]5
Betriebsdruck max [bar]10
Temperature (max.)50
