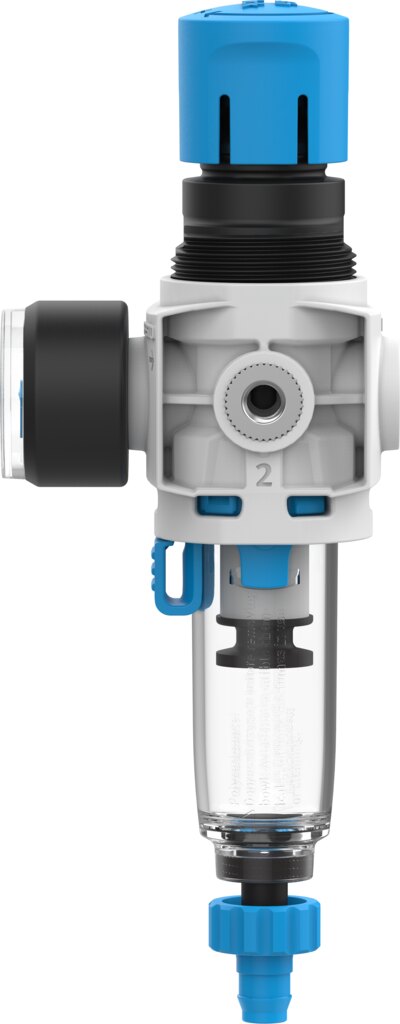

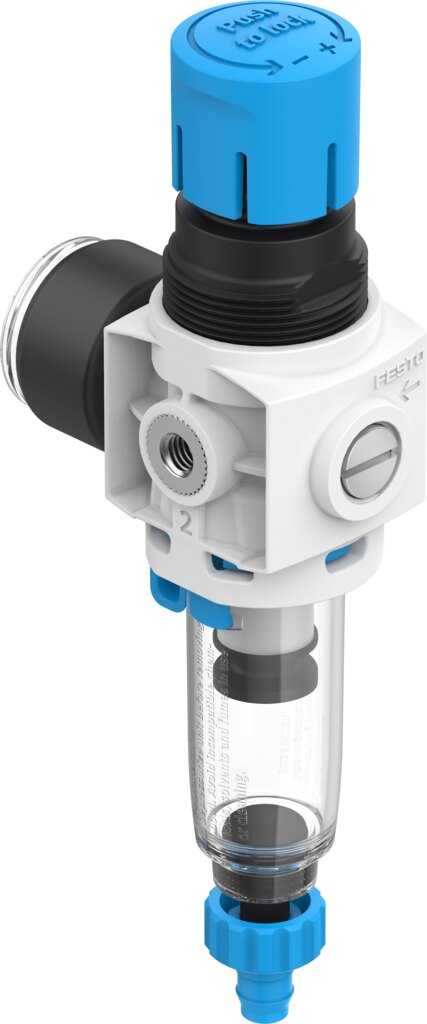

Filter regulator 0.5 to 7 bar M5 5 µm with pressure gauge MS2-LFR-M5-D6-C-P-M-AR-BAR-B - Festo 8086641
For cleanroom systems and small consumers the MS2-LFR-M5-D6-C-P-M-AR-BAR-B supplies compressed air filtered to 5 µm at an adjustable 0.5 to 7 bar output pressure. Cleanroom suitability class 6 to ISO 14644-1, constant output pressure with secondary exhaust and reverse flow function.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Festo filter regulator MS2-LFR-M5-D6-C-P-M-AR-BAR-B: pressure regulation range 0.5 to 7 bar, grade of filtration 5 µm, standard nominal flow 140 l/min.
Benefits
- 5 µm grade of filtration, air purity class at output [6:4:4] to ISO 8573-1:2010
- Pressure regulation range 0.5 to 7 bar, max. pressure hysteresis 0.25 bar, input pressure up to 10 bar
- Standard nominal flow rate 140 l/min to DIN 1343
- Manual rotary condensate drain, bowl for max. 3 ml of condensate

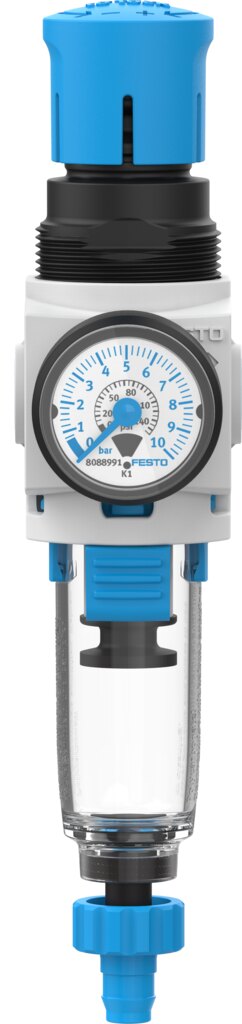

- Integrated pressure gauge, pressure readable at the unit
- Rotary knob with detent, set pressure stays fixed
Applications
The MS2-LFR-M5-D6-C-P-M-AR-BAR-B suits small consumers and individual devices needing 140 l/min. Port M5 on both sides, ambient temperature -5 to 50 °C. The MS2-LFR-M5-D6-C-P-M-AR-BAR-B is mounted with accessories, mounting position vertical ± 5°.
Technical data
| Feature | Value |
|---|---|
| Type | MS2-LFR-M5-D6-C-P-M-AR-BAR-B |
| Festo part number | 8086641 |
| Size | 2 |
| Series | MS |
| Actuator lock | rotary knob with detent |
| Mounting position | vertical ± 5° |
| Grade of filtration | 5 µm |
| Condensate drain | manual, rotating |
| Design | filter regulator with pressure gauge |
| Max. condensate volume | 3 ml |

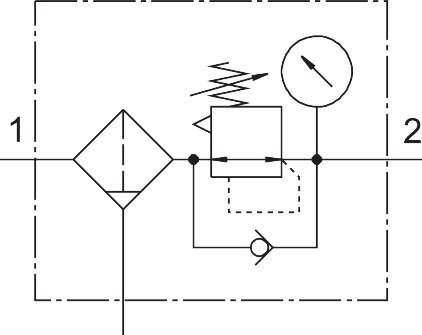

| Regulator function | output pressure constant, with secondary exhaust, with reverse flow function |
| Displayable unit(s) | bar, psi |
| Pressure gauge | with pressure gauge |
| Operating pressure | 1 to 10 bar |
| Pressure regulation range | 0.5 to 7 bar |
| Max. pressure hysteresis | 0.25 bar |
| Standard nominal flow rate | 140 l/min (to DIN 1343) |
| Operating medium | compressed air to ISO 8573-1:2010 [7:4:4], inert gases |
| Corrosion resistance class CRC | 1 - low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom suitability (measured to ISO 14644-14) | class 6 to ISO 14644-1 |
| Storage temperature | -5 to 50 °C |
| Air purity class at output | compressed air to ISO 8573-1:2010 [6:4:4] |
| Medium temperature | -5 to 50 °C |
| Ambient temperature | -5 to 50 °C |
| Product weight | 46.8 g |
| Type of mounting | with accessories |
| Pneumatic connection, port 1 | M5 |
| Pneumatic connection, port 2 | M5 |
| Note on materials | RoHS-compliant |
| Seal material | NBR |
| Rotary knob material | POM |
| Spring material | high-alloy steel |
| Filter material | PE |
| Housing material | reinforced PA |
| Diaphragm material | NBR |
| Bowl material | PC |
| Separating plate material | POM |
| Valve stem material | wrought aluminium alloy, NBR |
| Weight | 0.055 kg |
| Manufacturer | Festo |
| Hersteller-Nr | MS2-LFR-M5-D6-C-P-M-AR-BAR-B |
| EAN | 4052568451493 |
| Zolltarifnummer | 84811005 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | PA |
| Thread | M5 |
| Size BG | 2 |
| Control range max. [bar] | 7 |
| Medium | Compressed air, neutral gases |
| Flow rate [l/min] | 140 |
| Filter grade [µm] | 5 |
| Druckregelbereich [bar] | 0,5-7 |
| Medientemperatur [°C] | -5 bis 50 |
| Betriebsdruck max [bar] | 10 |
| Pneumatic connection | M5 |
| Temperature (max.) | 50 |
