Solenoid valve MFH-5-1/8-NPT - Festo 9765
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data

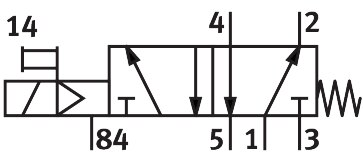

| Valve function | 5/2-way, single solenoid |
|---|---|
| Type of actuation | Electrical |
| Construction width | 26 mm |
| Standard nominal flow rate (standardised to DIN 1343) | 500 l/min |
| pneumatic working port | 1/8 NPT |
| Operating voltage | Via solenoid coil, must be ordered separately |
| Operating pressure | 1.8 ... 8 bar |
| Design | Poppet seat |
| Type of reset | Mechanical spring |
| Approval | c UL us - Recognised (Oil) |
| Degree of protection | IP65 |
| Nominal size | 5 mm |
| Grid dimension | 27 mm |
| Exhaust-air function | Can be throttled |
| Sealing principle | Soft |
| Mounting position | Any |
| Manual override | Detenting |
| Type of piloting | Piloted |
| Flow direction | Non-reversible |
| lap | Underlap |
| Switching time off | 36 ms |
| Switching time on | 8 ms |
| Max. positive test pulse with 0 signal | 2200 µs |
| Max. negative test pulse with 1 signal | 3700 µs |
| Characteristic coil data | See solenoid coil, to be ordered separately |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Storage temperature | -20 ... 60 °C |
| Media temperature | -10 ... 60 °C |
| Ambient temperature | -5 ... 40 °C |
| Product weight | 270 g |
| Electrical connection | Via F coil, to be ordered separately |
| Type of mounting | On PR rail, With through-hole |
| Pilot exhaust port 84 | M5 |
| Pilot air port 12 | 1/8 NPT |
| Pneumatic connection, port 1 | 1/8 NPT |
| Pneumatic connection, port 2 | 1/8 NPT |
| Pneumatic connection, port 3 | 1/8 NPT |
| Pneumatic connection, port 4 | 1/8 NPT |
| Pneumatic connection, port 5 | 1/8 NPT |
| Material seals | NBR |
| Material housing | Die-cast aluminium |
| Weight | 0.2 kg |
| Manufacturer | Festo |
| Hersteller-Nr | MFH-5-1/8-NPT |
| EAN | 4052568303471 |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
