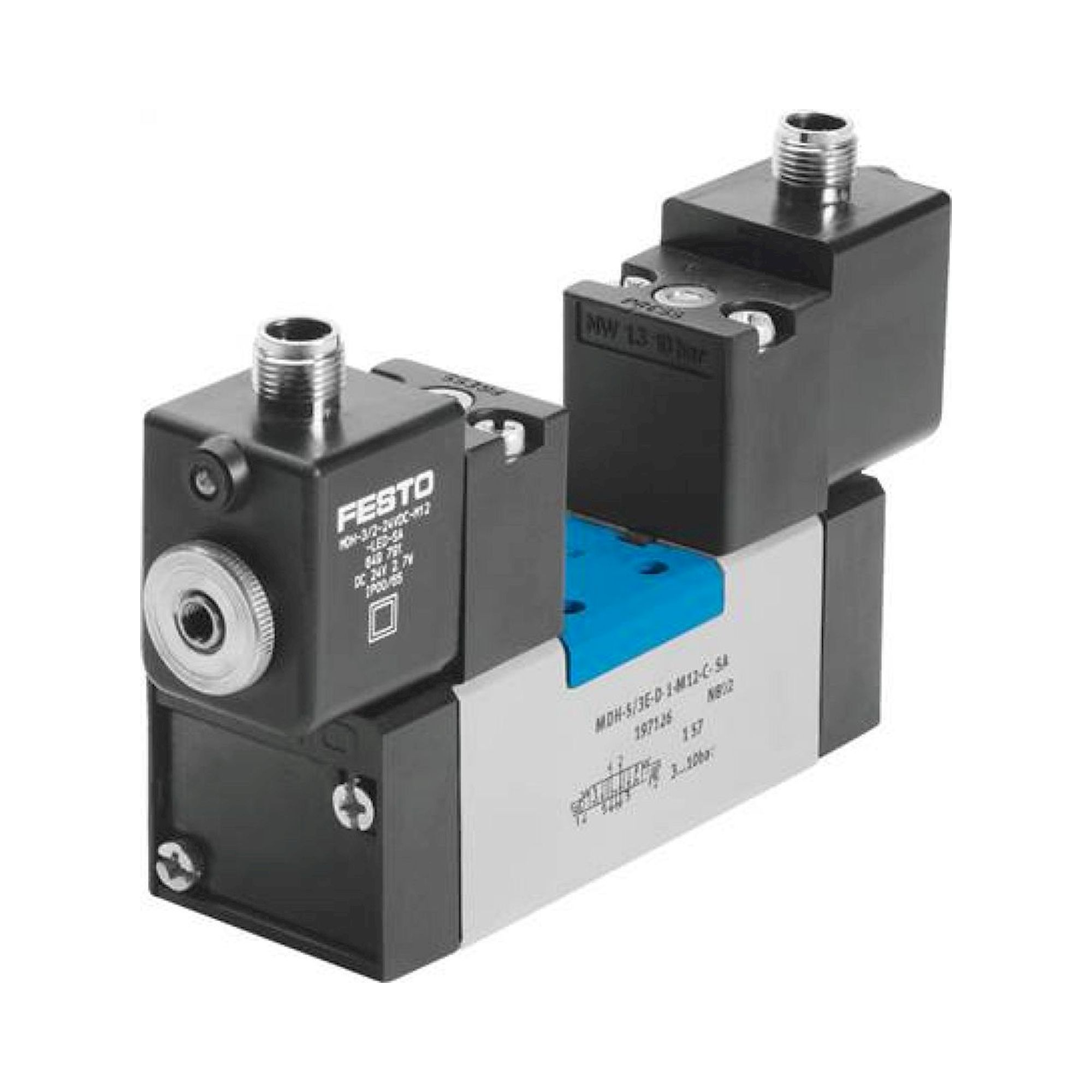

Solenoid valve 5/3-way exhausted centre ISO 5599-1 size 1 MDH-5/3E-D-1-C - Festo 43467
The Festo MDH-5/3E-D-1-C exhausts both working ports in the mid-position so the actuator is depressurised. Designed for ISO 5599-1 sub-bases, size 1, it delivers 1200 l/min standard nominal flow rate at nominal size 8 mm. Design: piston spool, piloted control.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Built for ISO 5599-1 sub-bases, size 1, the MDH-5/3E-D-1-C delivers 1200 l/min standard nominal flow rate at nominal size 8 mm.
Benefits
- Port pattern for ISO 5599-1 sub-bases, size 1 (width 42 mm, grid dimension 43 mm)
- Standard nominal flow rate 1200 l/min at nominal size 8 mm
- Piloted control, piston spool design
Applications
Functionally, the valve exhausts both working ports in the mid-position so the actuator is depressurised. Typical applications of the MDH-5/3E-D-1-C: actuators that must be free of force in the mid-position. The values in the table are derived from the order code.
Technical data
| Feature | Value |
|---|---|
| Type | MDH-5/3E-D-1-C |
| Valve function | 5/3-way, exhausted |
| Type of actuation | Electrical |
| Construction width | 42 mm |
| Standard nominal flow rate | 1200 l/min |
| Design | Piston spool |
| Nominal size | 8 mm |
| Grid dimension | 43 mm |
| Conforms to standard | ISO 5599-1 |
| Type of piloting | Piloted |
| Pneumatic connection, port 1 | Sub-base size 1 to ISO 5599-1 |
| Pneumatic connection, port 2 | Sub-base size 1 to ISO 5599-1 |
| Pneumatic connection, port 3 | Sub-base size 1 to ISO 5599-1 |
| Pneumatic connection, port 4 | Sub-base size 1 to ISO 5599-1 |
| Pneumatic connection, port 5 | Sub-base size 1 to ISO 5599-1 |
| Weight | 0.7 kg |
| Manufacturer | Festo |
| Hersteller-Nr | MDH-5/3E-D-1-C |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Nominal size DN [mm] | 8 |
| Function | 5/3 exhausted |
| Flow rate [l/min] | 1200 |
| Actuation type | Electrical |
| Norm | ISO 5599-1 |
| Series | MDH |
