In service the replacement sleeve replaces the worn sleeve in a pinch valve and restores a tight shut-off. The decisive figure is the nominal size DN 10. Dimensions DN 10, made of EPDM.
Replacement sleeve for pinch valves, DN 10, EPDM, -10 to +120 °C
FLUIDICS EQUIPMENT
Original product
Net price (excl. VAT)
€62.40
Item
FL-307738
Manufacturer no.
QVM 38 EP REP
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.QVM 38 EP REP
EAN4050571562434
Customs tariff number84818087
ConditionNew
Artikel
FL-307738
Frequently Bought Together
-
This Item:
€62.40
-

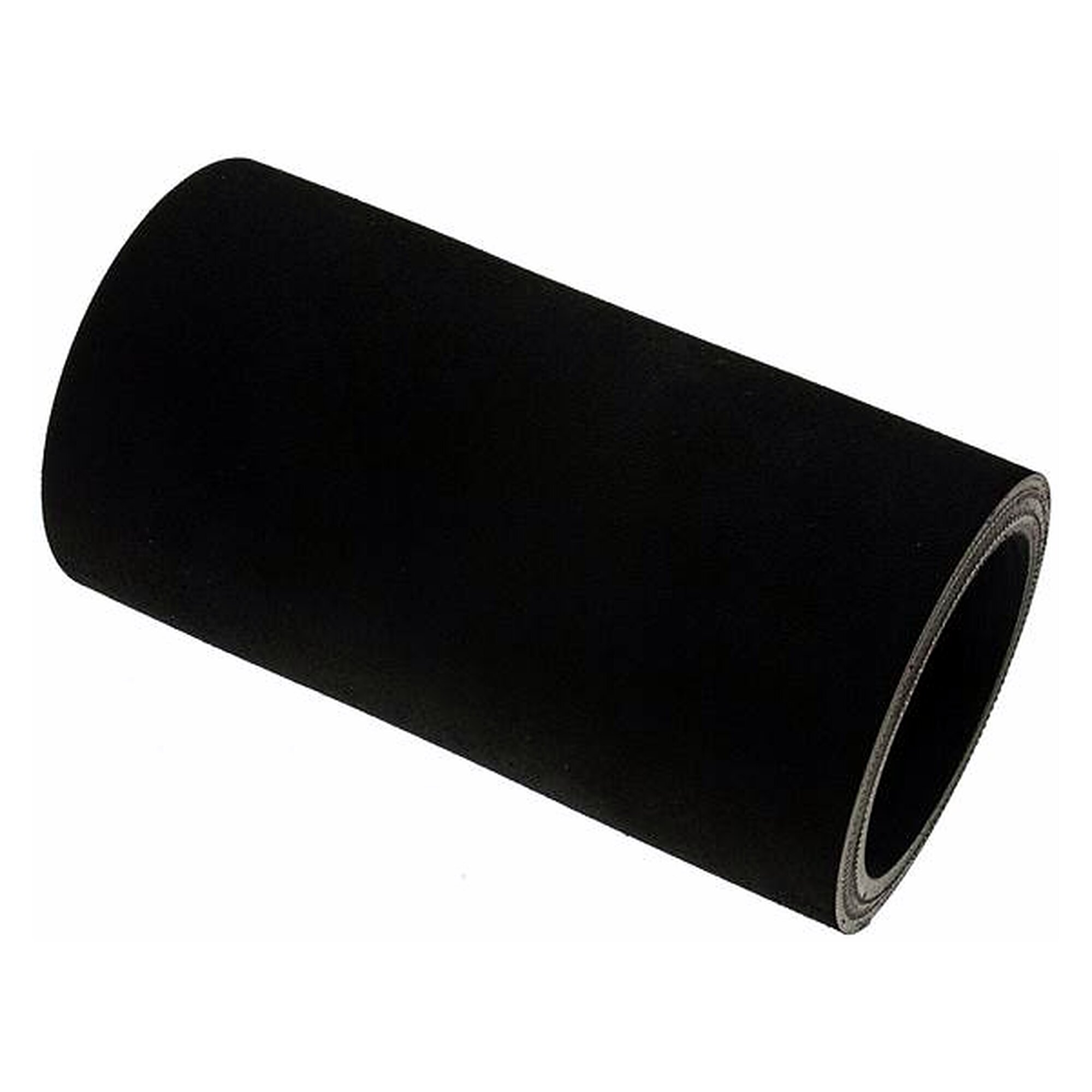

Replacement sleeve for pinch valves, DN 65, abrasion resistant natural rubber
€211.05
-
Pneumatic pinch valve, G 1-1/2", stainless steel, sleeve abrasion resistant natural rubber, L 200 mm
€1,597.61
Total price
This replacement sleeve replaces the worn sleeve in a pinch valve and restores a tight shut-off. The data sheet gives the nominal size DN 10. The stated material is EPDM.
Benefits
- Matches nominal size DN 10 of the pinch valve.
- Material EPDM for contact with the medium.
- Temperature range -10 to +120 °C as per the data sheet.
- The sleeve is the only wearing part of the valve and can be replaced on its own.
Technical data
| Material | EPDM |
|---|---|
| Version | replacement sleeve made of EPDM |
| Nominal size DN [mm] | 10 |
| Temperature range [°C] | -10 to +120 |
| Sleeve material | EPDM |
| Use | spare part for pneumatic pinch valves |
Applications
In maintenance the DN 10 sleeve replaces the worn inner part while the body stays in the pipe run.
| Weight | 0.011000 |
|---|---|
| Manufacturer | Fluidics equipment |
| Hersteller-Nr | QVM 38 EP REP |
| EAN | 4050571562434 |
| Zolltarifnummer | 84818087 |
| GPSR Herstellerdaten | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Ausführung | Ersatzmanschette aus EPDM |
| Material | EPDM |
| Temperaturbereich | -10-120 °C |
