Filter regulator LFR-N1/2-D-16-O-MIDI-T18-EX4 - Festo 4772779
Net
excl. VAT
€137.39
Item
FES-4772779
Manufacturer no.
LFR-N1/2-D-16-O-MIDI-T18-EX4
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Size | Midi |
|---|---|
| Series | D |
| Actuator lock | Rotary knob with detent |
| Mounting position | Vertical +/-5° |
| Grade of filtration | 40 µm |
| Condensate drain | Manual, rotating |

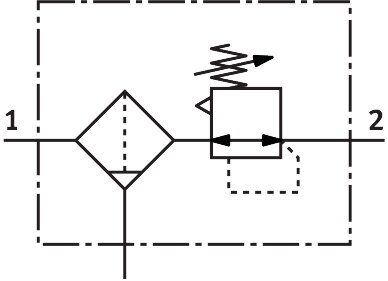

| Design | Filter regulator without pressure gauge |
| Max. condensate volume | 42 ml |
| Bowl guard | Integrated as metal bowl |
| Pressure gauge (ANALOG) or Pressure display (DIGITAL) | Prepared for G1/4 |
| Operating pressure | 1 ... 20 bar |
| Pressure regulation range | 0.5 ... 16 bar |
| Max. pressure hysteresis | 0.02 MPa |
| Standard nominal flow rate (standardised to DIN 1343) | 1970 l/min |
| CE mark (see declaration of conformity) | To EU Explosion Protection Directive (ATEX) |
| UKCA marking (see declaration of conformity) | To UK EX instructions |
| Explosion protection certification outside the EU | EPL Gb (GB) |
| Explosion protection | Zone 1 (ATEX), Zone 1 (UKEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 21 (UKEX), Zone 22 (ATEX) |
| ATEX category gas | II 2G |
| ATEX category dust | II 2D |
| Explosion ignition protection type for gas | Ex h IIC T6 Gb X |
| Explosion ignition protection type for dust | Ex h IIIC T85°C Db X |
| Explosion ambient temperature | -20°C <= Ta <= +80°C |
| Operating medium | Inert gas |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 3 - high corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Storage temperature | -20 ... 80 °C |
| Air purity class at output | Compressed air to ISO 8573-1:2010 [7:8:4], Inert gas |
| Media temperature | -20 ... 80 °C |
| Ambient temperature | -20 ... 80 °C |
| Product weight | 1400 g |
| Type of mounting | With accessories |
| Pneumatic connection, port 1 | 1/2 NPT |
| Pneumatic connection, port 2 | 1/2 NPT |
| Note on materials | RoHS compliant |
| Material housing | Die-cast zinc |
| Material bowl | Wrought aluminium alloy |
| Weight | 1.6 kg |
| Manufacturer | Festo |
| Hersteller-Nr | LFR-N1/2-D-16-O-MIDI-T18-EX4 |
| EAN | 4052568418731 |
| Zolltarifnummer | 84811005 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
